Power Window Motor
Power Window Motor

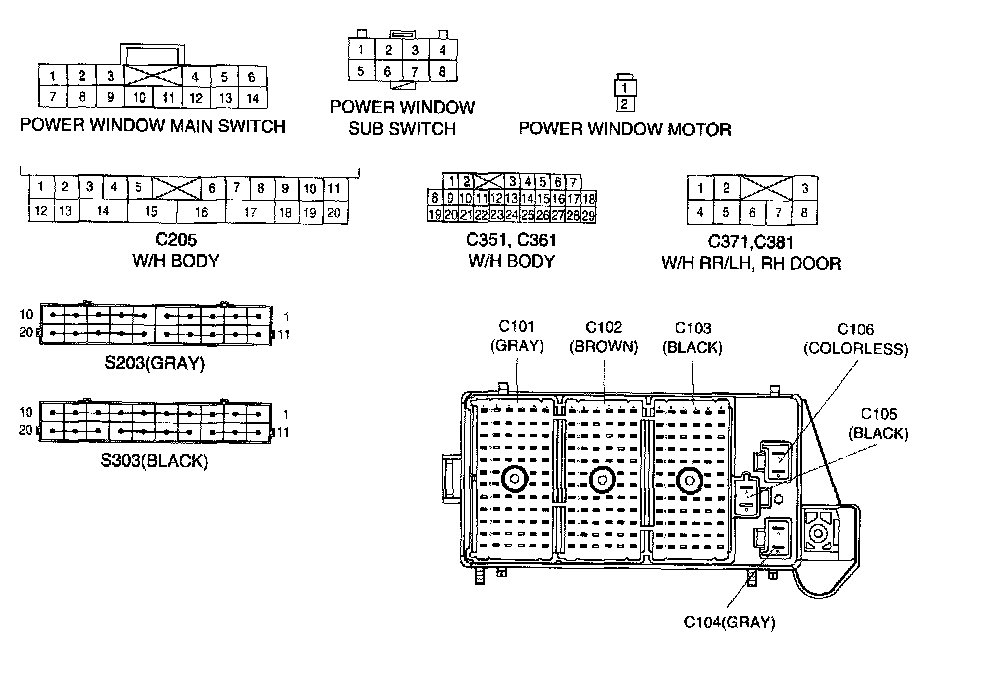

Connector Identification Symbol & Pin Number Position:
Splice Pack - S203 (Gray):

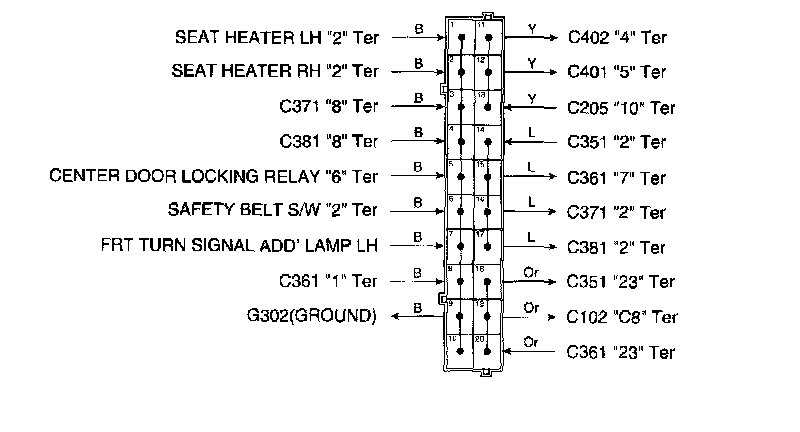

Splice Pack - S303 (Black) - N/B & H/B:

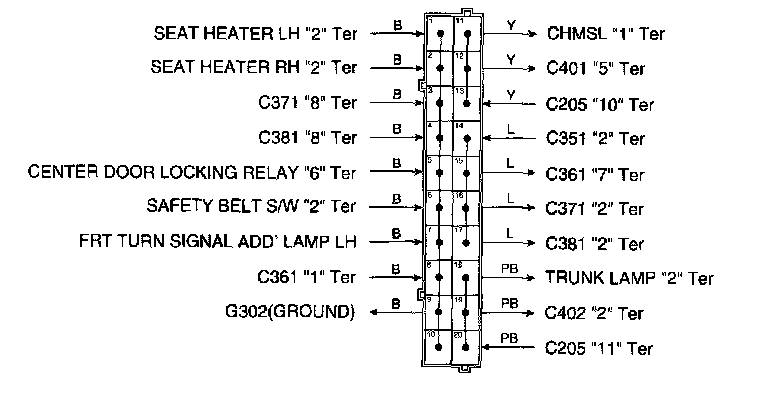

Splice Pack - S303 (Black) - S/W:
