Seat Temperature Element
Seat Temperature Element
Connector Identification Symbol & Pin Number Position:

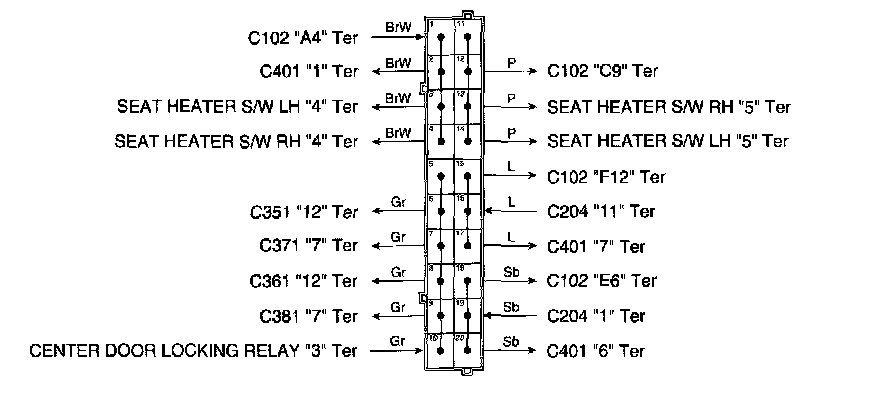

Splice Pack - S302 (Black) - N/B & H/B:

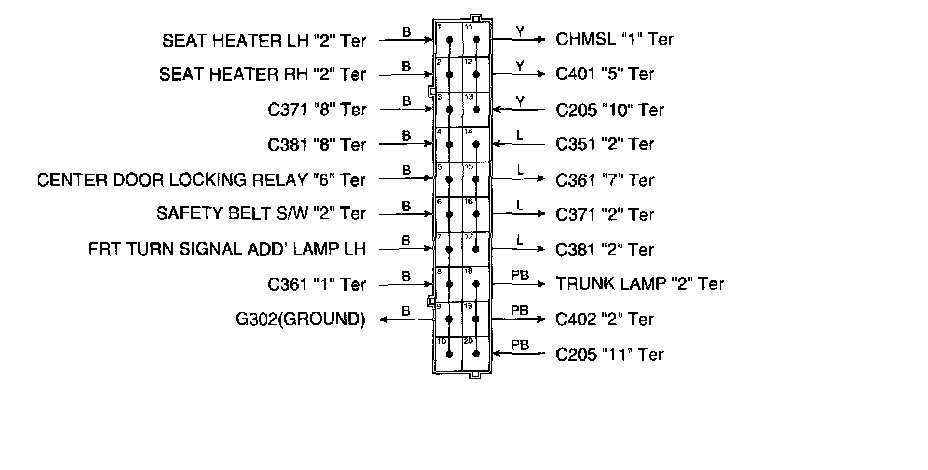

Splice Pack - S303 (Black) - N/B & H/B:
