Antitheft and Alarm Systems
Antitheft and Alarm Systems

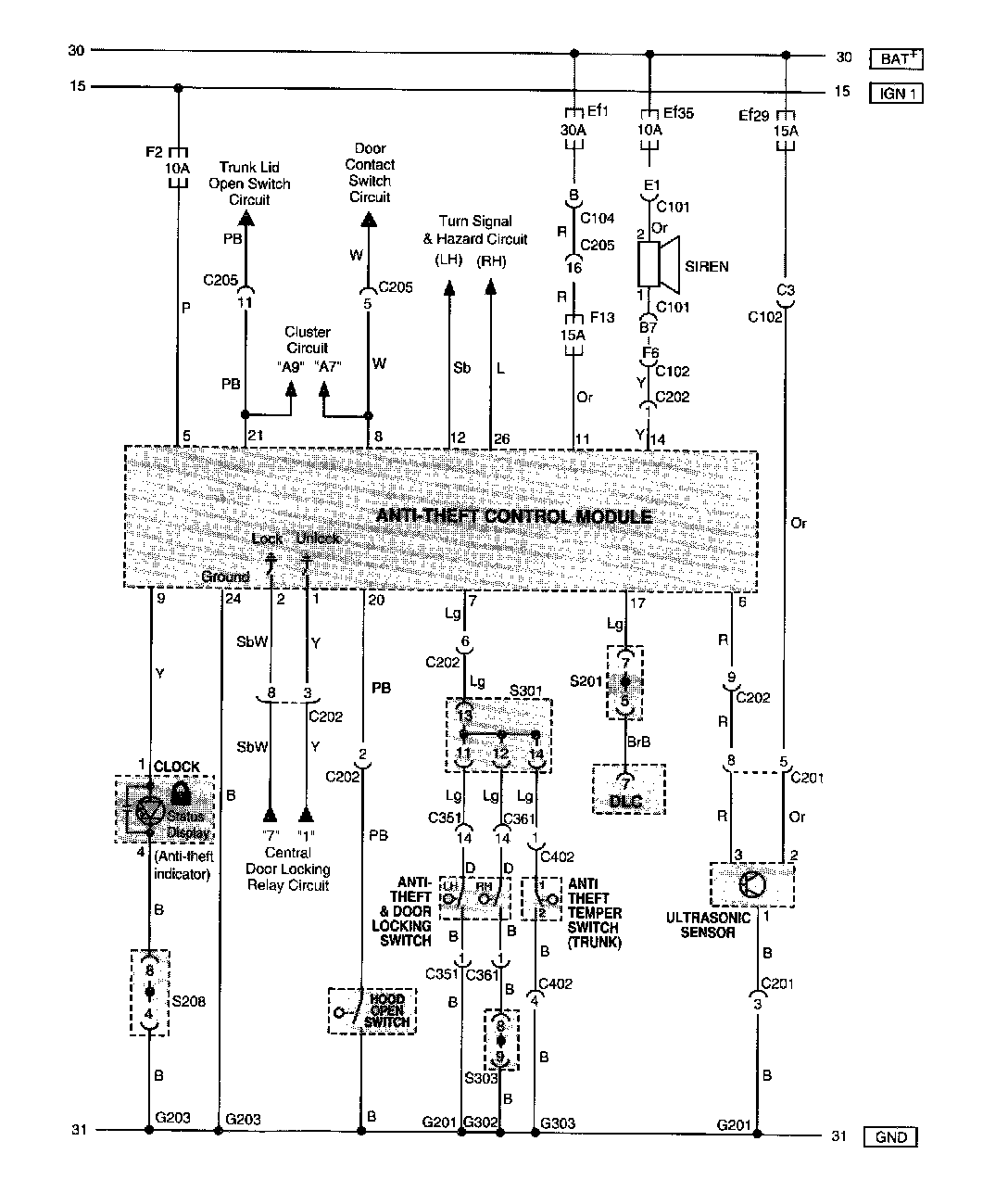

Electrical Wiring Diagram:

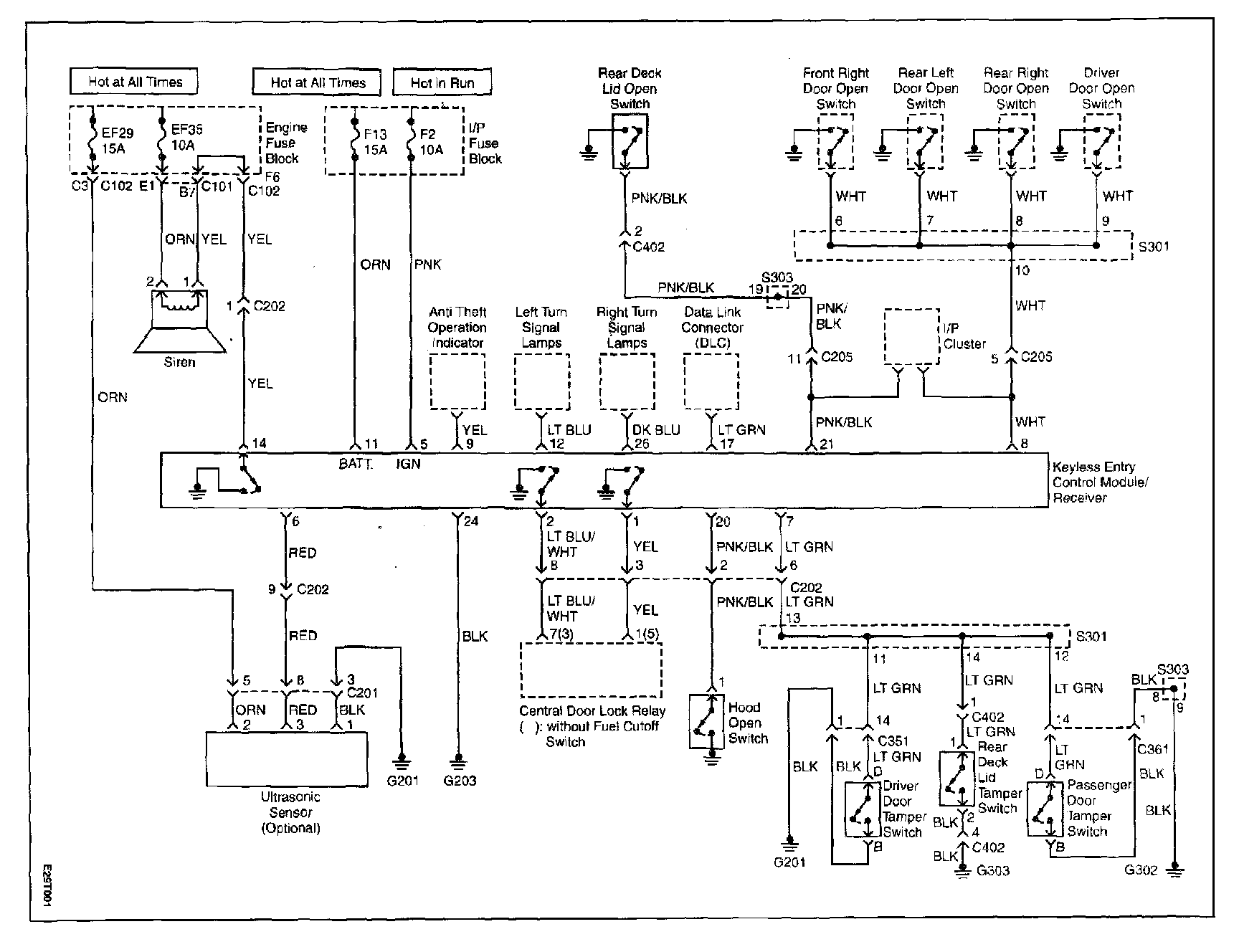

Remote Keyless Entry And Anti-theft System:

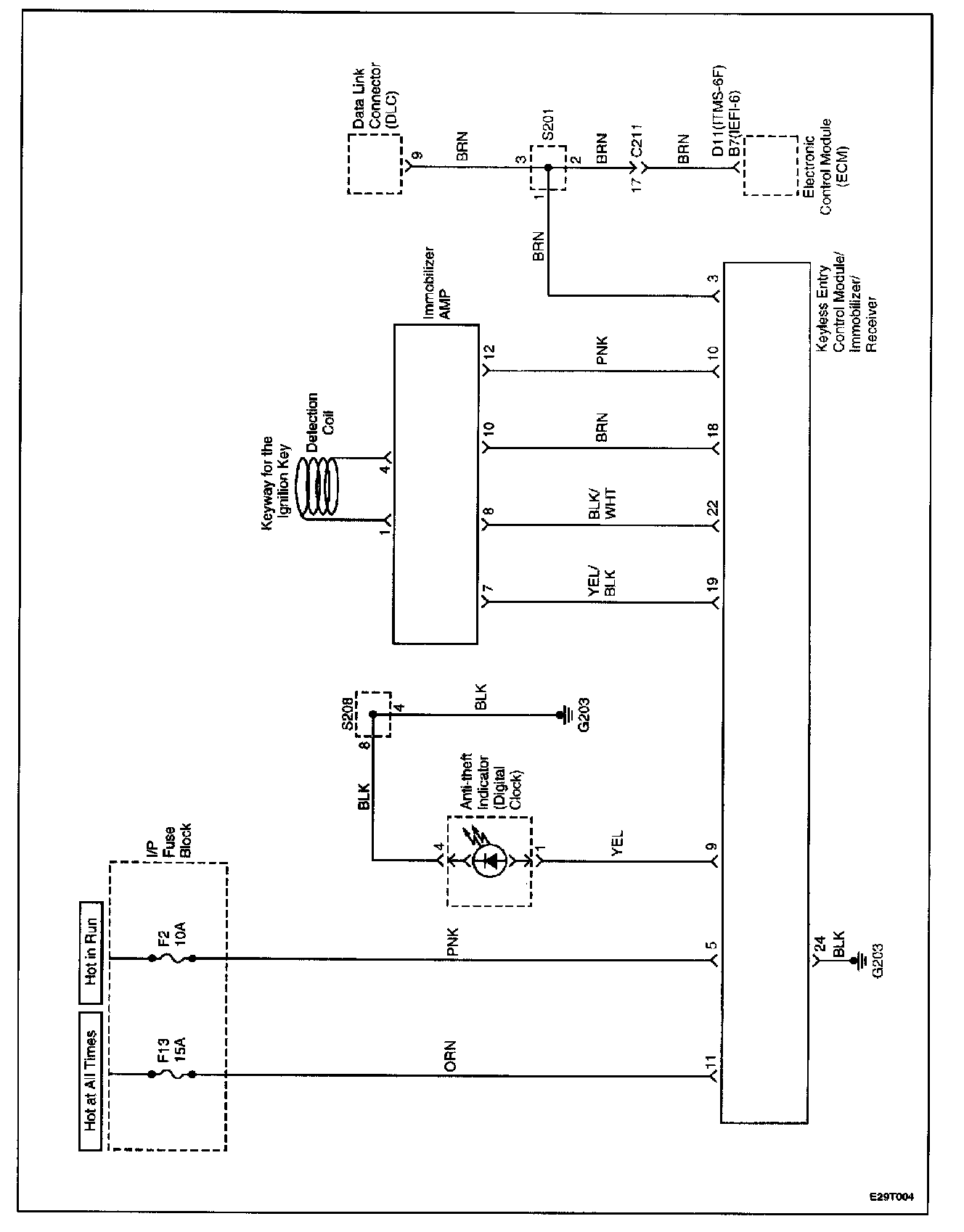

Immobilizer Anti-Theft System:

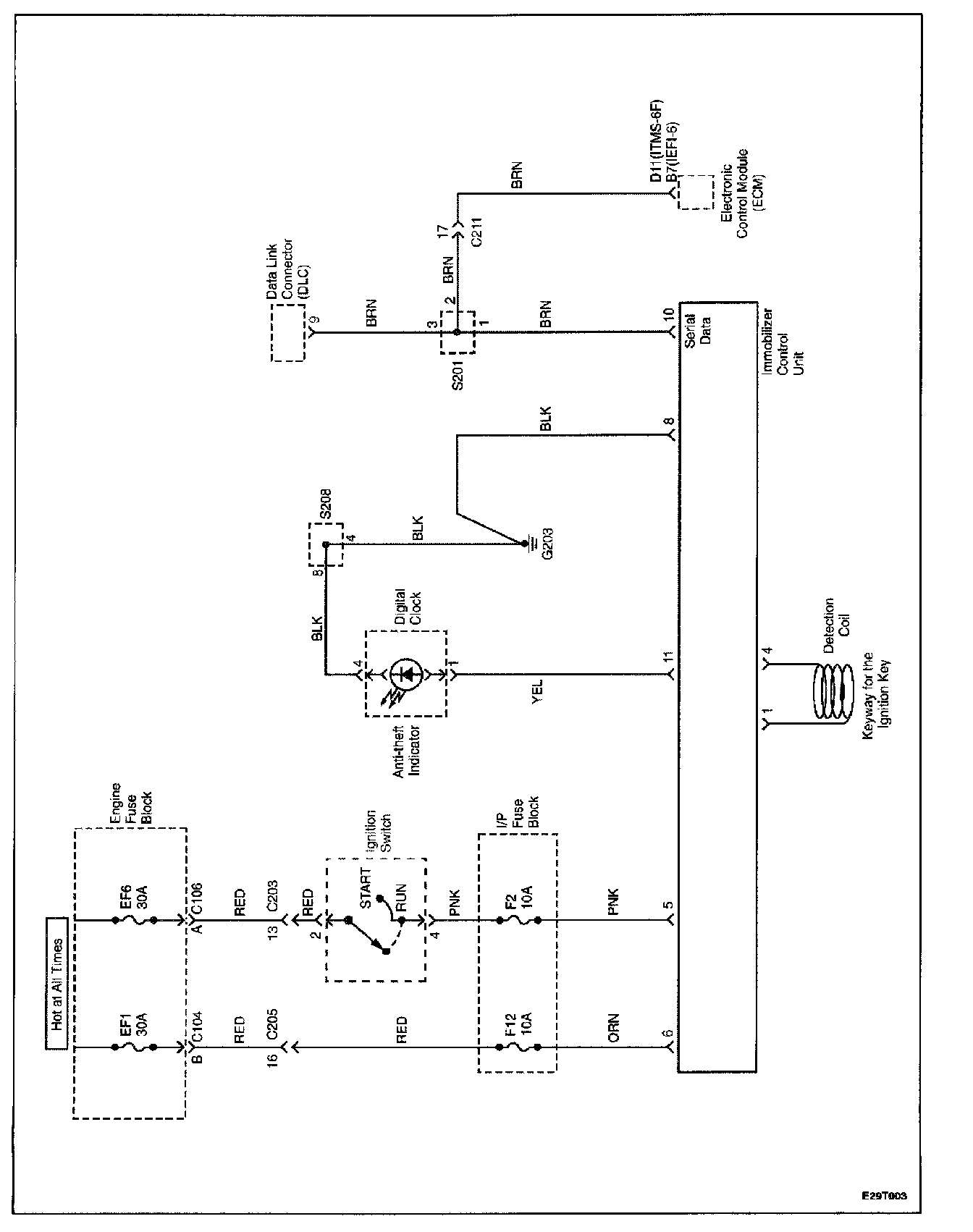

Immobilizer Anti-Theft System:
