Cooling Fan Circuit (W/ Air Conditioner)
Cooling Fan Circuit (W/ Air Conditioner)

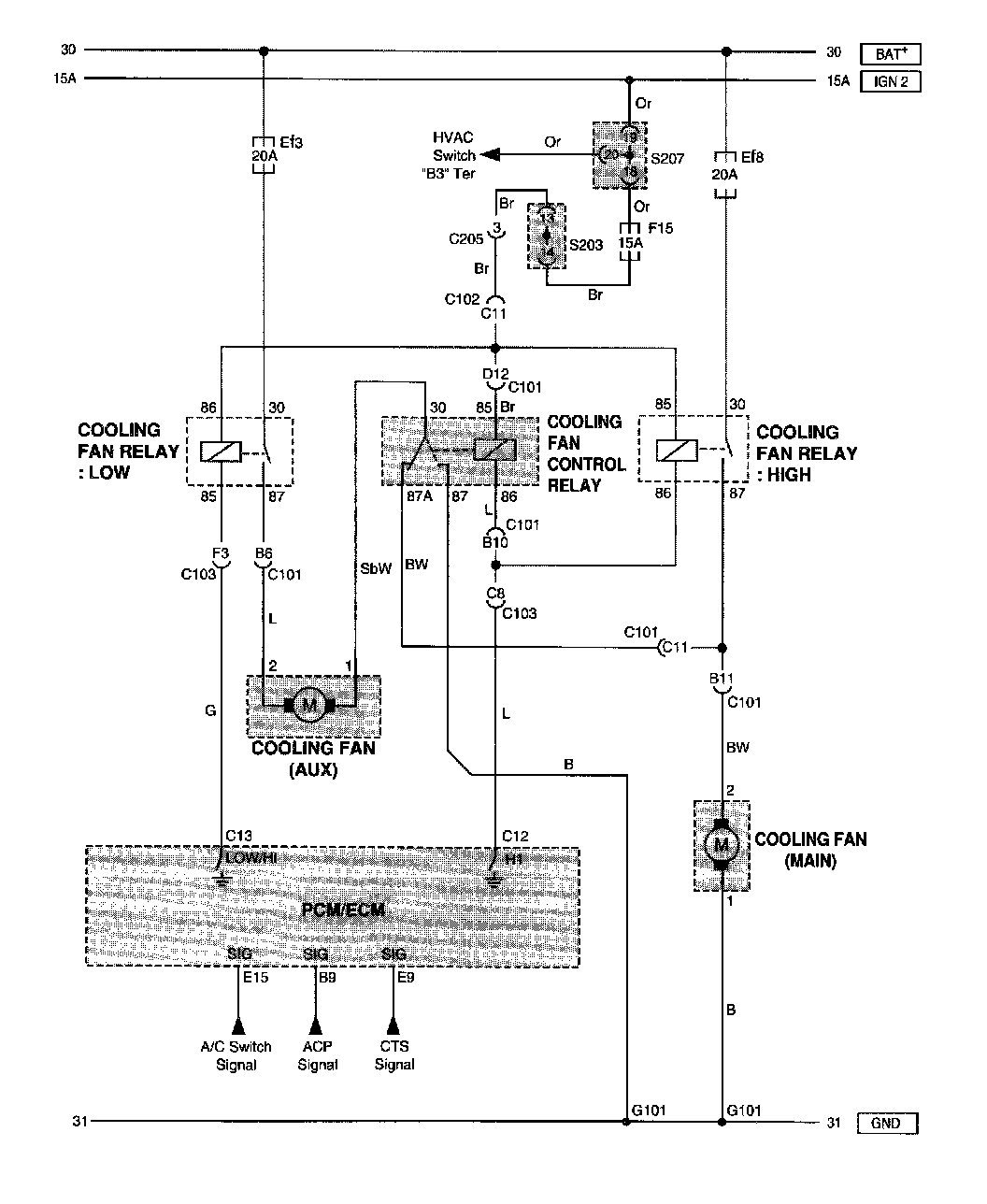

Electrical Wiring Diagram:
