Daewoo
>>
2001
>>
Nubira CDX Wagon L4-2.0L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
Automatic Transmission
Automatic Transmission

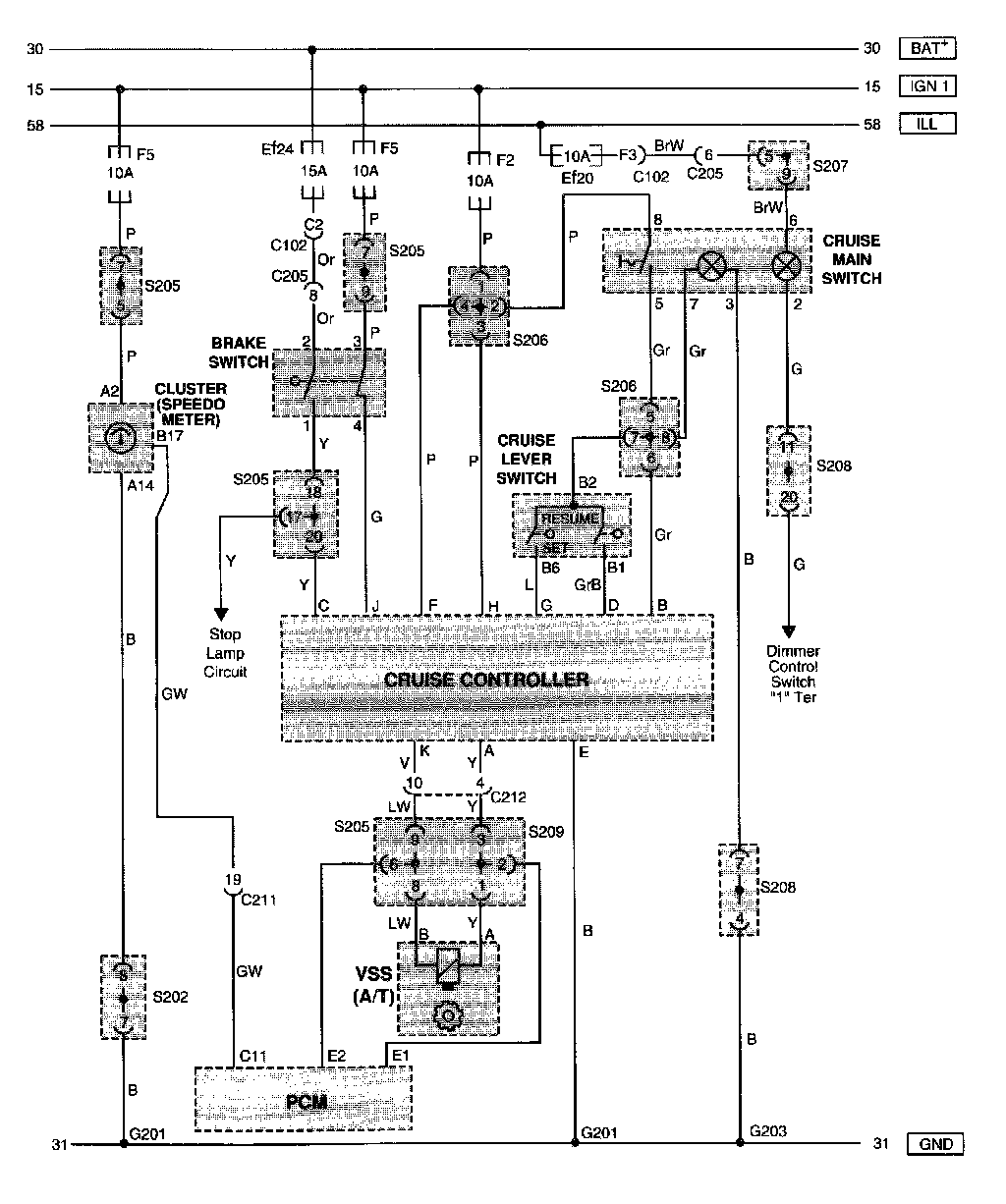

Electrical Wiring Diagram:
