Home >> Daewoo >> 2001 >> Nubira CDX Wagon L4-2.0L DOHC D-TEC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Tail Lamp

Tail Lamp

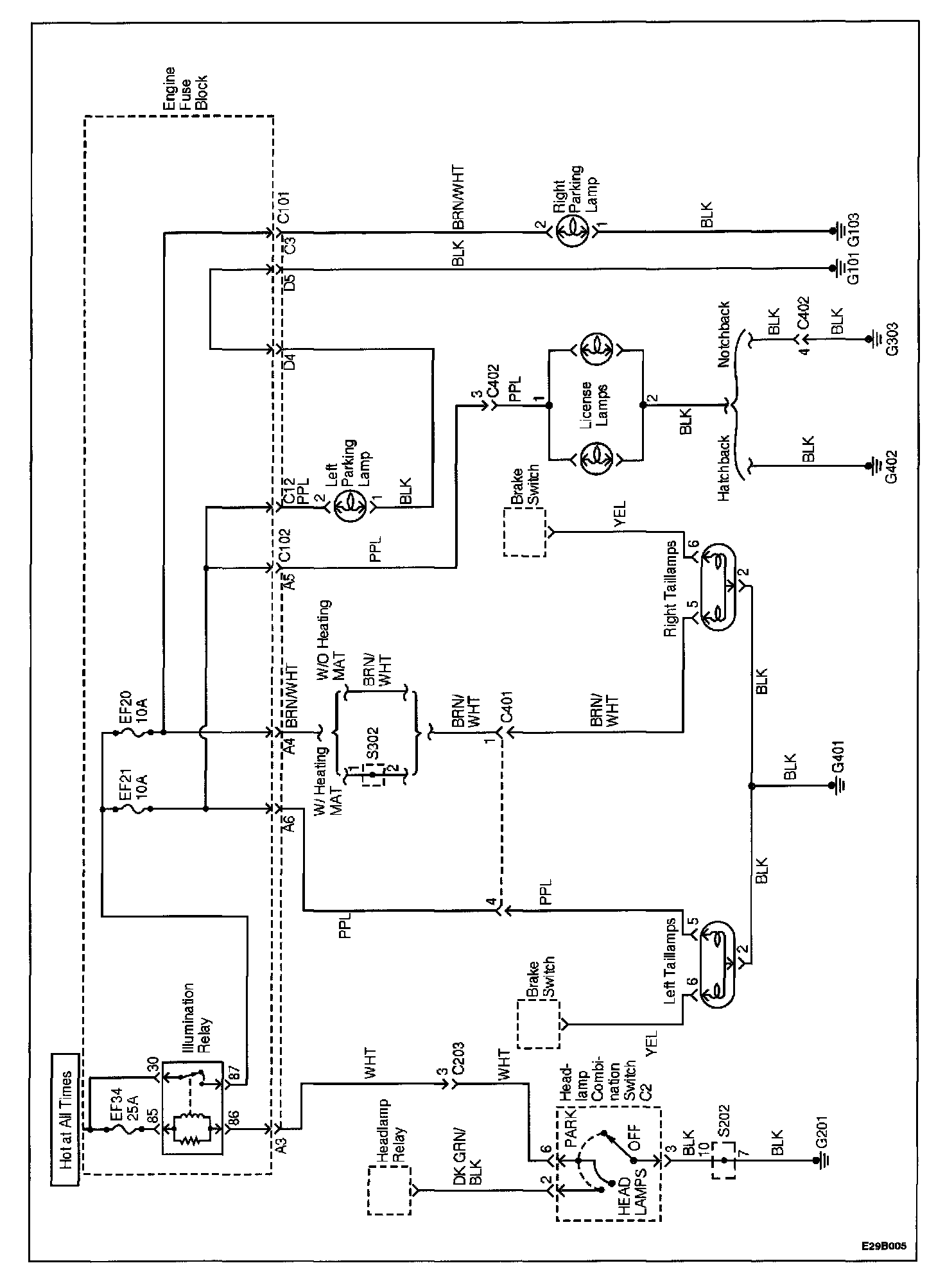

Tail And License Lamps Circuit:
