Nubira CDX Wagon L4-2.0L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
Radio, Stereo, and Compact Disc

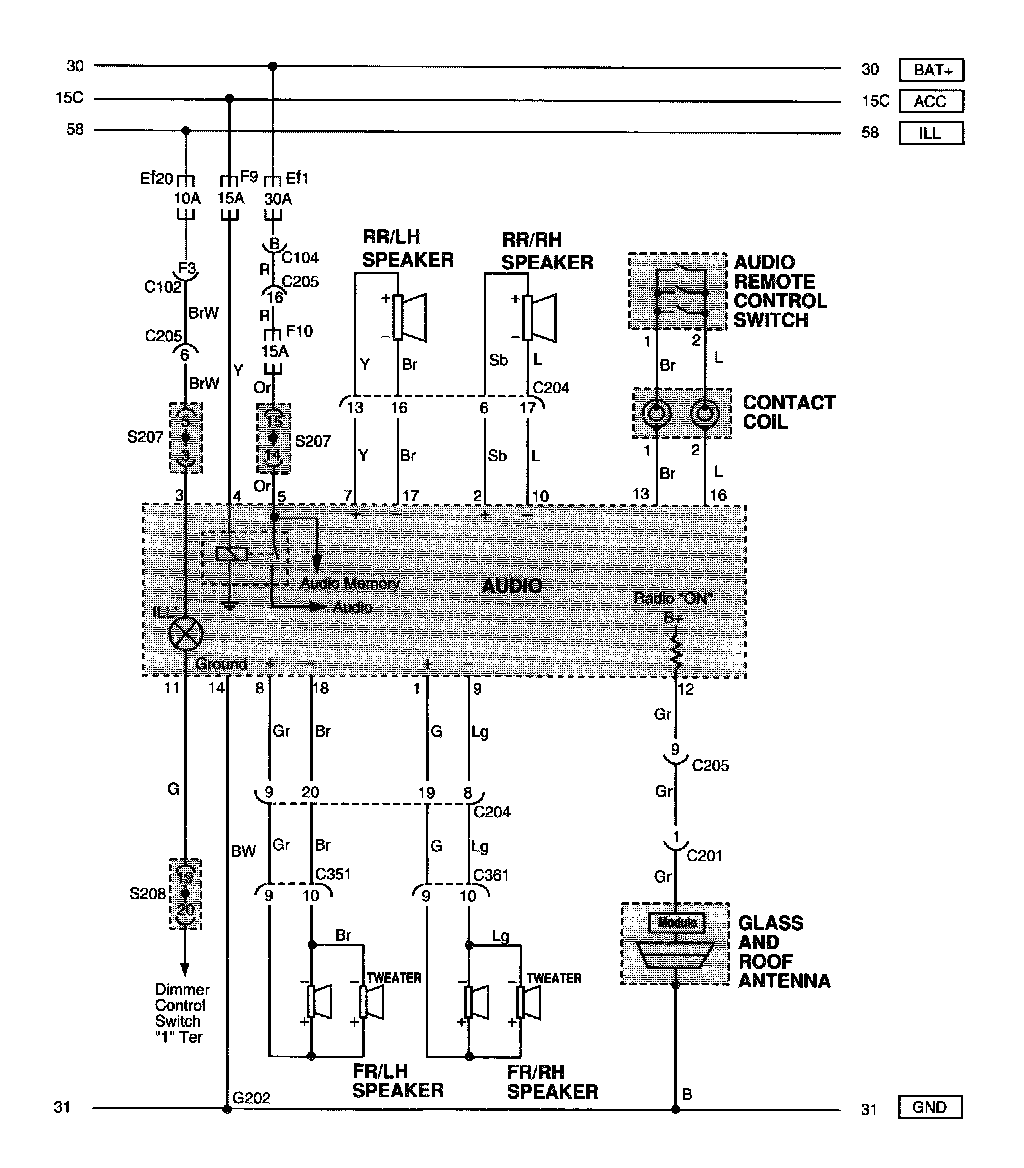

Electrical Wiring Diagram:
Audio System Circuit:
