Nubira CDX Wagon L4-2.0L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
System Diagram
System Diagram

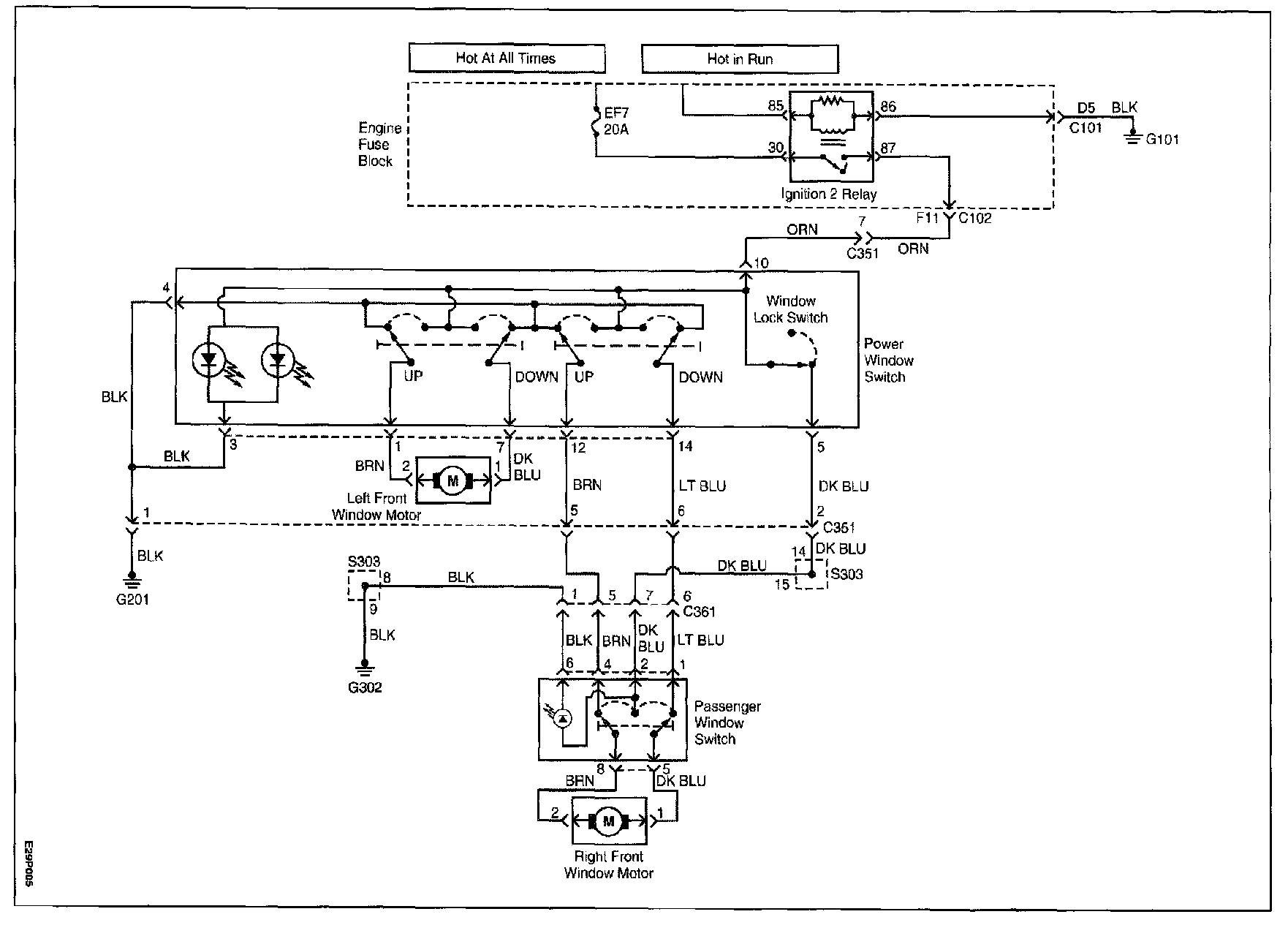

Power Windows (Front Only):
Power Windows (Front And Rear):
