Odometer: Service and Repair

SPEEDOMETER/ODOMETER/TRIP ODOMETER

Removal Procedure




1. Disconnect the negative battery cable.

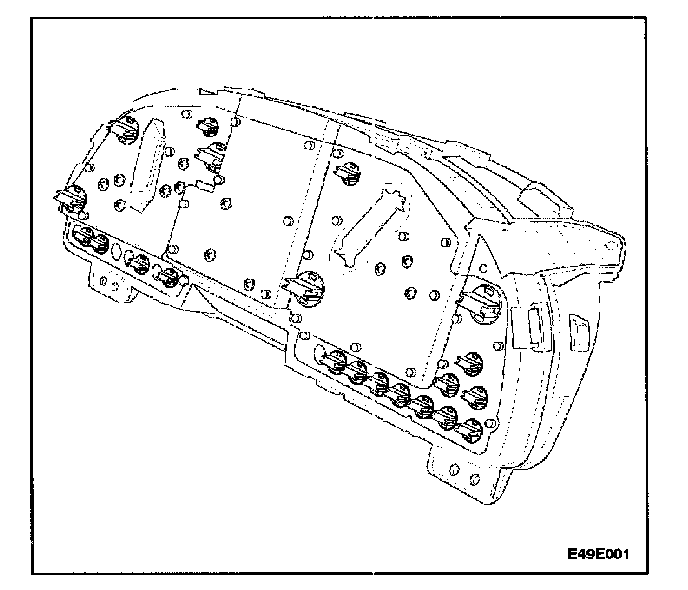

2. Remove the instrument cluster. Refer to "Instrument Cluster".
3. Push the locking and remove the instrument cluster lens.

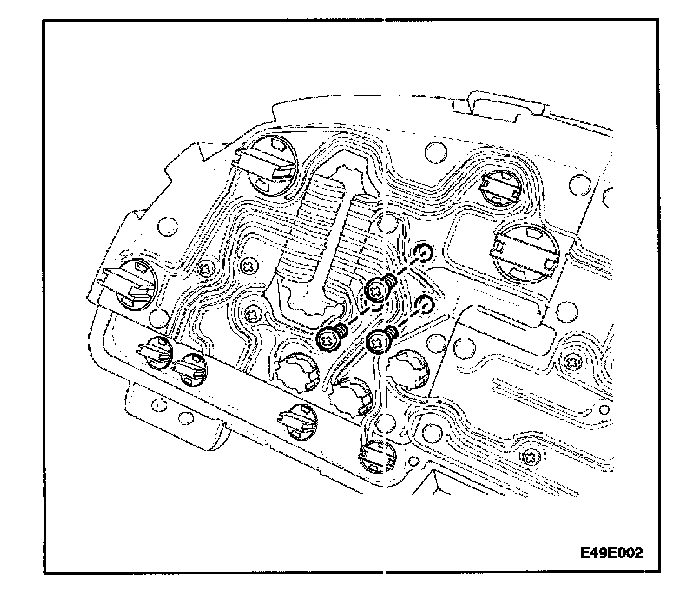

4. Remove the screws and the fuel gauge.

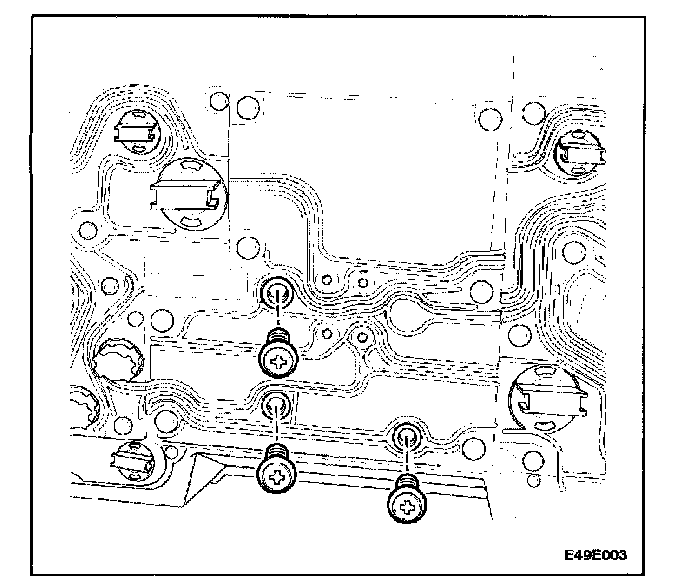

5. Remove the screws and the speedometer/odometer from the instrument cluster.

Installation Procedure

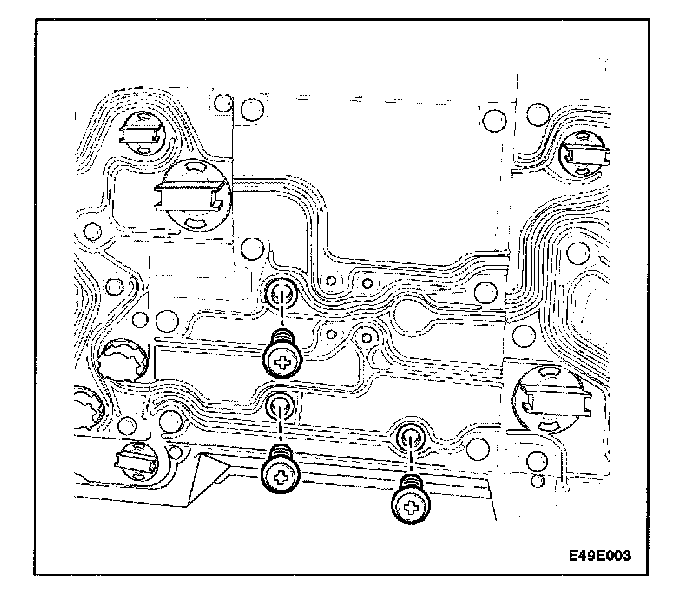

1. Install the speedometer/odometer in the instrument cluster with the screws.

Tighten
Tighten the speedometer/odometer screws to 2.5 N.m (22 lb-in).

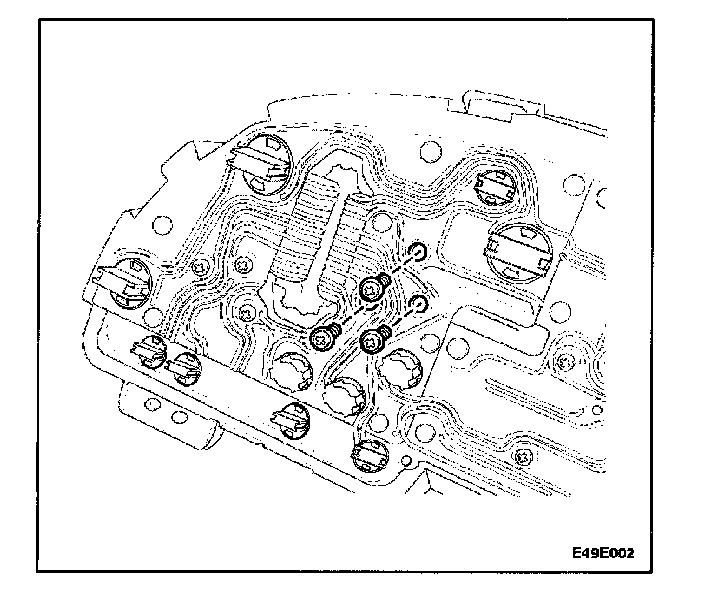

2. Install the fuel gauge with the screws.

Tighten
Tighten the fuel gauge screws to 2.5 N.m (22 lb-in).




3. Install the instrument cluster lens with the screws.

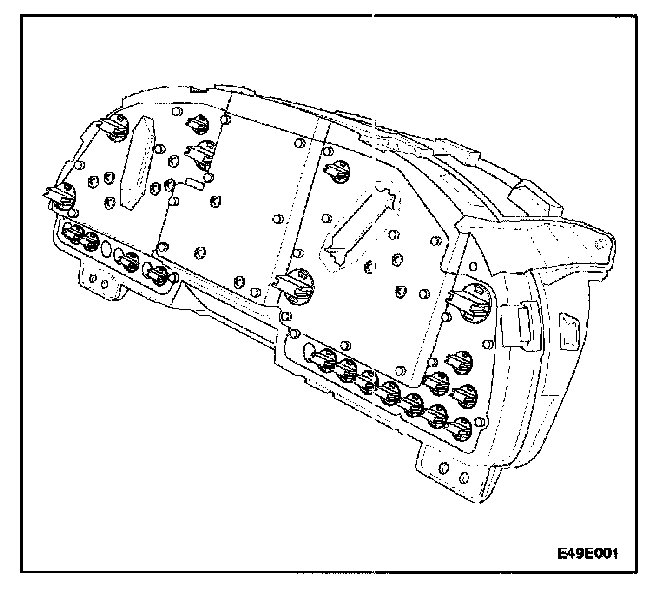

4. Install the instrument cluster. Refer to "Instrument Cluster".
5. Connect the negative battery cable.
