Tachometer: Service and Repair

Removal Procedure




1. Disconnect the negative battery cable.

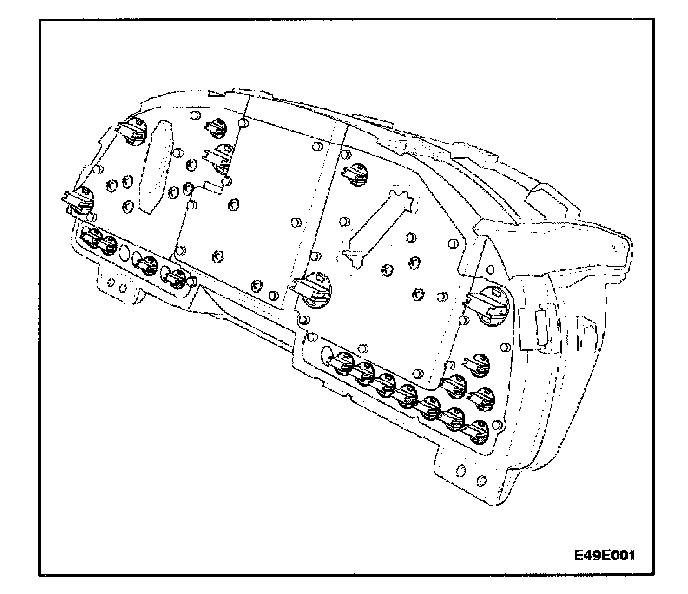

2. Remove the instrument cluster. Refer to "Instrument Cluster".
3. Remove the screws and the instrument cluster lens.

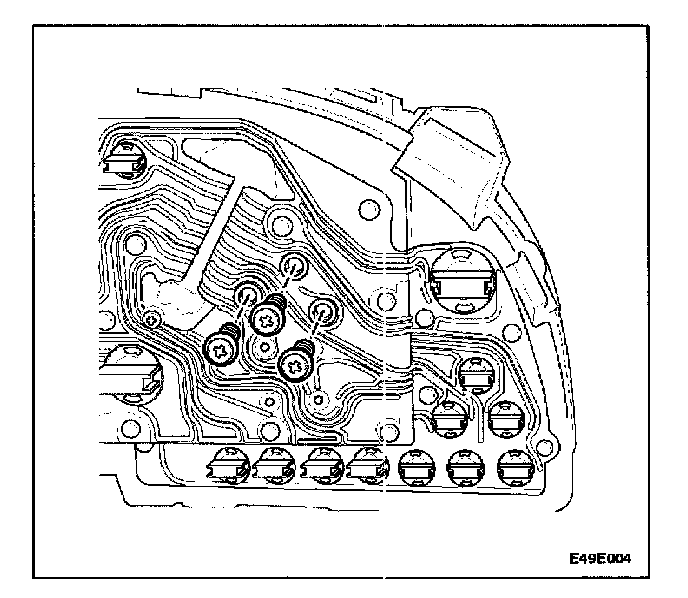

4. Remove the screws and the tachometer from the instrument cluster.

Installation Procedure




1. Install the tachometer to the instrument cluster with the screws.

Tighten
Tighten the tachometer screws to 2.5 N.m (22 lb-in).




2. Install the instrument cluster lens.
3. Install the instrument cluster. Refer to "Instrument Cluster".
4. Connect the negative battery cable.
