Tachometer: Testing and Inspection

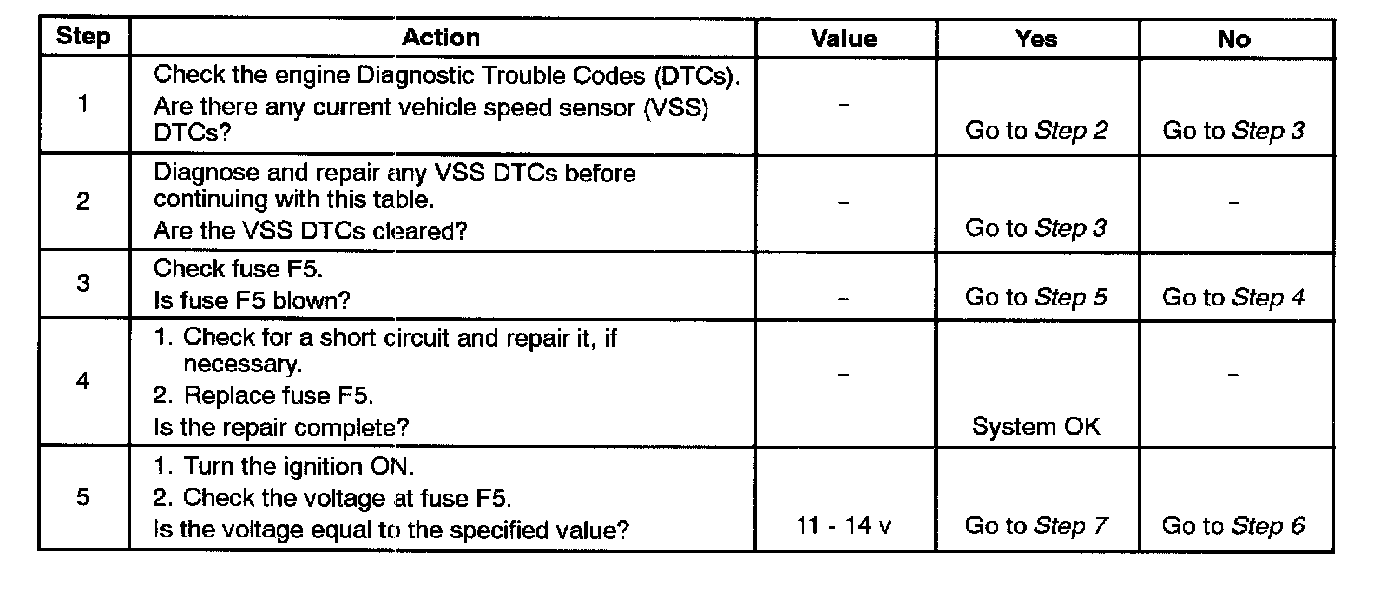

Tachometer Does Not WorkTachometer Does Not Work (Step 1 - 5):

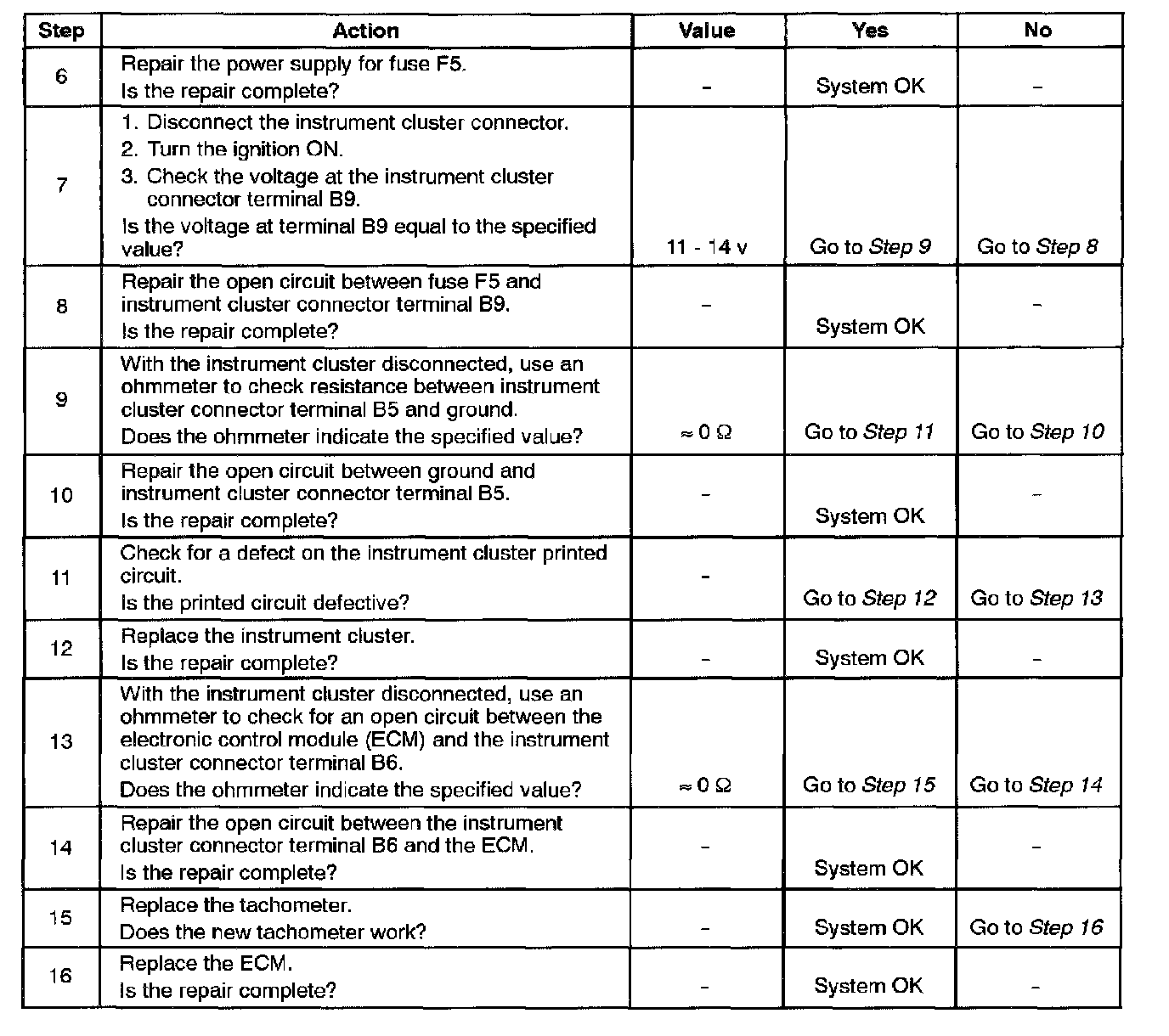

Tachometer Does Not Work (Step 6 - 16):
Test Description
The number below refers to a step number in the diagnostic table.
3. If the coolant temperature gauge works, skip Steps 3 to 10 and go directly to Step 11. The coolant temperature gauge uses the same fuse and ground as the tachometer.
