Battery Power Supply, Ground, EI, CMP Sensor & Circuits
Battery Power Supply, Ground, EI, CMP Sensor & Circuits

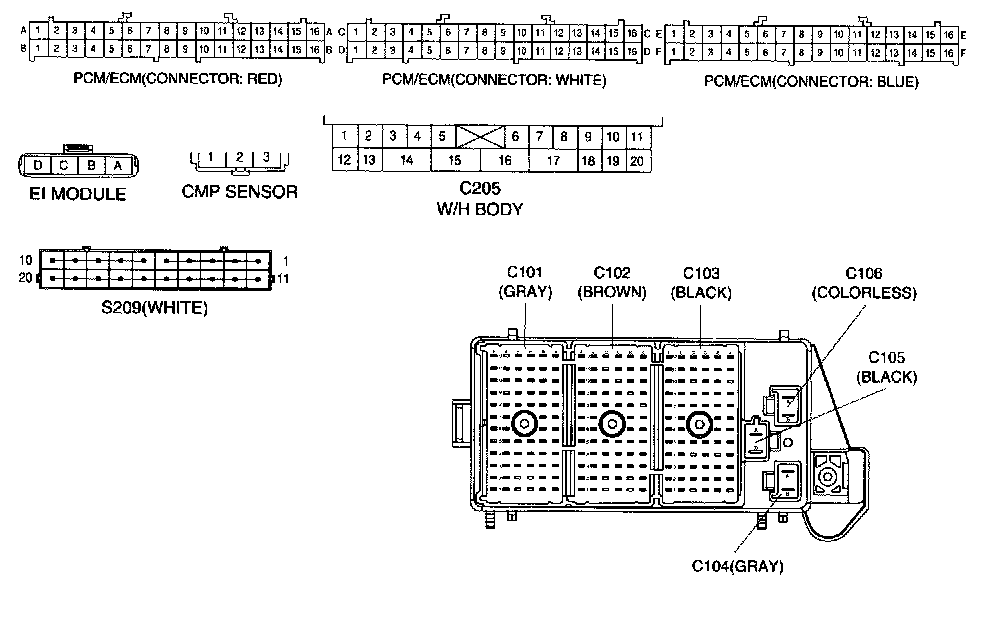

Connector Identification Symbol & Pin Number Position:
Splice Pack - S209 (White):
