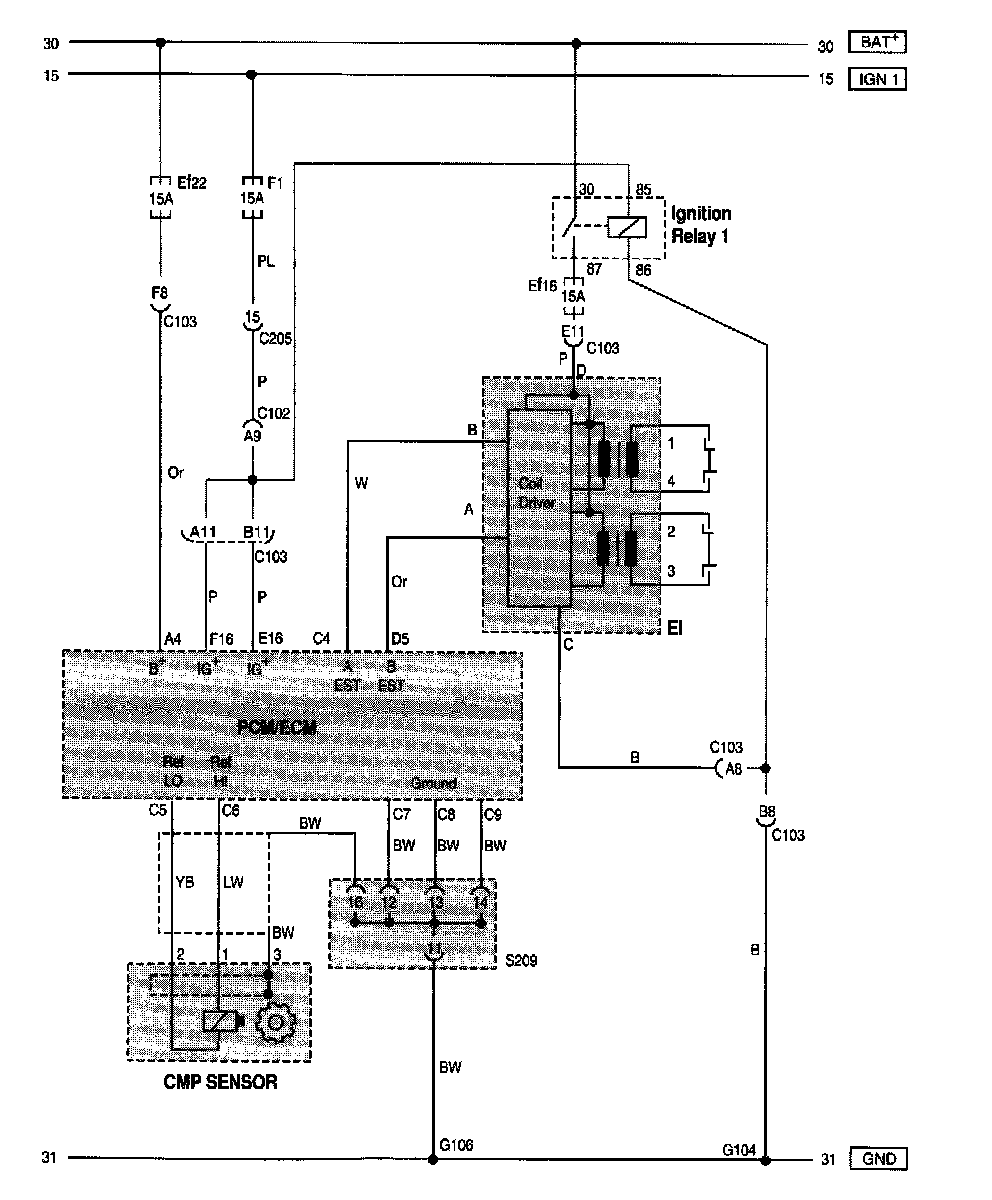

Battery Power Supply, Ground, EI & CMP Sensor Circuits
Battery Power Supply, Ground, EI & CMP Sensor Circuits
Electrical Wiring Diagram:
