Malfunction Indicator Lamp, Engine Hot Indicator & DLC Circuits
Malfunction Indicator Lamp, Engine Hot Indicator & DLC Circuits

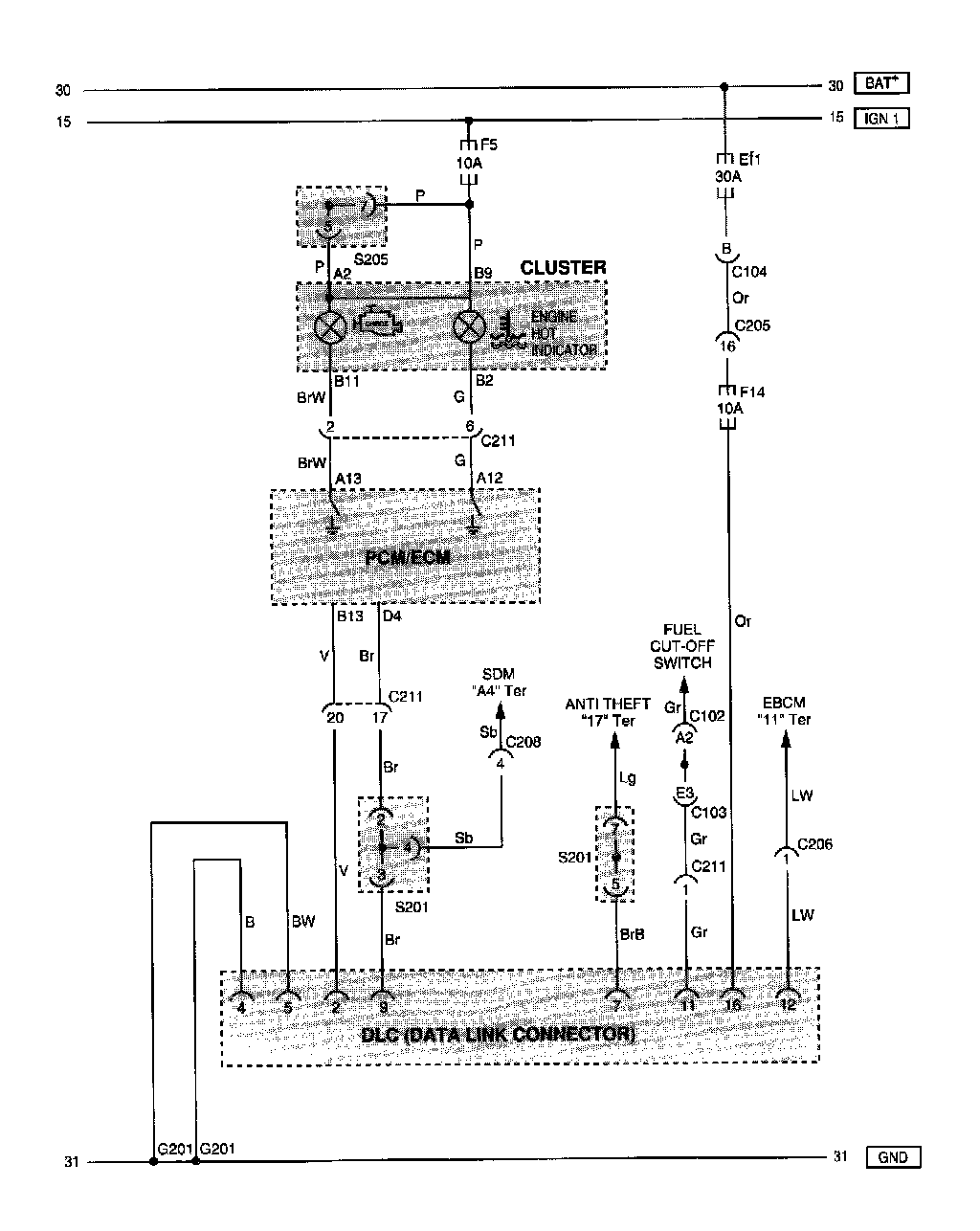

Electrical Wiring Diagram:
