Fuel Pump, Injector & IAC Circuits

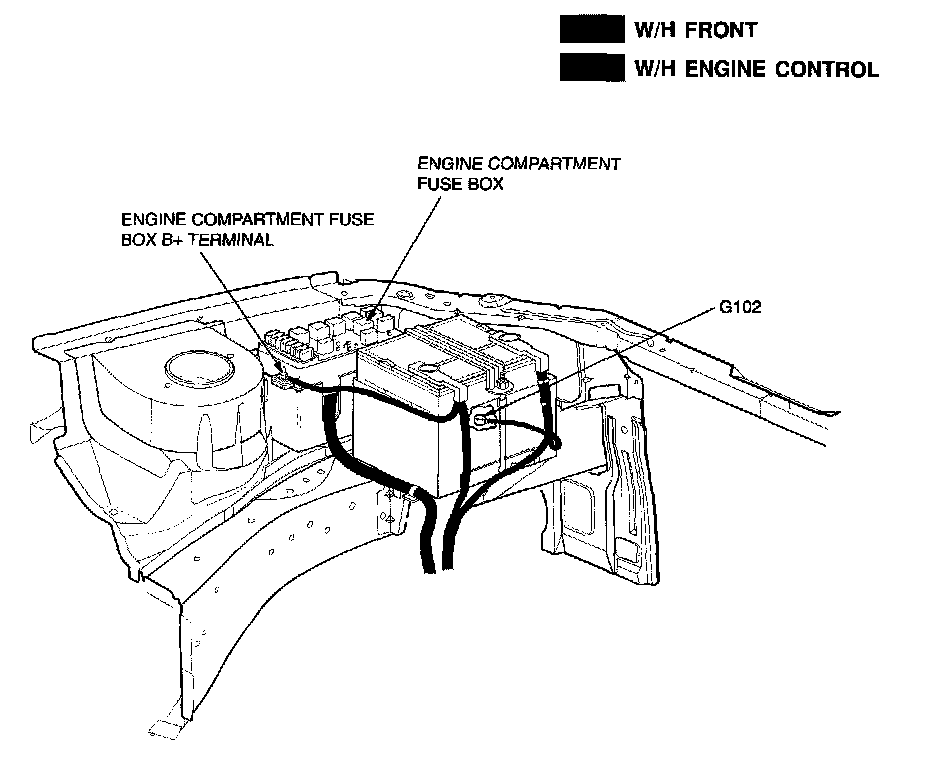

Position Of Connectors And Grounds - Engine Compartment Fuse Block:

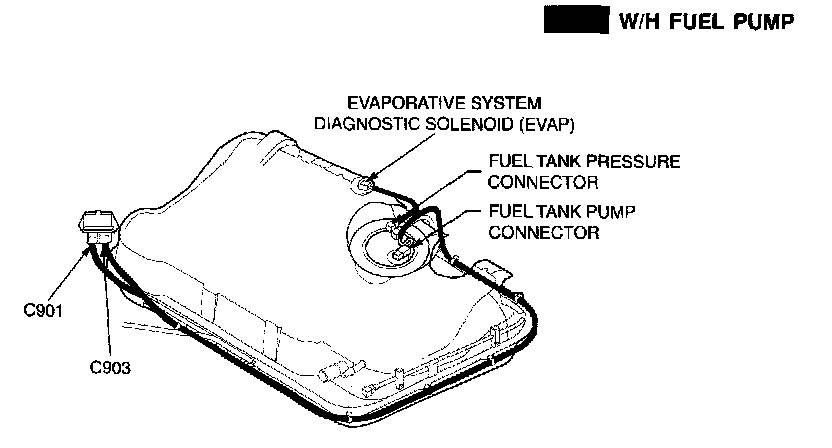

Position Of Connectors And Grounds - Fuel Tank:

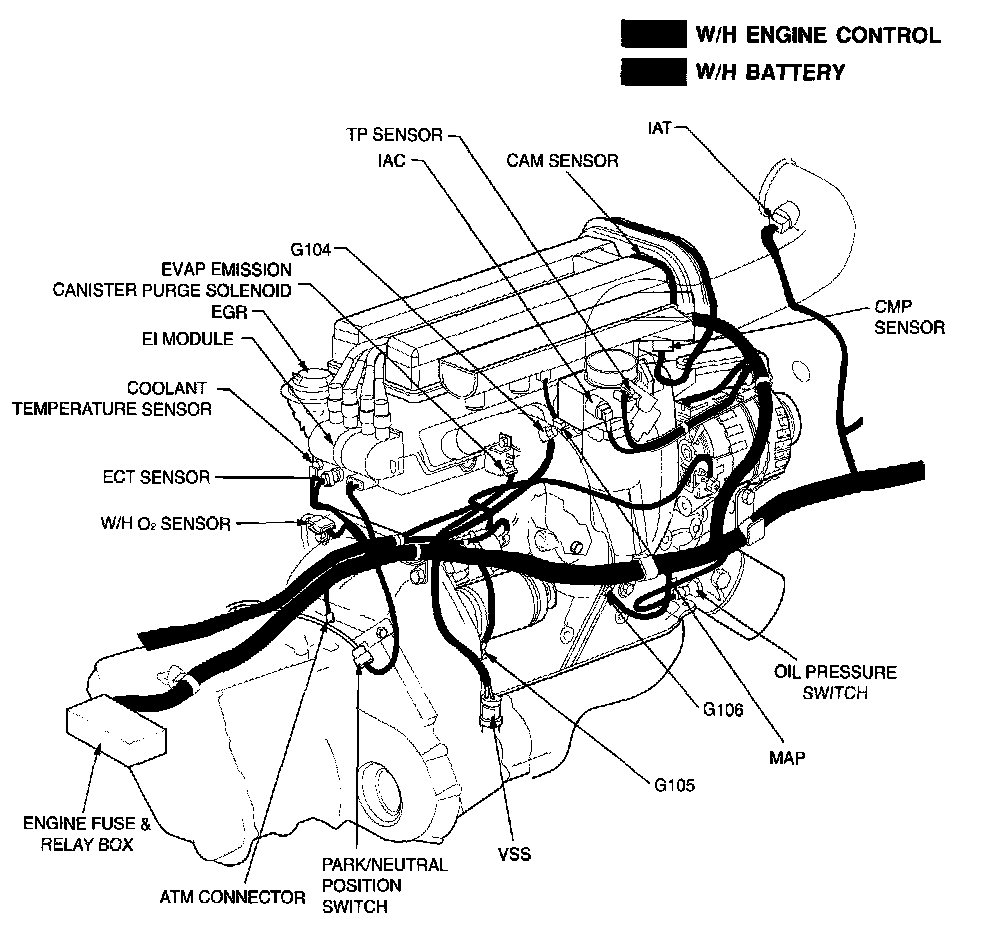

Position Of Connectors And Grounds - 2.0 DOHC Engine:
