Nubira CDX Wagon L4-2.0L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Locations
>>
Harness Locations
>>
MAP,IAT,EGR,A/C Press/TP/ECT Fuel Press Sensor&Fuel Gauge CKT
MAP,IAT,EGR,A/C Press/TP/ECT Fuel Press Sensor&Fuel Gauge CKT

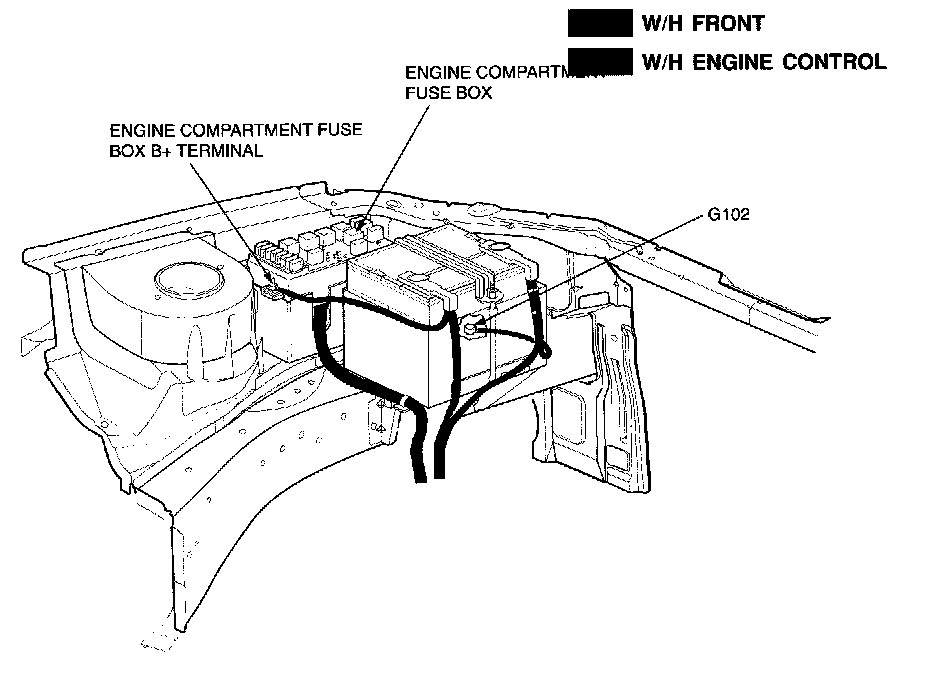

Position Of Connector And Grounds - Engine Compartment Fuse Block:
Position Of Connectors And Grounds - Fuel Tank:

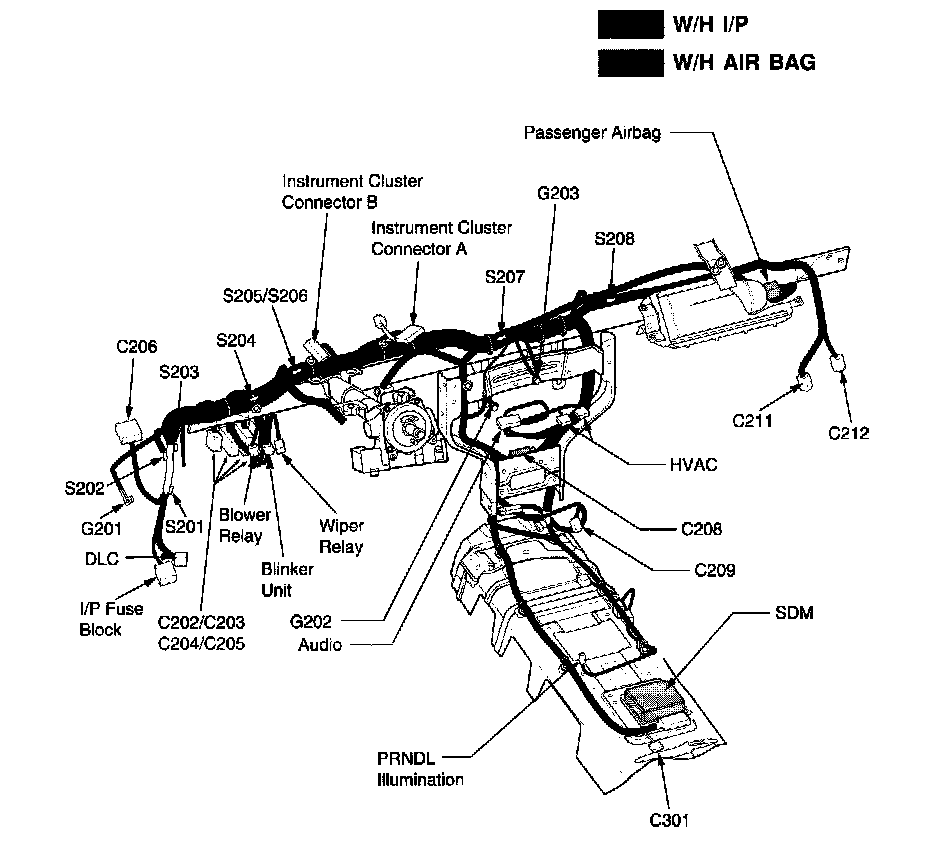

Position Of Connectors And Grounds - Instrument Panel Inside:
