Connector Views
Connector Views

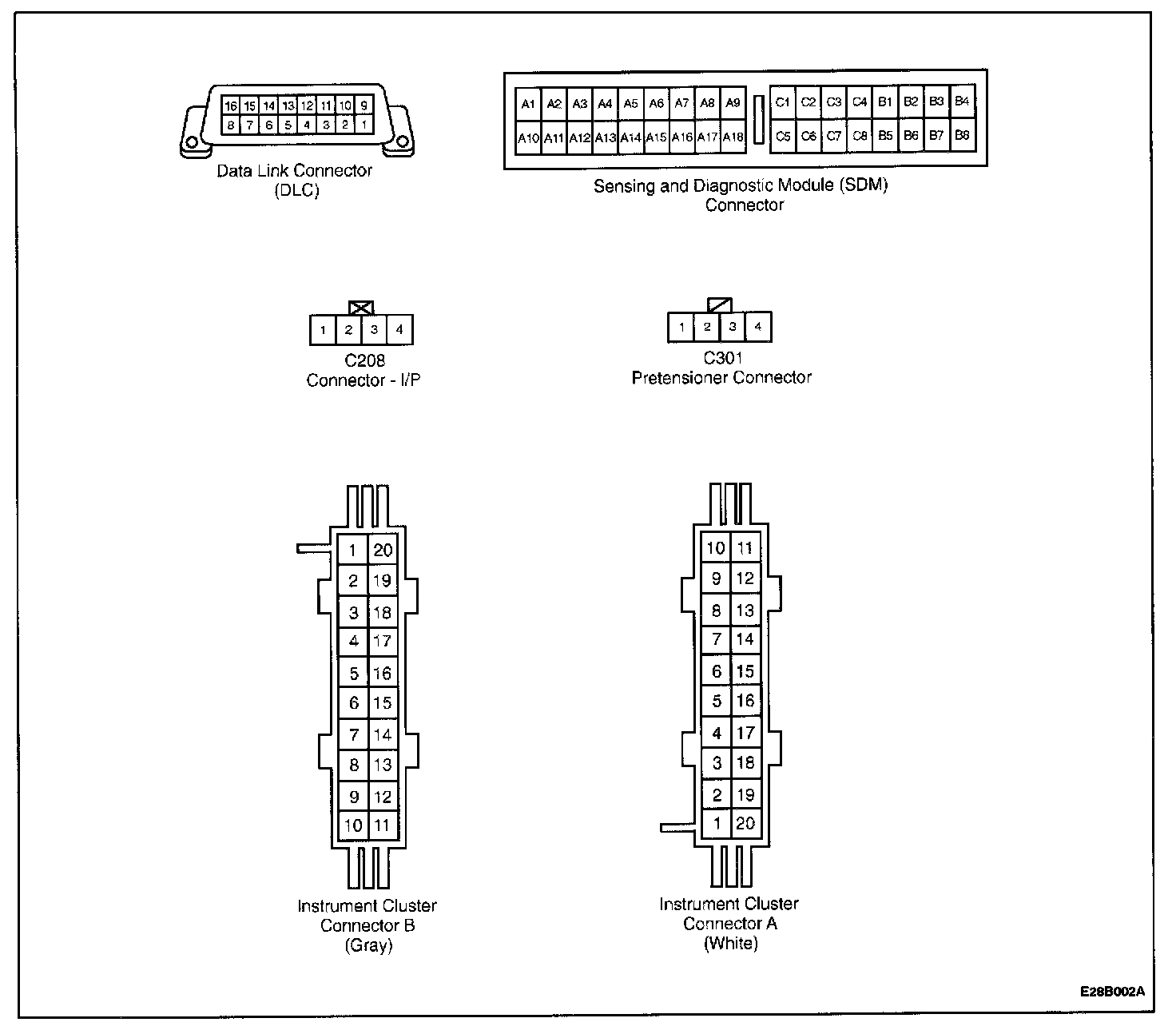

Connector Identification Symbol & Pin Number Position:

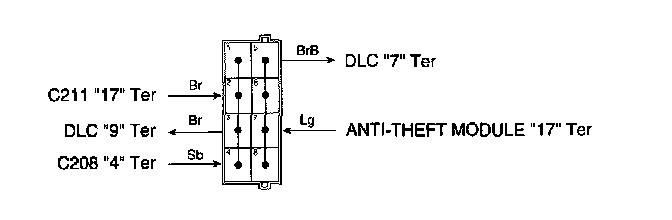

Splice Pack - S201 (Natural):

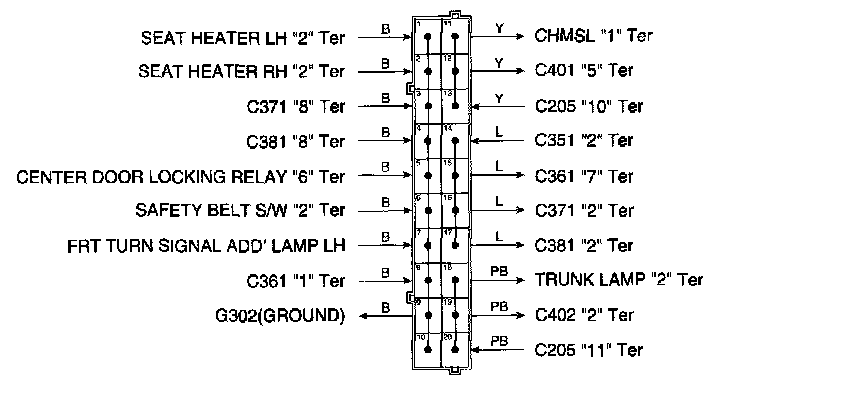

Splice Pack - S303 (Black) - N/B & H/B:

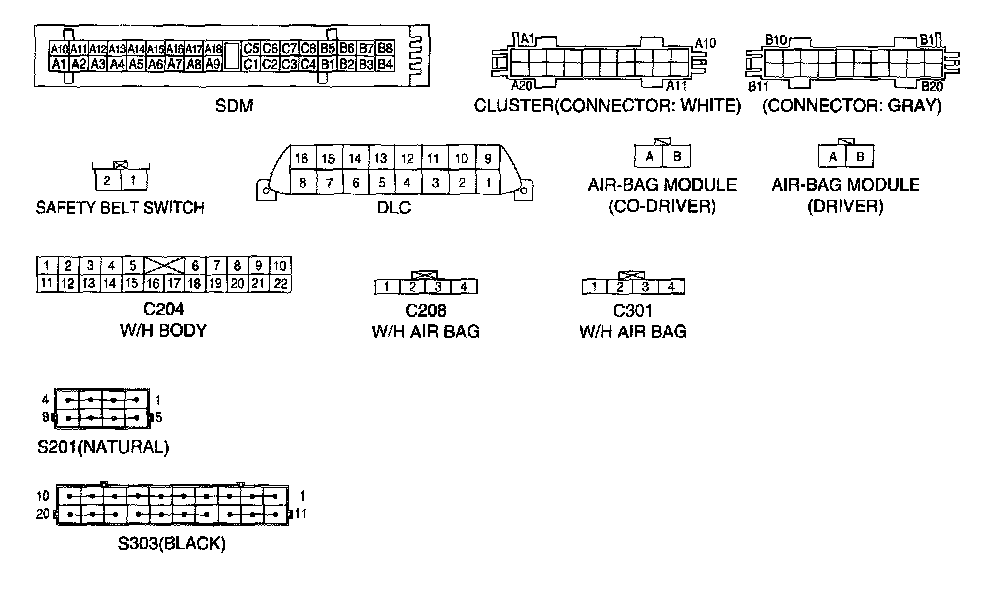

Connector End Views:
