Connector Views
Connector Identification Symbol & Pin Number Position:

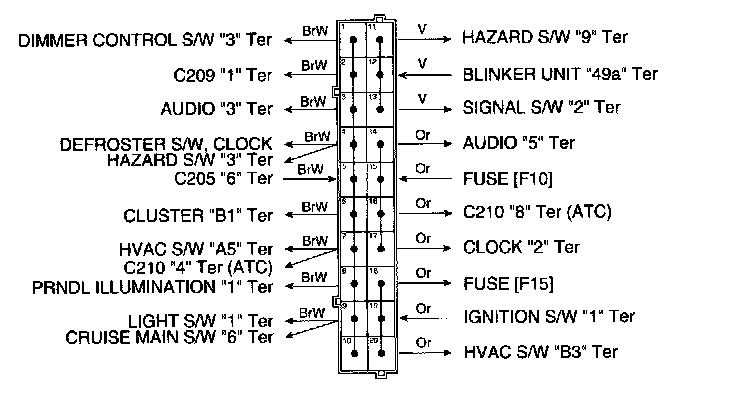

Splice Pack - S205 (Blue):
Splice Pack - S207 (Brown):
Splice Pack - S208 (Red):
