Exploded Views

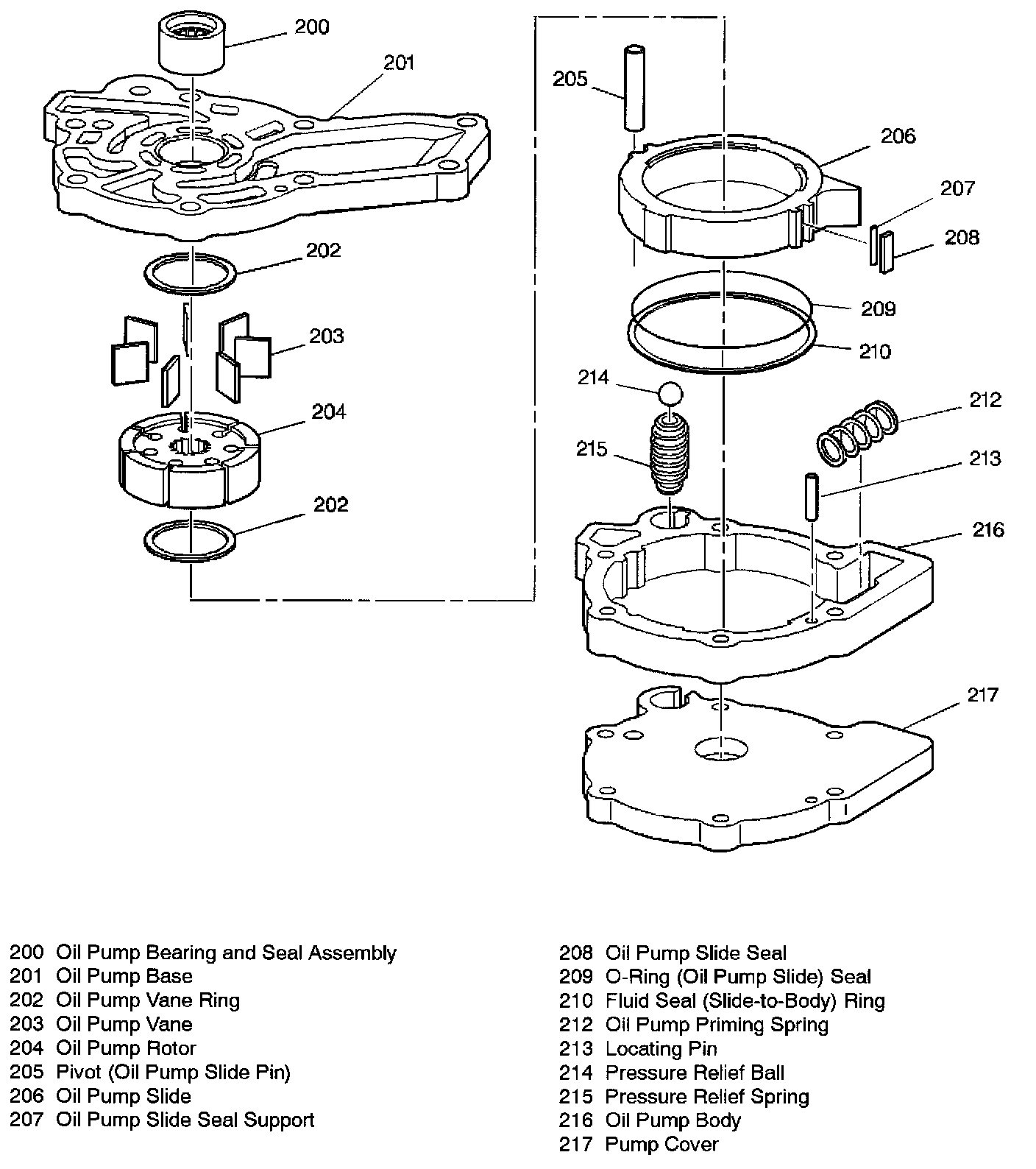

OIL PUMP ASSEMBLY

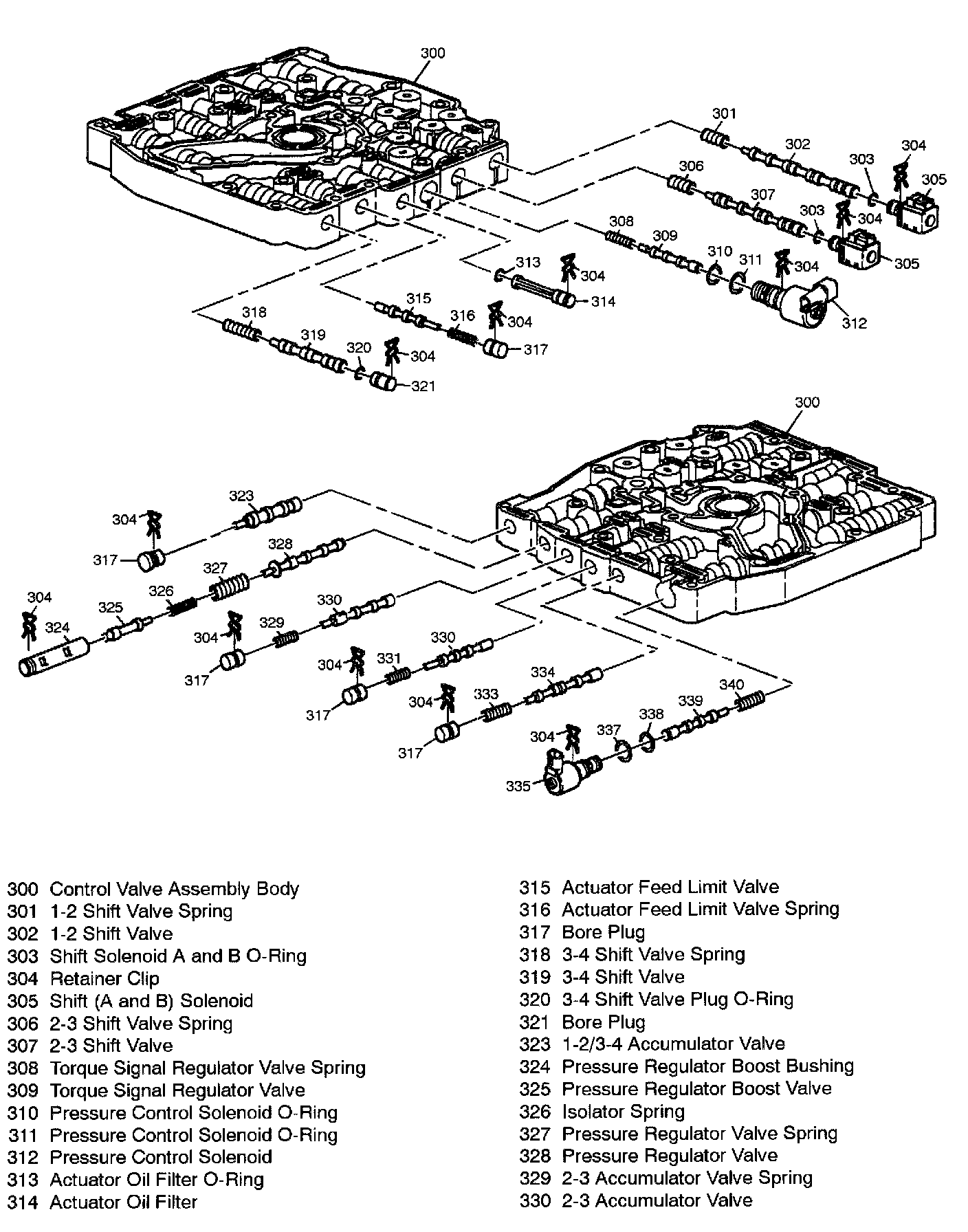

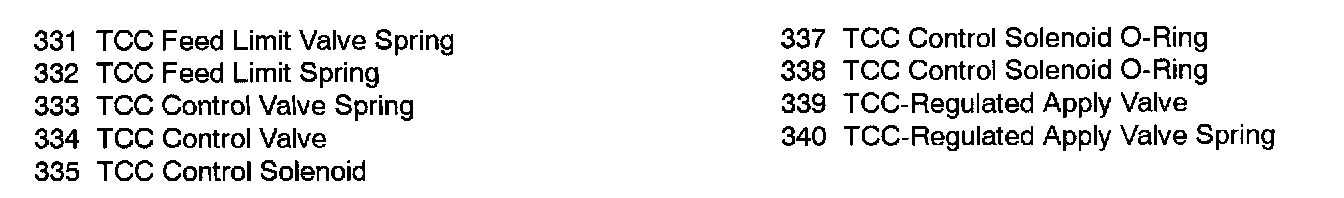

CONTROL VALVE BODY ASSEMBLY
1 of 2
2 of 3
DRIVEN SPROCKET SUPPORT ASSEMBLY/2ND CLUTCH
REVERSE INPUT CLUTCH ASSEMBLY

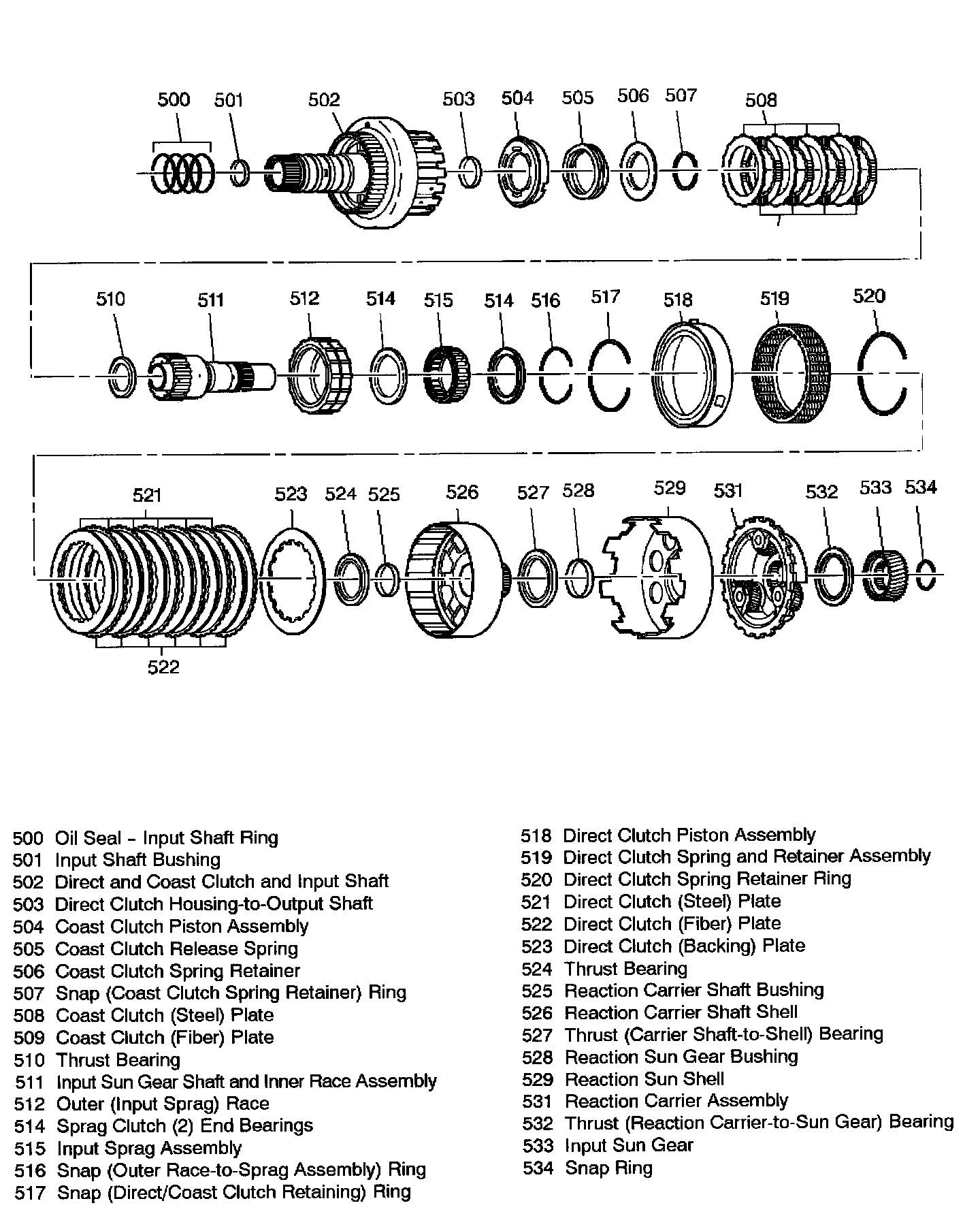

DIRECT AND COAST CLUTCH ASSEMBLIES

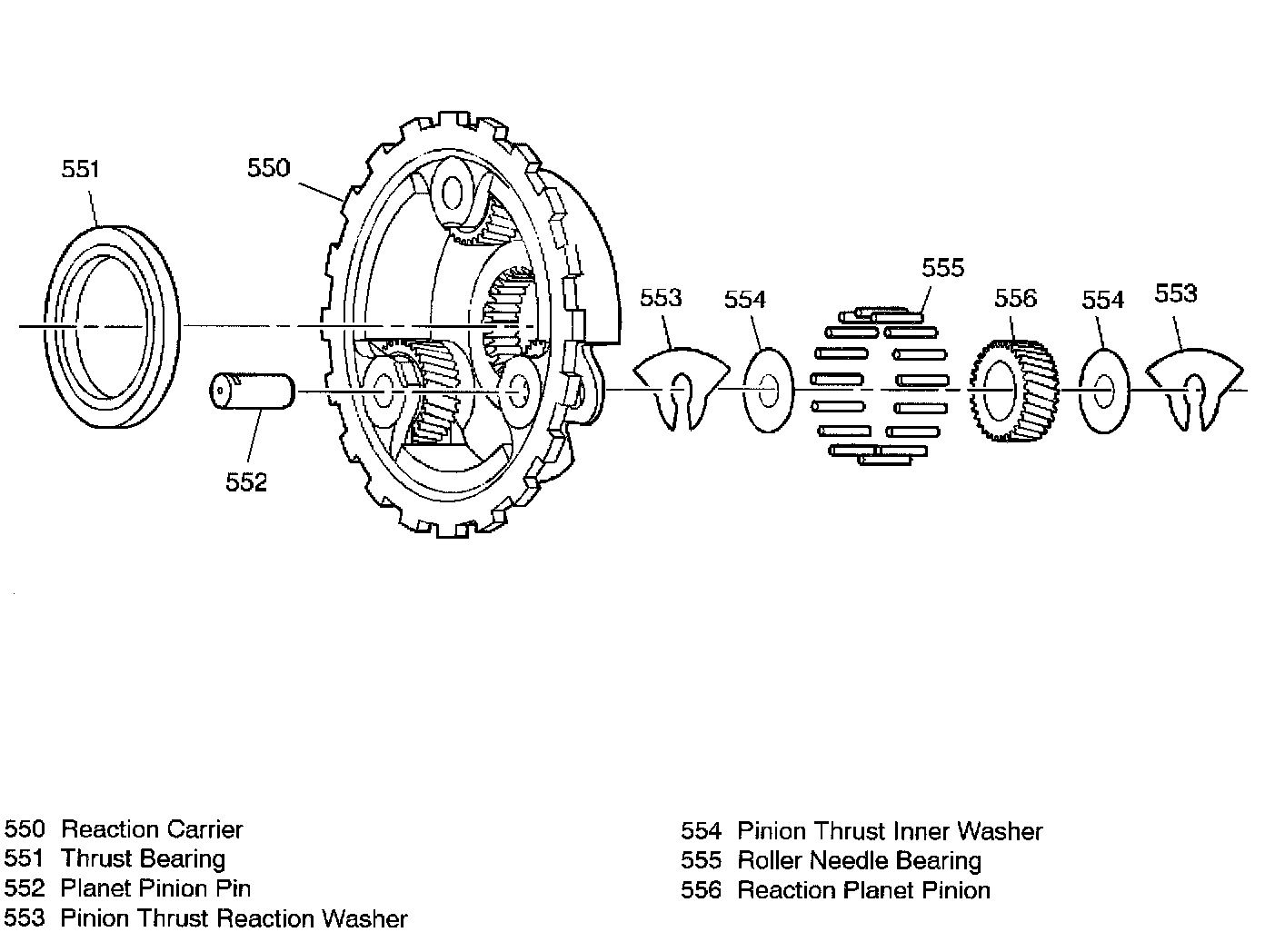

REACTION CARRIER ASSEMBLY
INPUT CARRIER ASSEMBLY

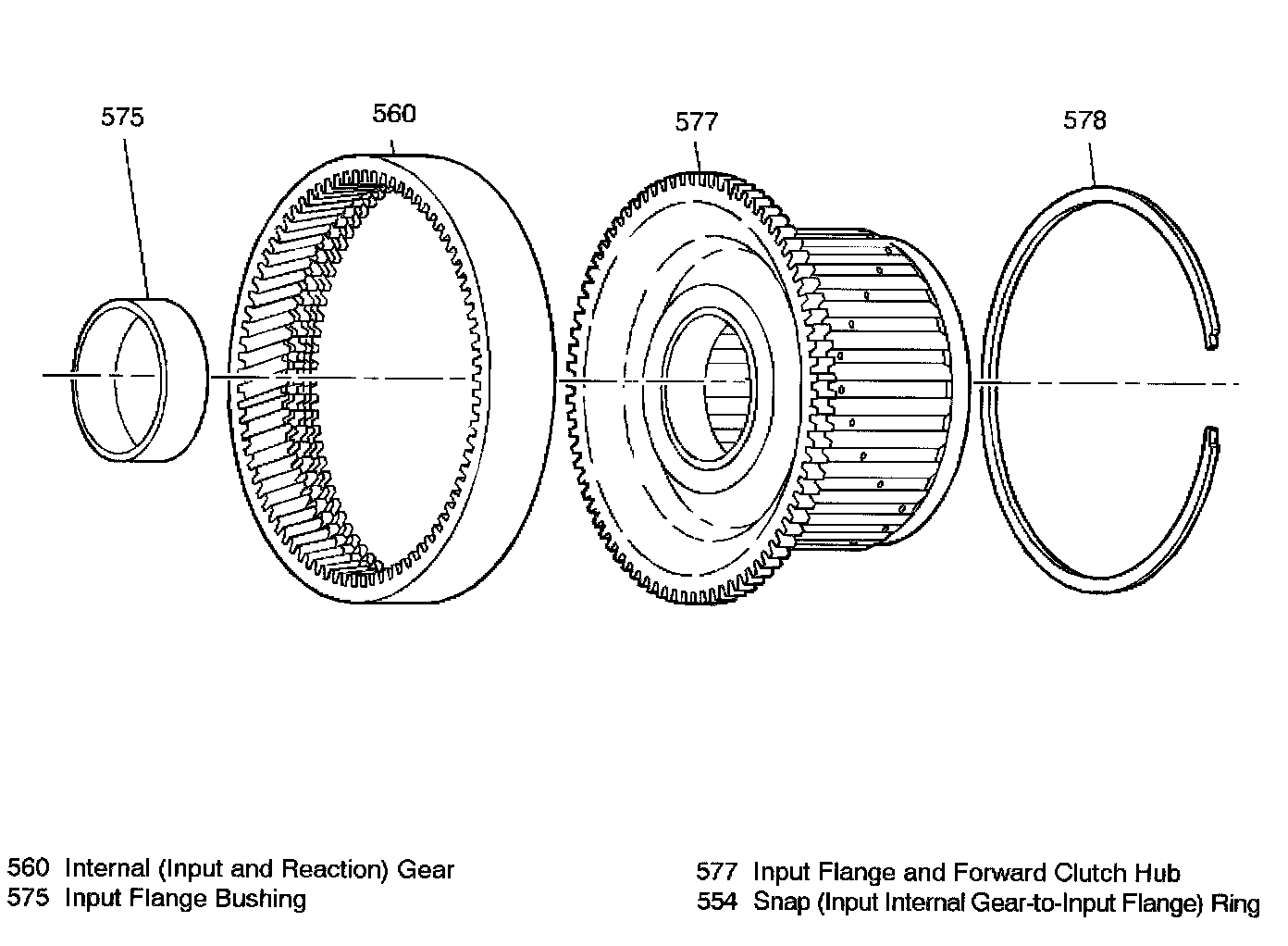

INPUT INTERNAL GEAR AND FORWARD CLUTCH HUB

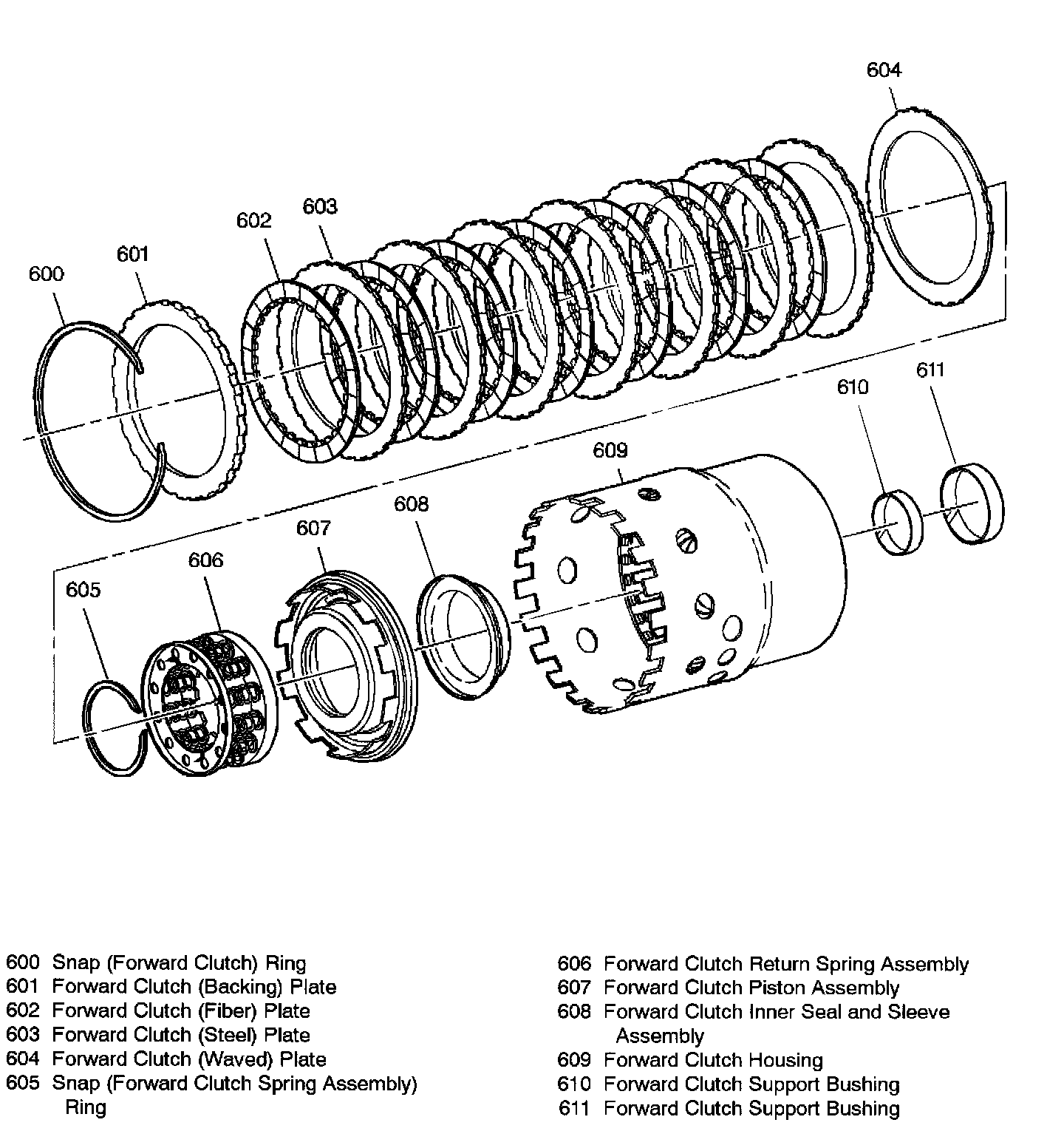

FORWARD CLUTCH ASSEMBLY
FORWARD CLUTCH SUPPORT ASSEMBLY
FINAL DRIVE AND DIFFERENTIAL ASSEMBLY

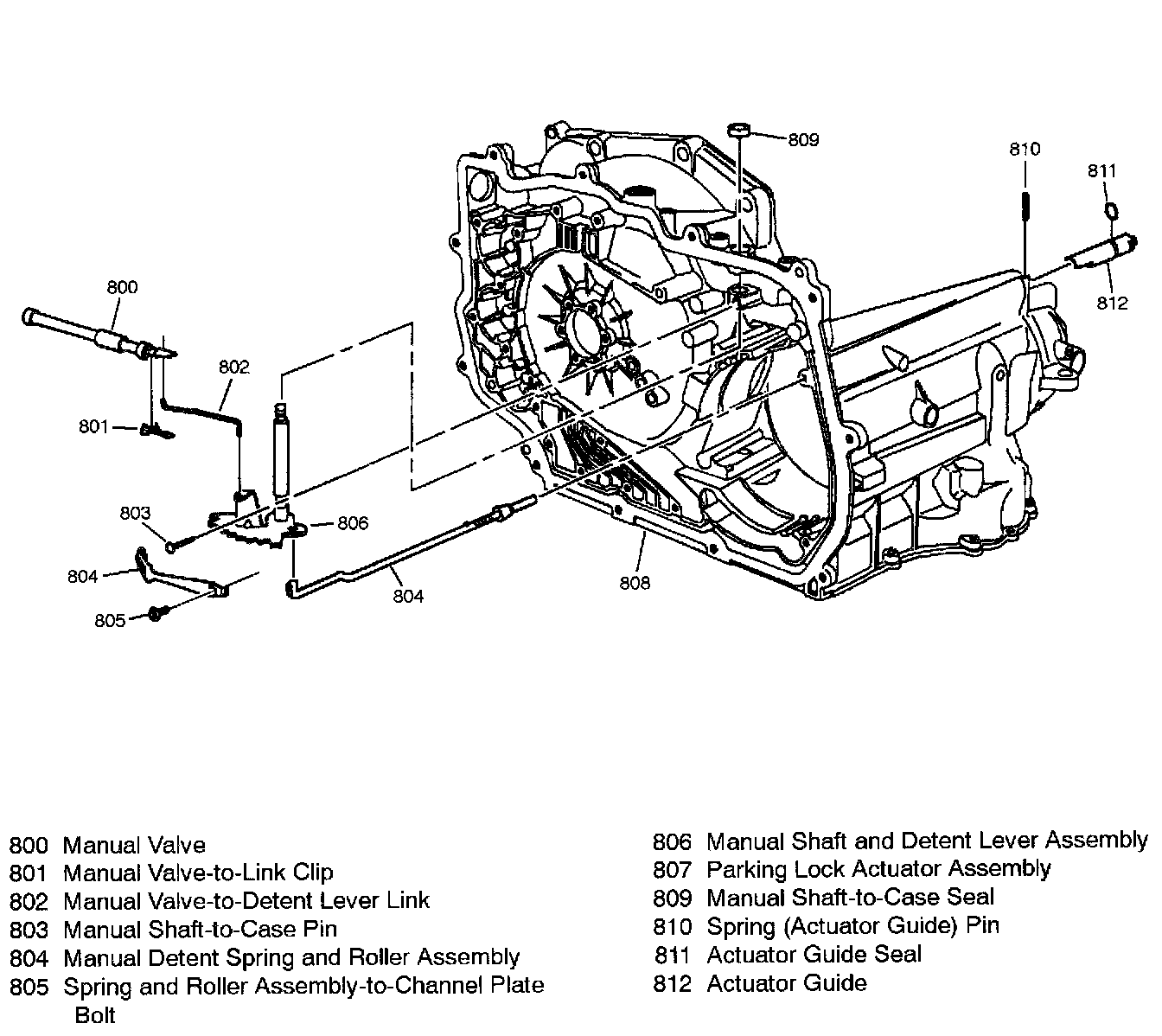

MANUAL SHAFT, PARKING PANEL AND ACTUATOR ASSEMBLY

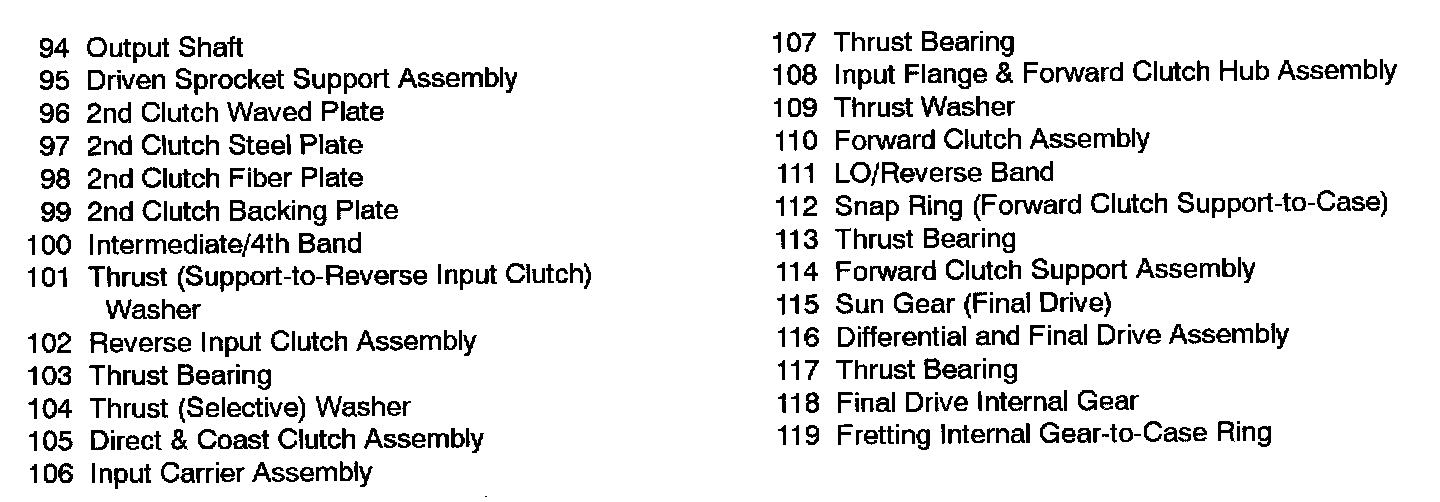

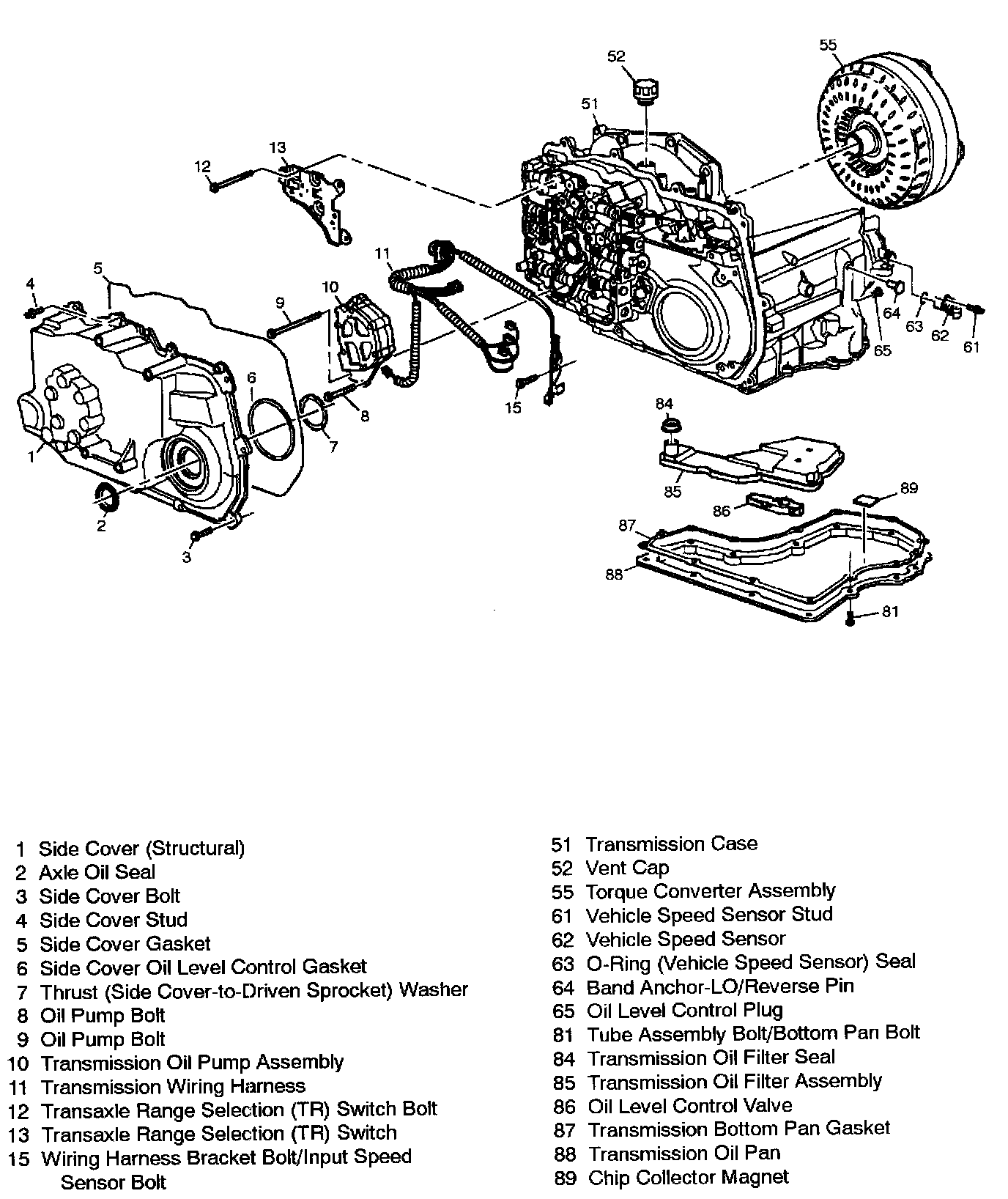

CASE AND ASSOCIATED PARTS (1 OF 3)
CASE AND ASSOCIATED PARTS (2 OF 3)
1 of 2
2 of 2
CASE AND ASSOCIATED PARTS (3 OF 3)
1 of 2
2 of 2
VALVE BODY-TO-SPACER PLATE GASKET
1 of 2

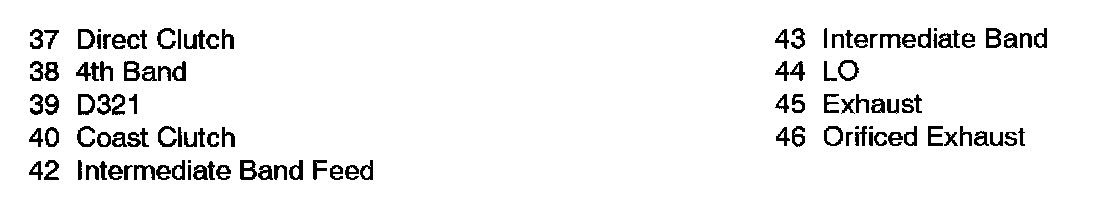

2 of 2

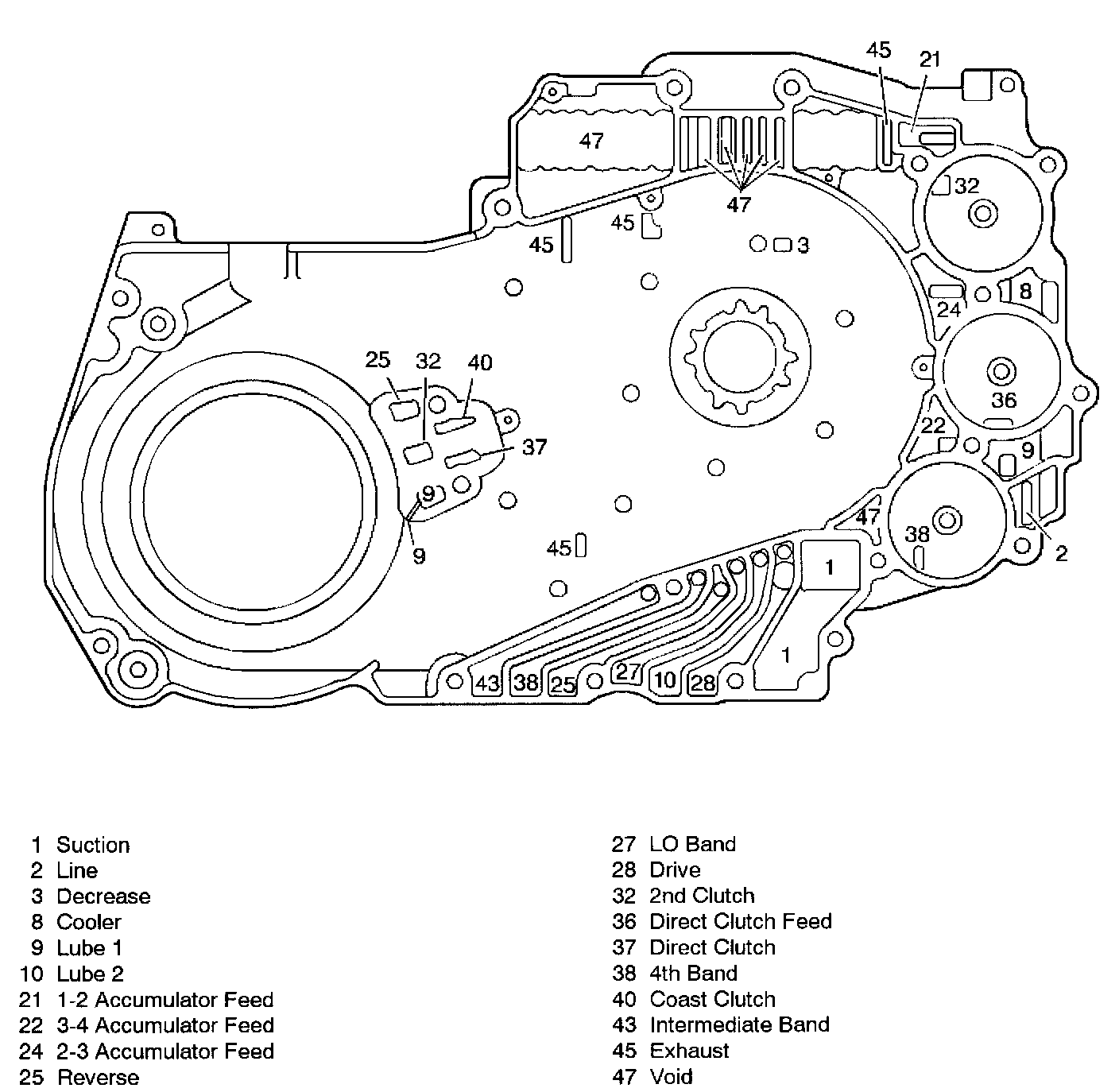

CHANNEL PLATE PASSAGES - CASE SIDE

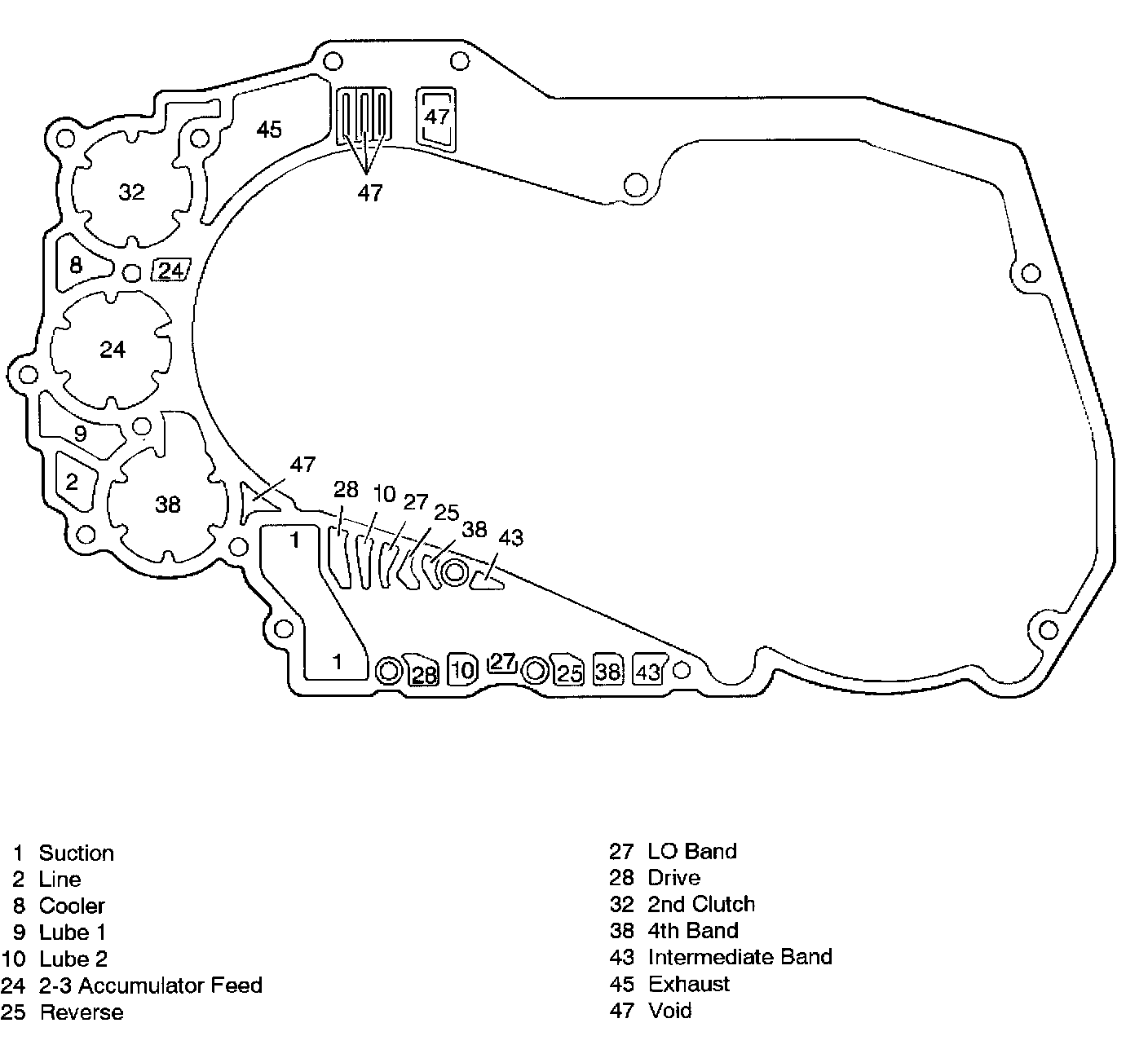

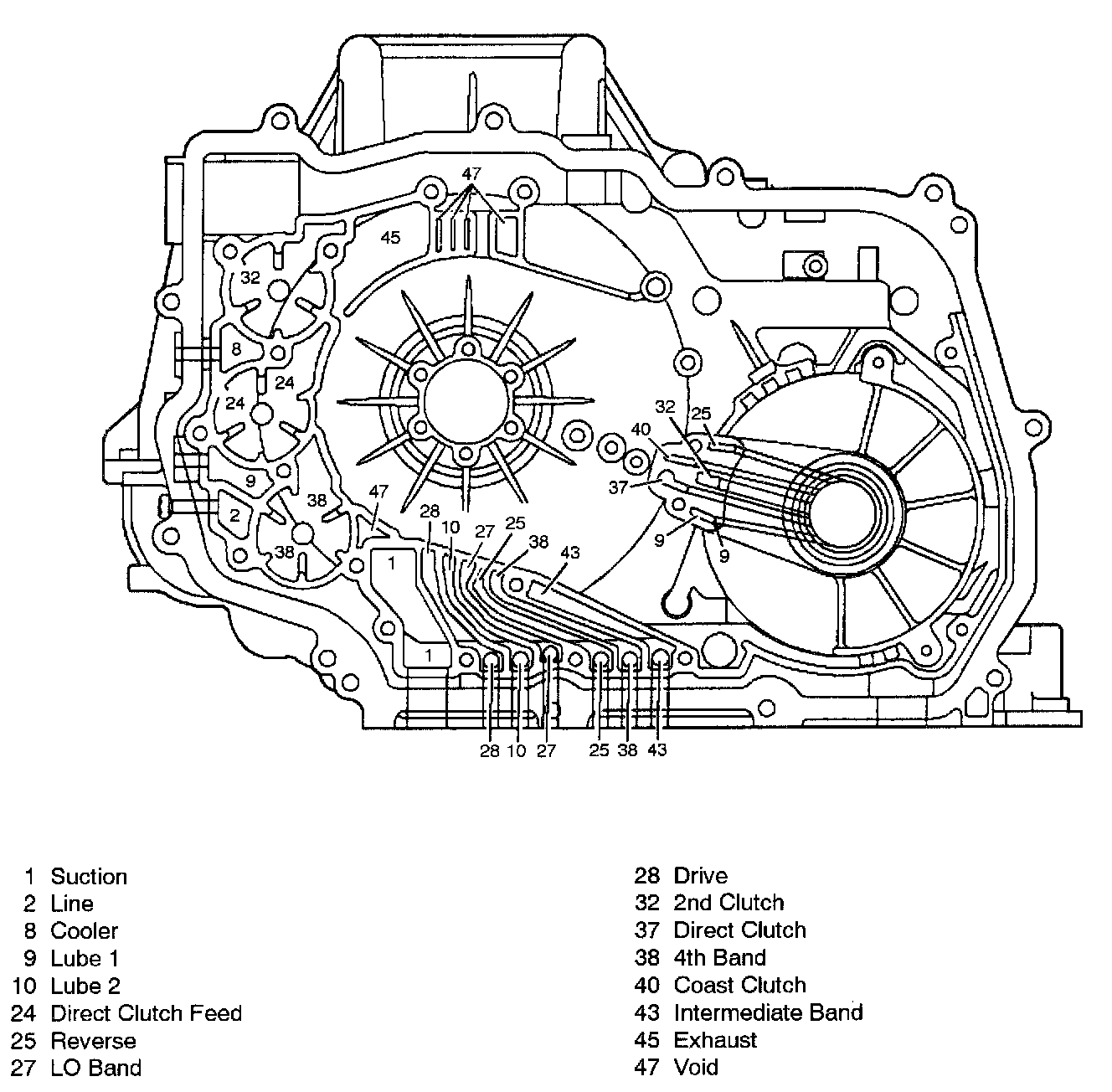

CASE PASSAGES - CHANNEL PLATE SIDE
CASE PASSAGES- BOTTOM

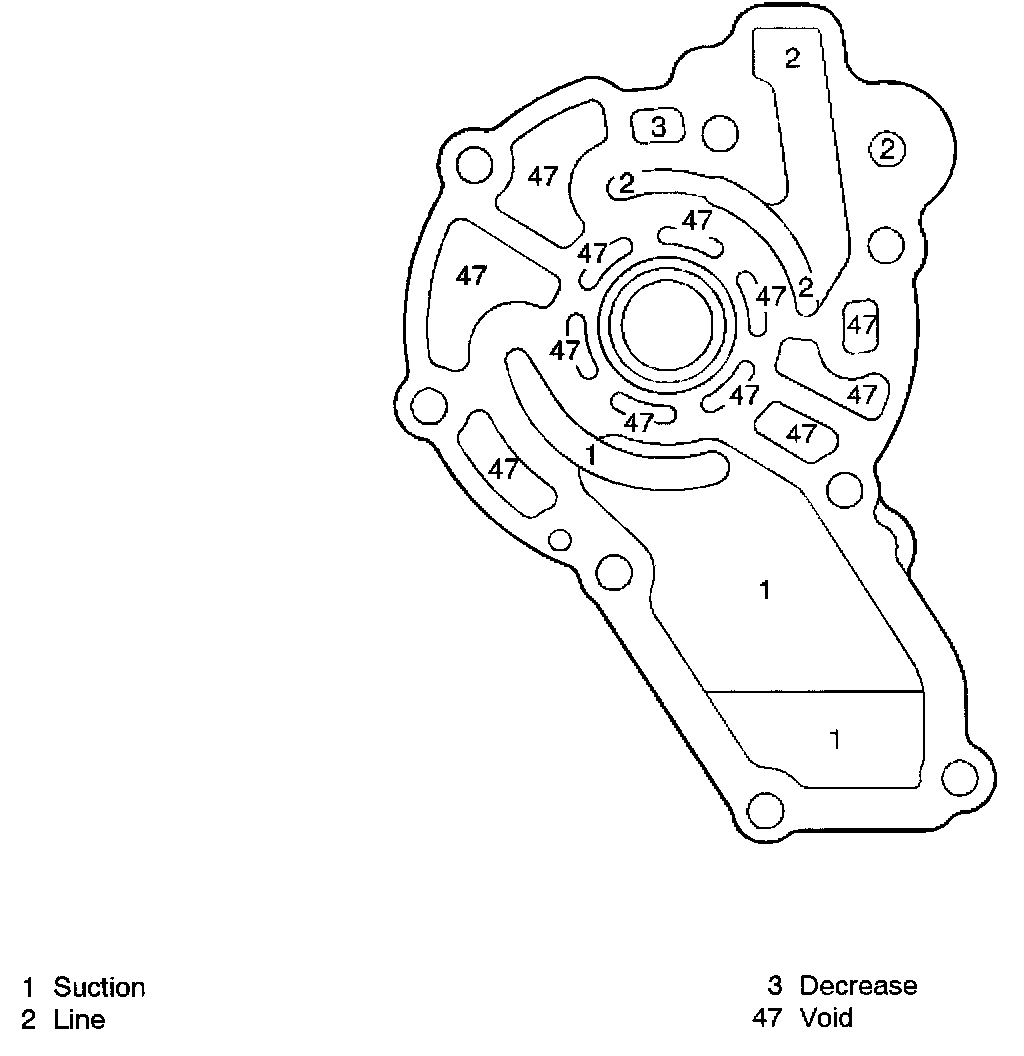

SPACER PLATE-TO-CHANNEL PLATE GASKET
1 of 2
2 of 2
CHANNEL PLATE-TO-CASE GASKET

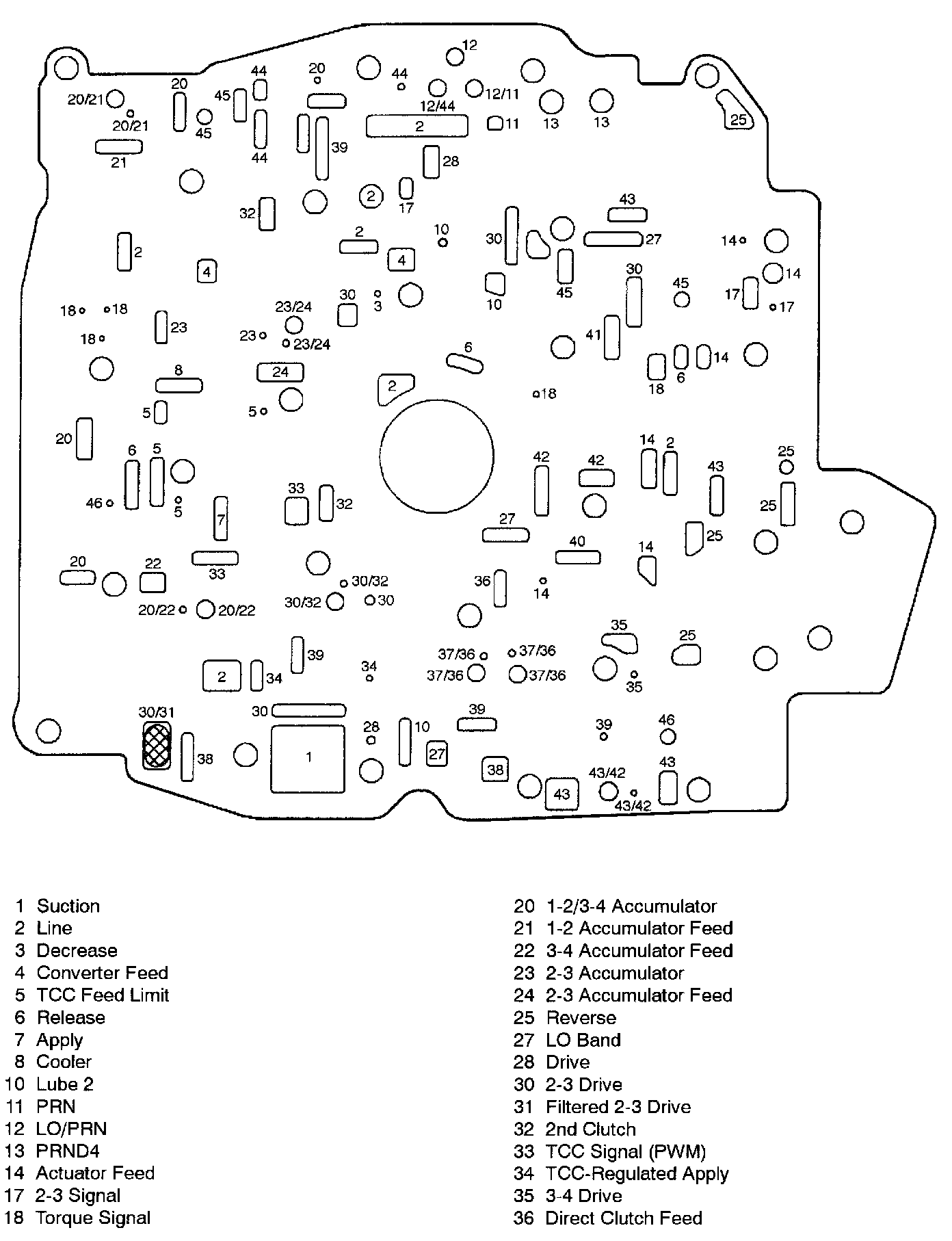

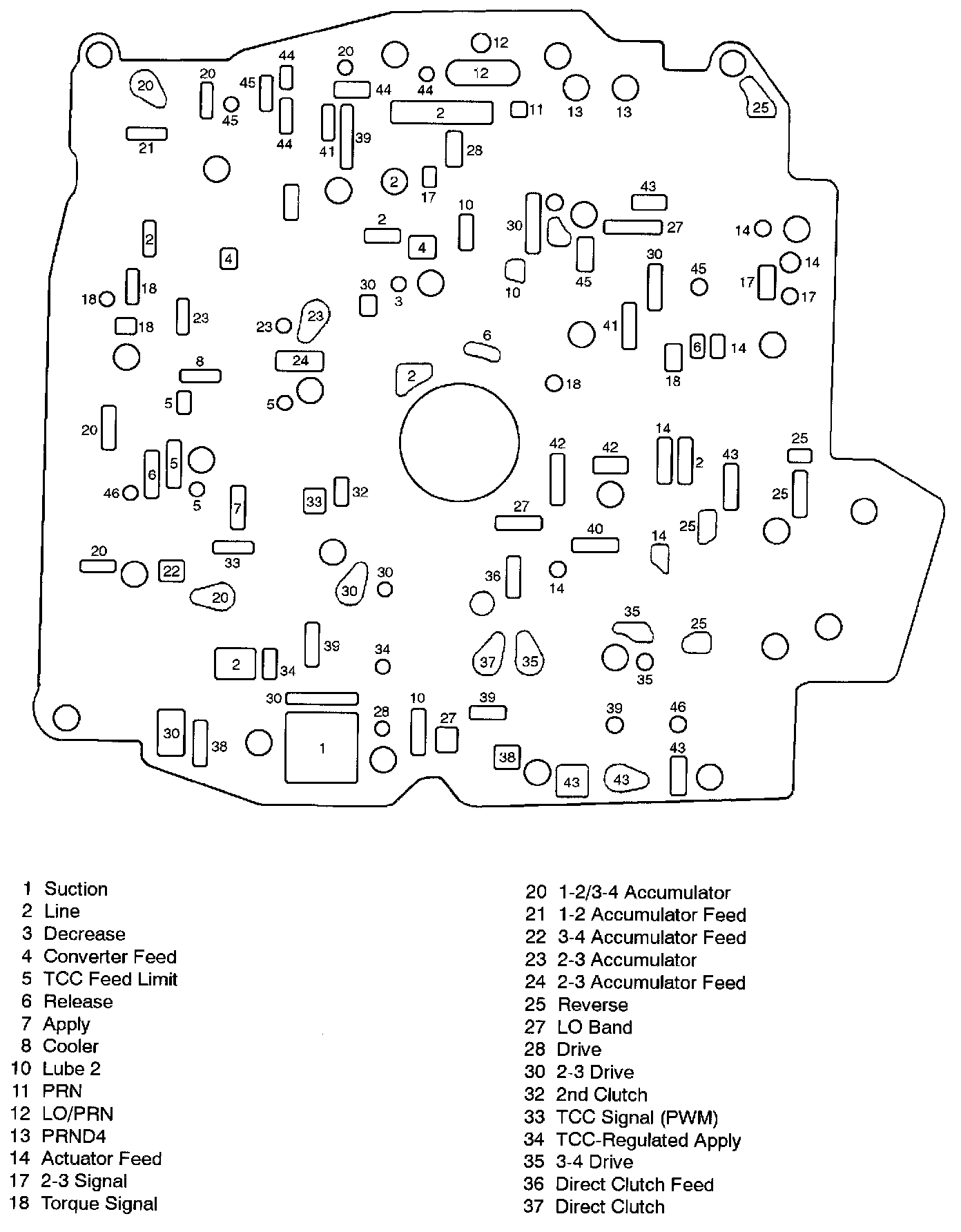

SPACER PLATE
1 of 2

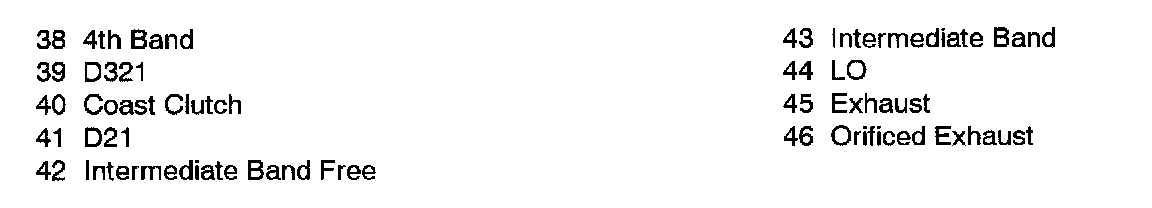

2 of 2
PUMP BODY OIL CHANNELS
4T40-E LEAK INSPECTION POINTS
ELECTRONIC COMPONENT LOCATION VIEWS
CONTROL VALVE BODY CHANNELS - CHANNEL PLATE SIDE
1 of 2
2 of 2
CONTROL VALVE BODY CHANNELS - OIL PUMP SIDE
CHANNEL PLATE PASSAGES - CONTROL VALVE BODY SIDE
