Transaxle Range Selection Switch Assembly Resistance Check
Transaxle Range Selection Switch Assembly Resistance Check
TRANSAXLE RANGE SELECTION SWITCH ASSEMBLY RESISTANCE CHECK

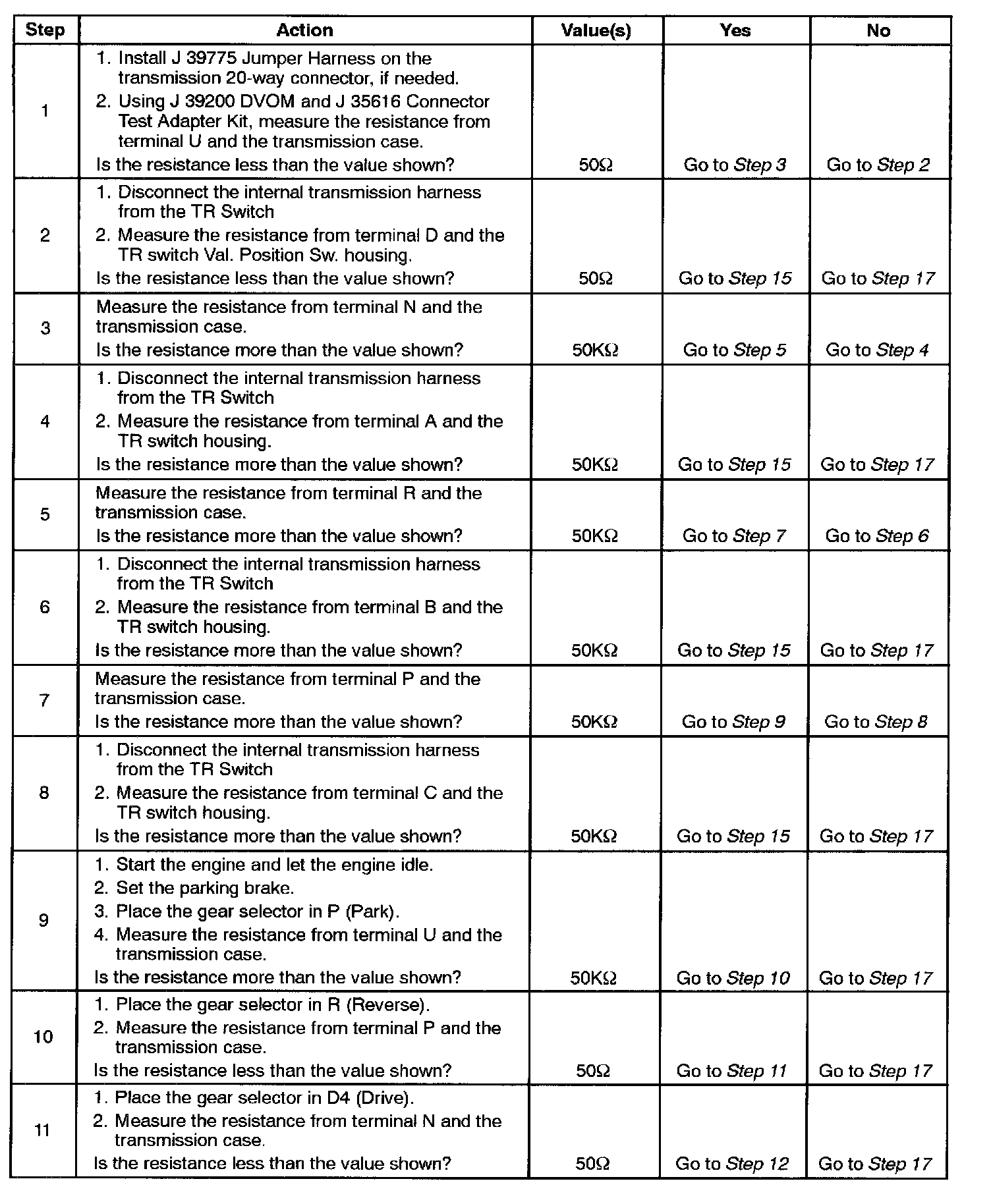

Step 1 - 11

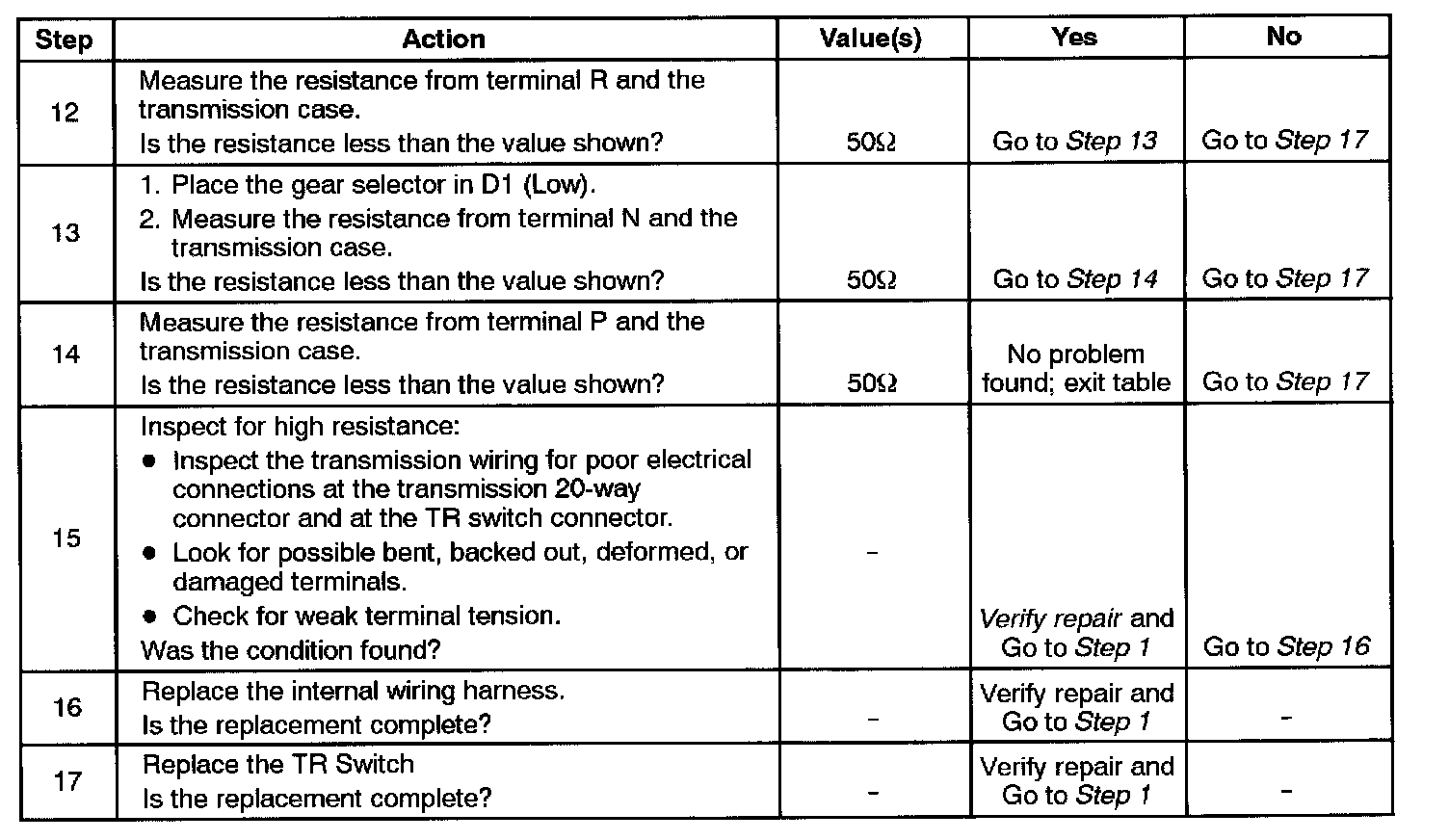

Step 12 - 17
