Connector Views
Connector Views
Connector Identification Symbol & Pin Number Position:

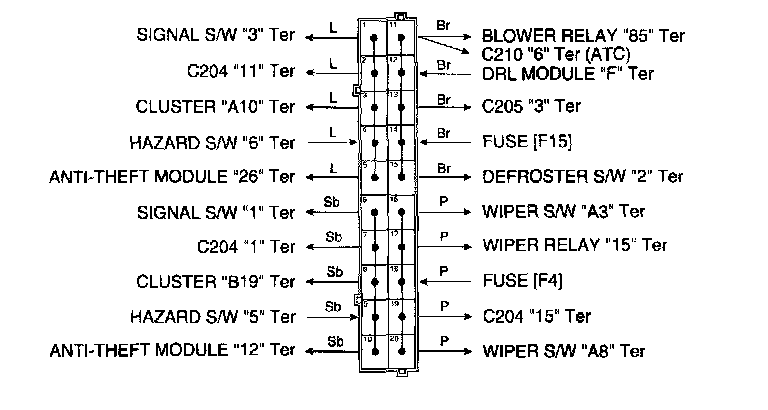

Splice Pack - S202 (Brown):

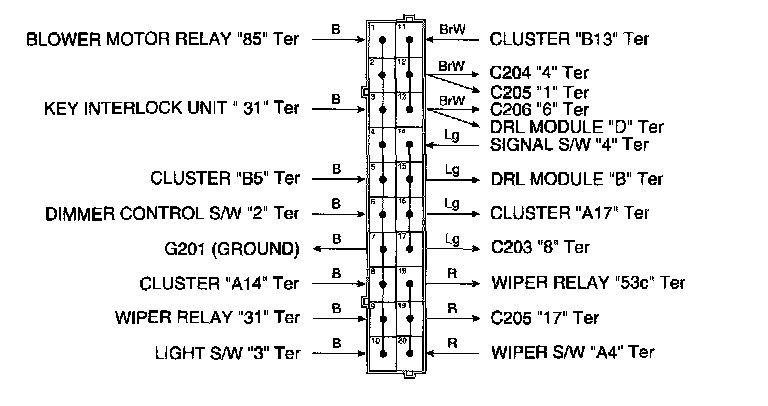

Splice Pack - S203 (Gray):

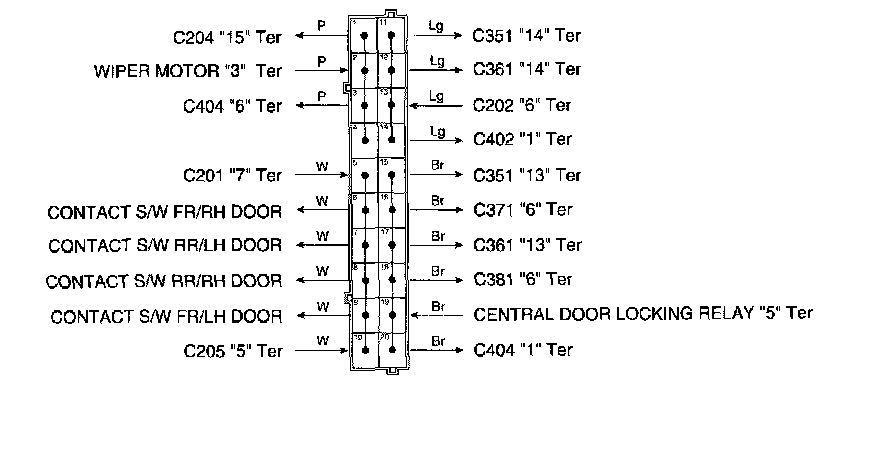

Splice Pack - S301 (Blue) - S/W:
