Glass Antenna

Removal Procedure




1. Disconnect the negative battery cable.
2. Remove the "C-pillar" trim.

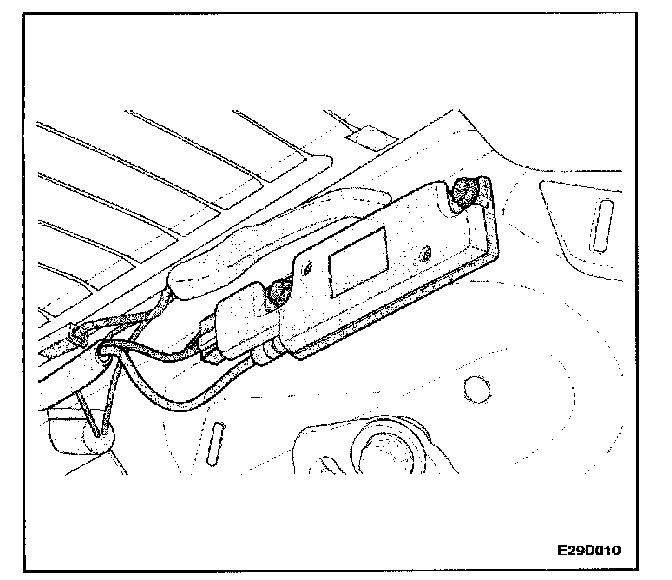

3. Disconnect the antenna cable and the electrical connector.

Installation Procedure




1. Install the glass antenna module with the electrical connector and the antenna cable.
2. Install the C-pillar trim.

Tighten
Tighten the glass antenna module bolts to 7 N.m (82 lb-in).
