Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems
Connector Identification Symbol & Pin Number Position:

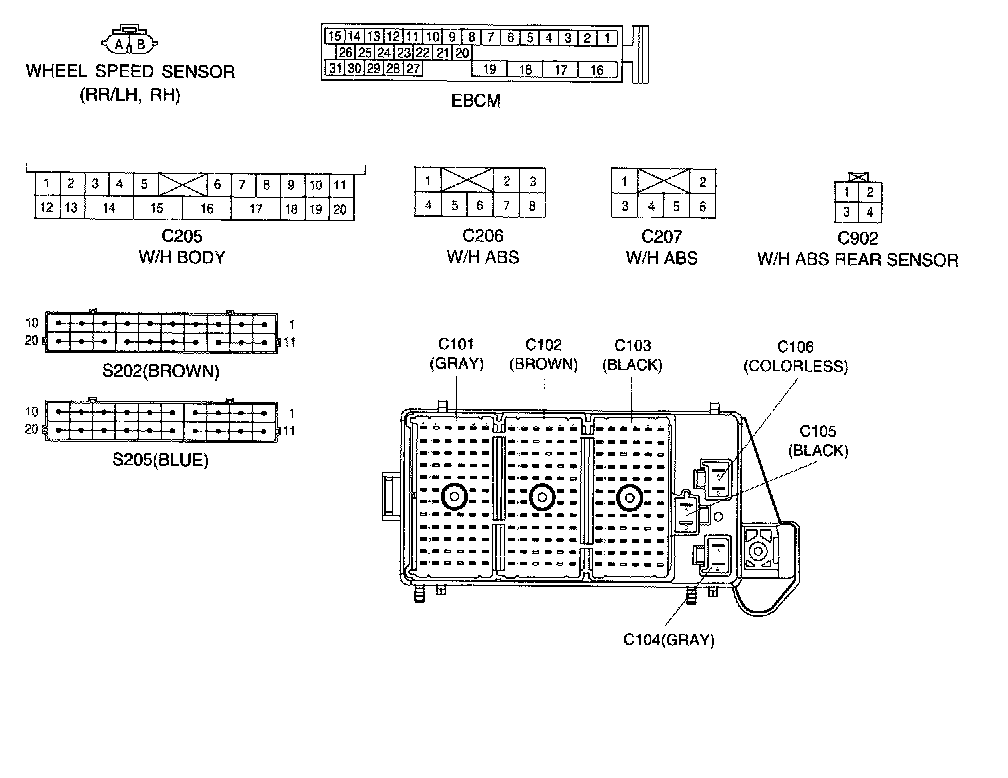

Splice Pack - S202 (Brown):
Splice Pack - S205 (Blue):
