Instrument Panel Indicator Lamps Do Not Operate
Instrument Cluster Indicator Lamps Do Not OperateStep 1 - 6:

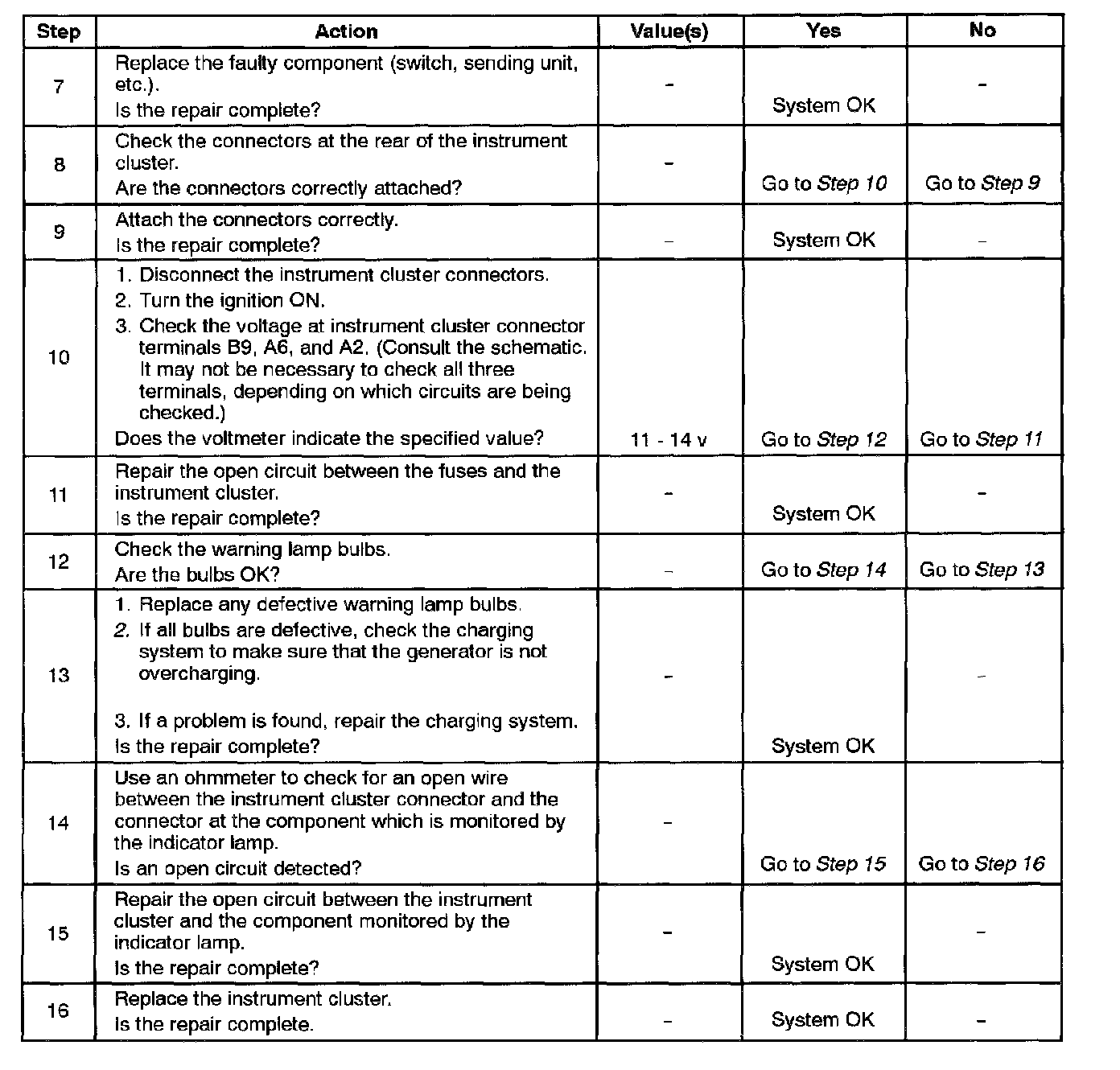

Step 7 - 16:
Diagnostic Aid
This table covers lamps powered by fuses F5 and F10: Door ajar, rear deck lid ajar, service engine soon, oil pressure battery, power, ABS, AIR BAG, low fuel warning. The ground for each circuit is provided by the component being monitored by the indicator lamp.
