Power Distribution Schematics

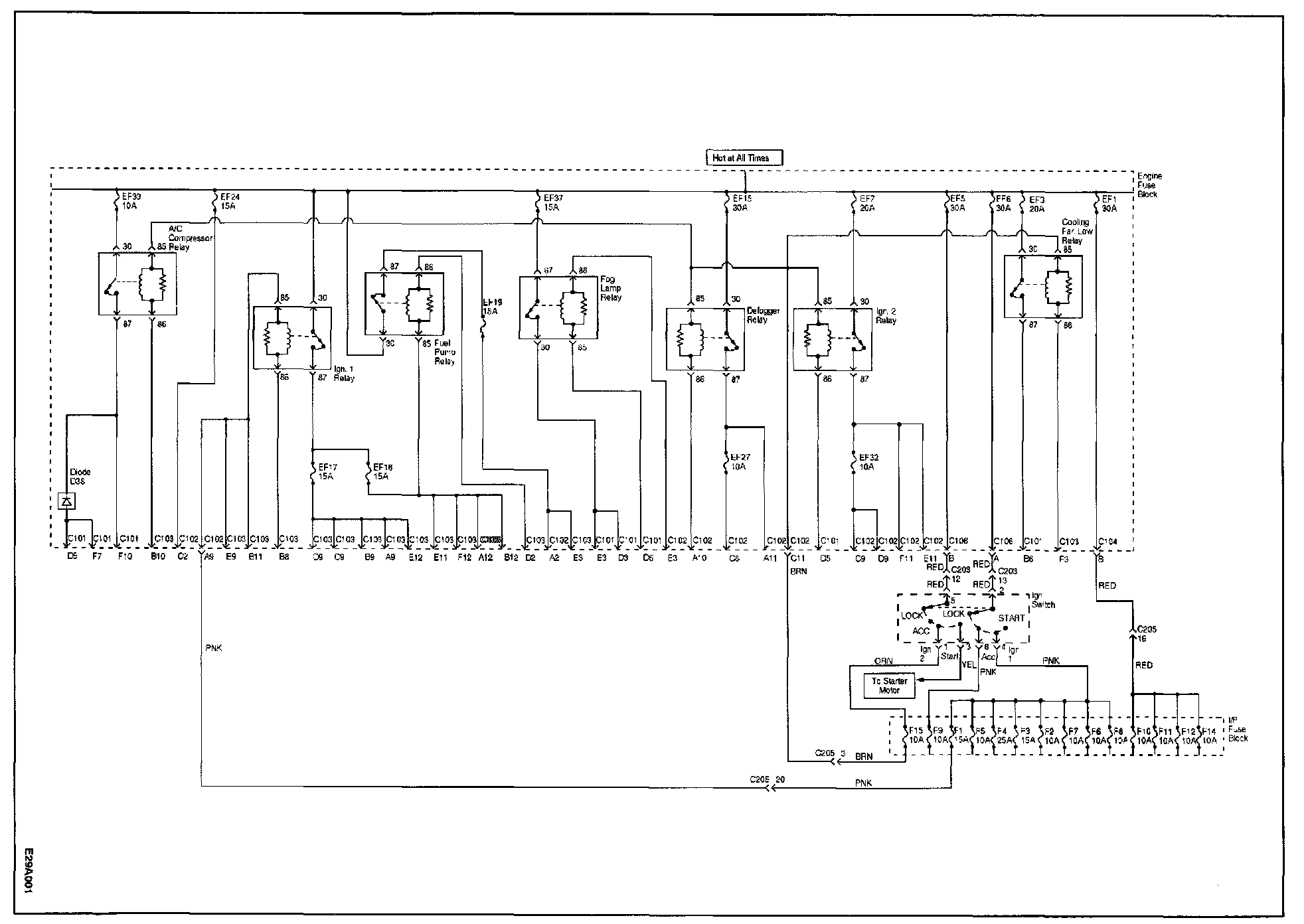

Power Distribution Schematic - Part 1:
Power Distribution Schematic - Part 2:
