Solenoid, Pressure Switch Assembly Circuits

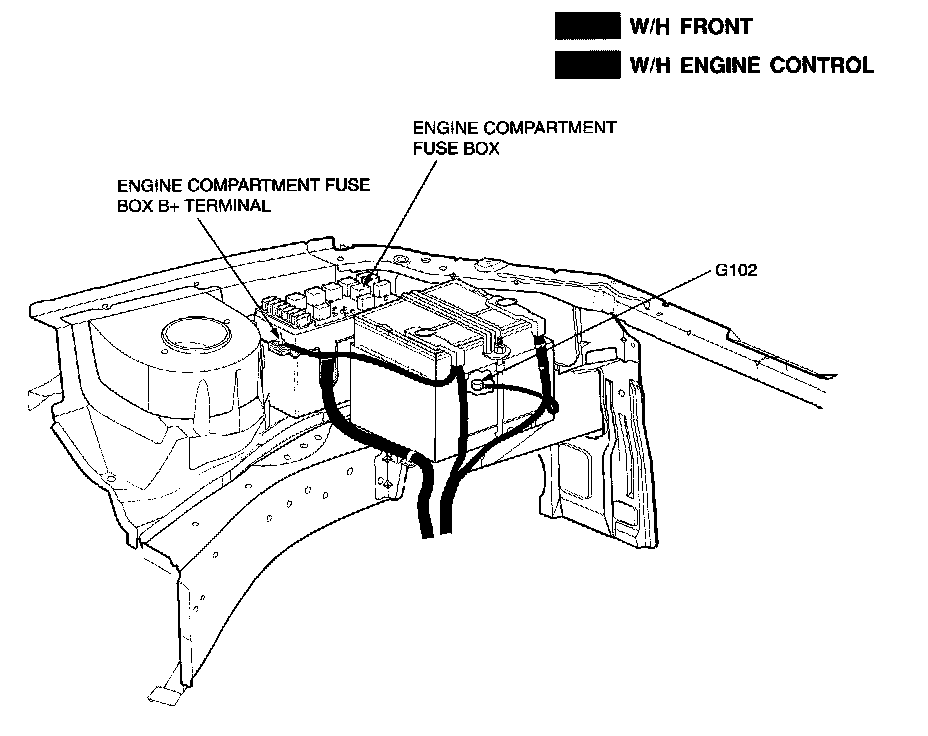

Position Of Connectors And Grounds - Engine Compartment Fuse Block:

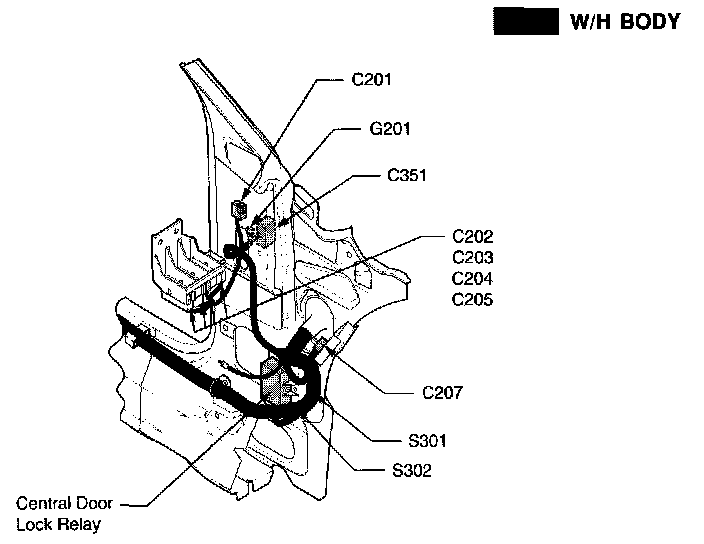

Position Of Connectors And Grounds - Left "A" Pillar Inside:

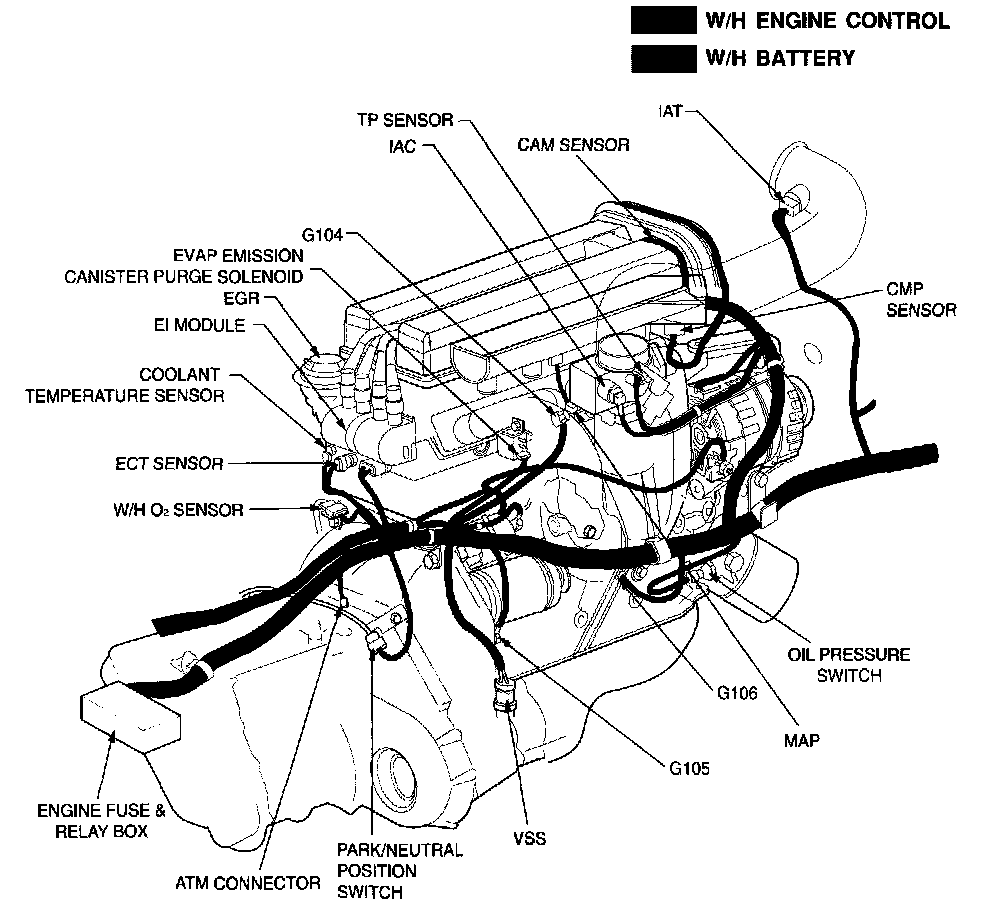

Position Of Connectors And Grounds - 2.0 DOHC Engine:
