Front Wiper Circuit
Front Wiper Circuit

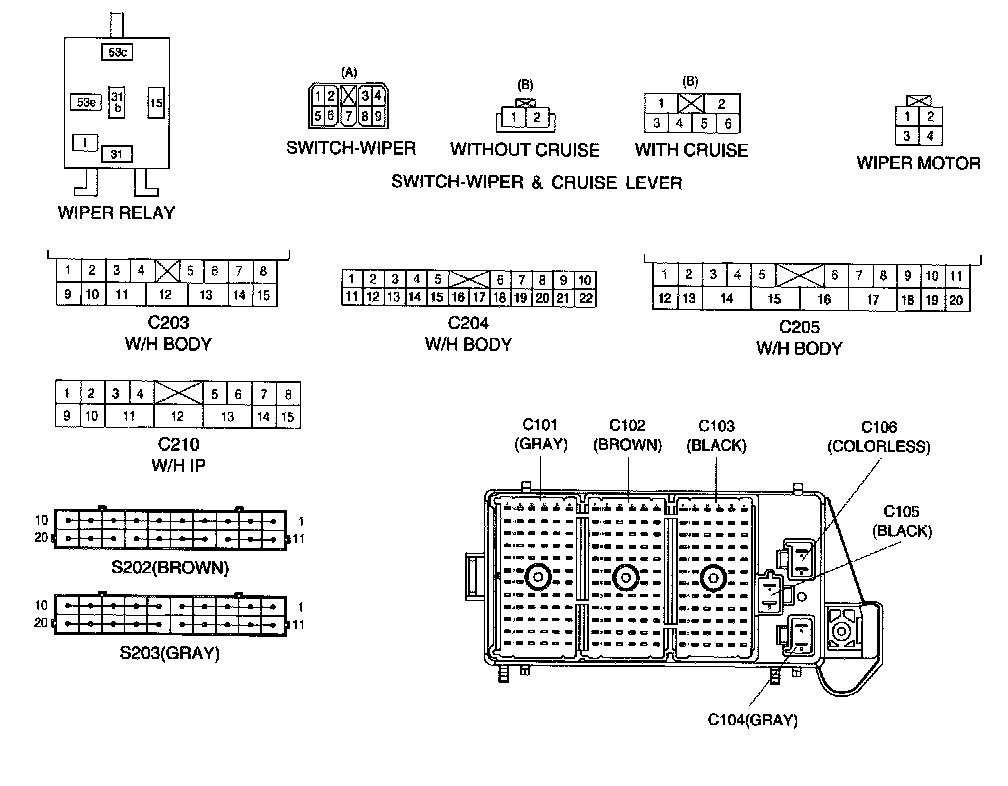

Connector Identification Symbol & Pin Number Position:

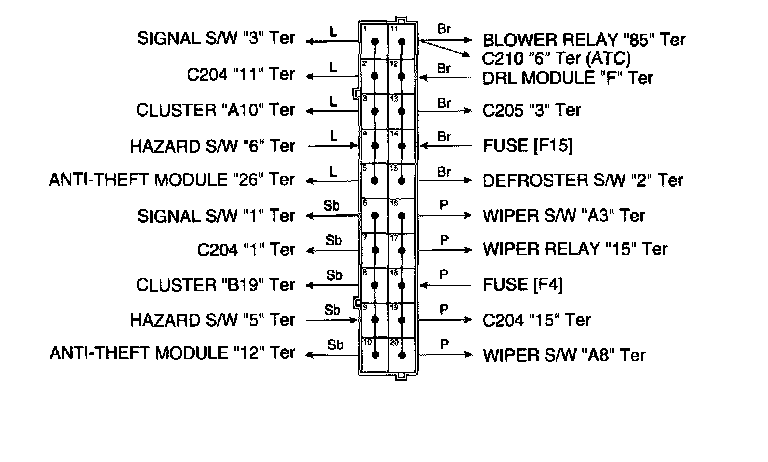

Splice Pack - S202 (Brown):

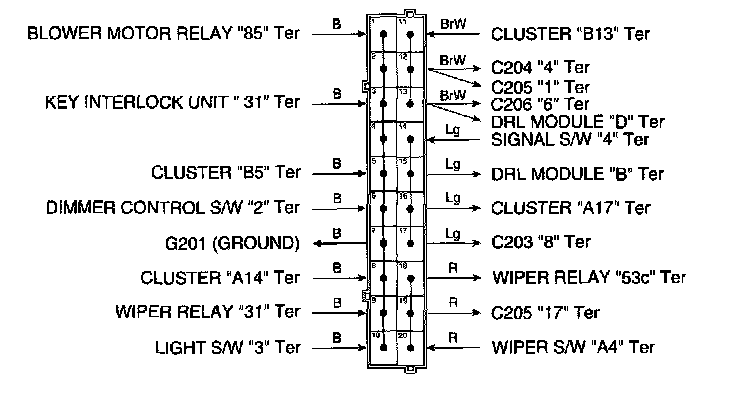

Splice Pack - S203 (Gray):
