Headlamp

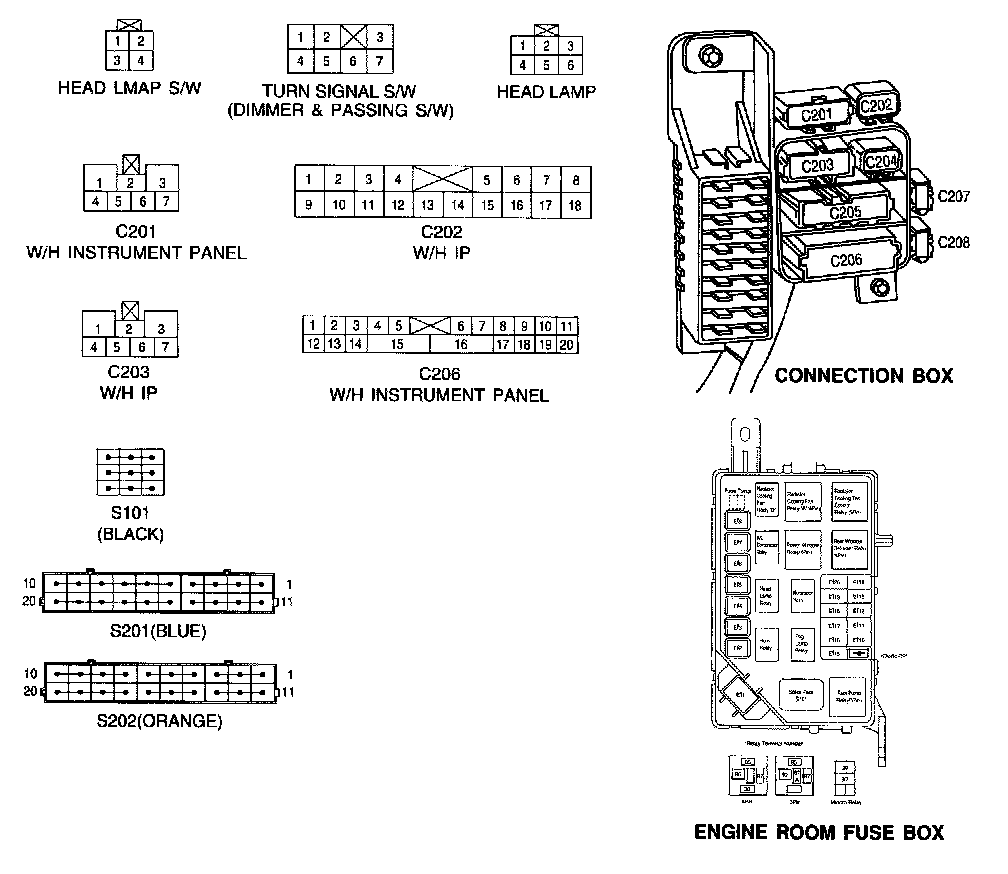

Connector Identification Symbol & Pin Number Position:

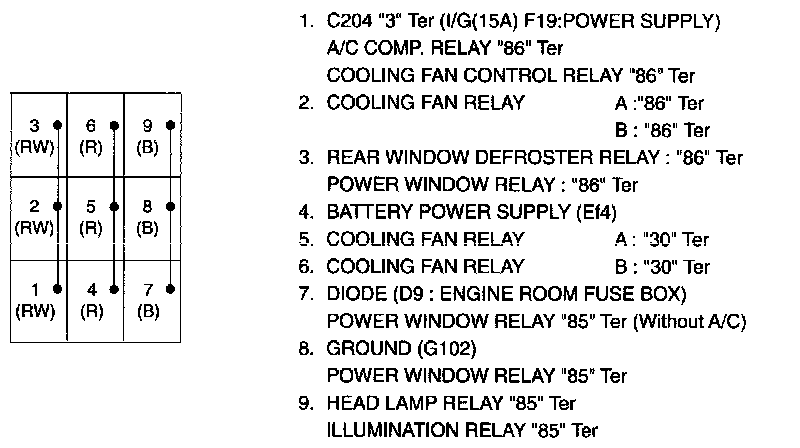

Splice Pack - S101 (Black):

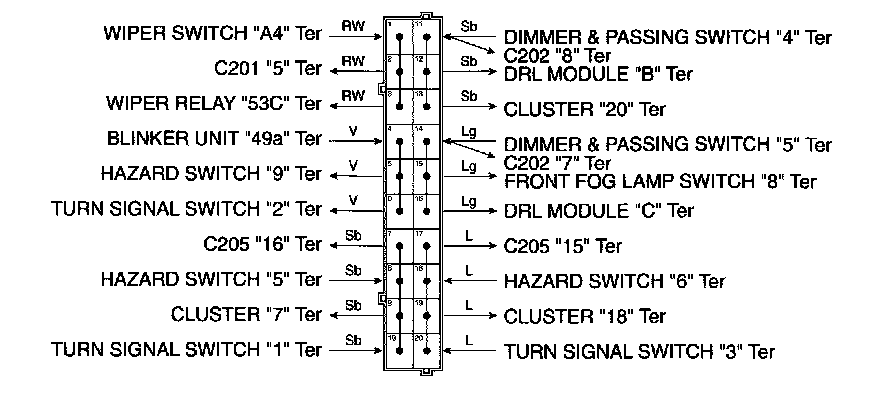

Splice Pack - S201 (Blue):

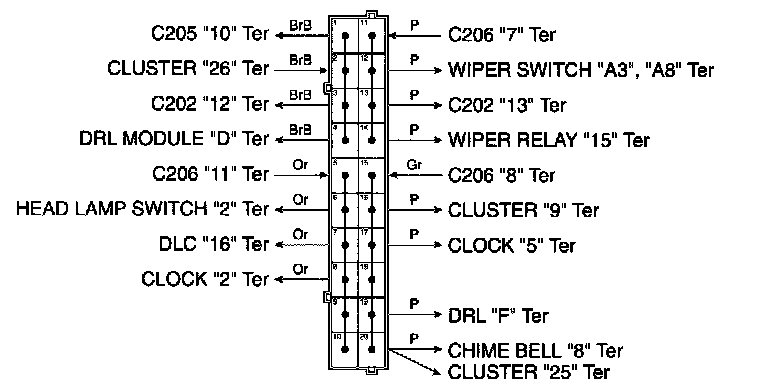

Splice Pack - S202 (Orange):
