Only Front Power Window (Non Sporty Pack)
Only Front Power Window (Non Sporty Pack)

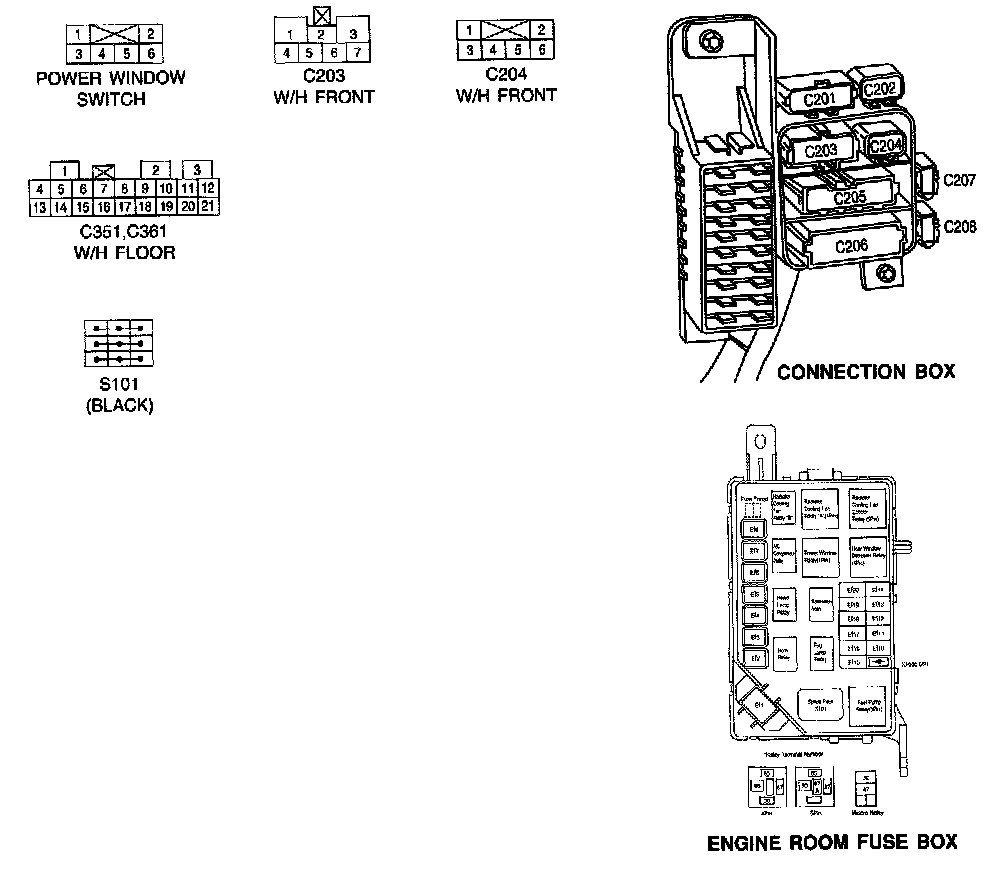

Connector Identification Symbol & Pin Number Position:
Splice Pack - S101 (Black):
