Fog/Driving Lamp: Service and Repair
FOG LAMPSREMOVAL PROCEDURE
1. Disconnect the negative battery cable.

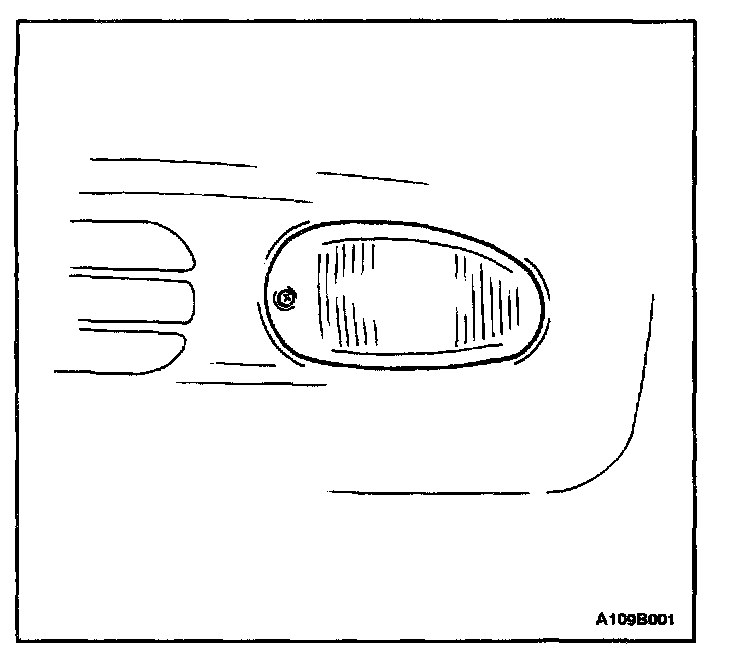

2. Remove the screw securing the fog lamp assembly.
3. Remove the fog lamp assembly.

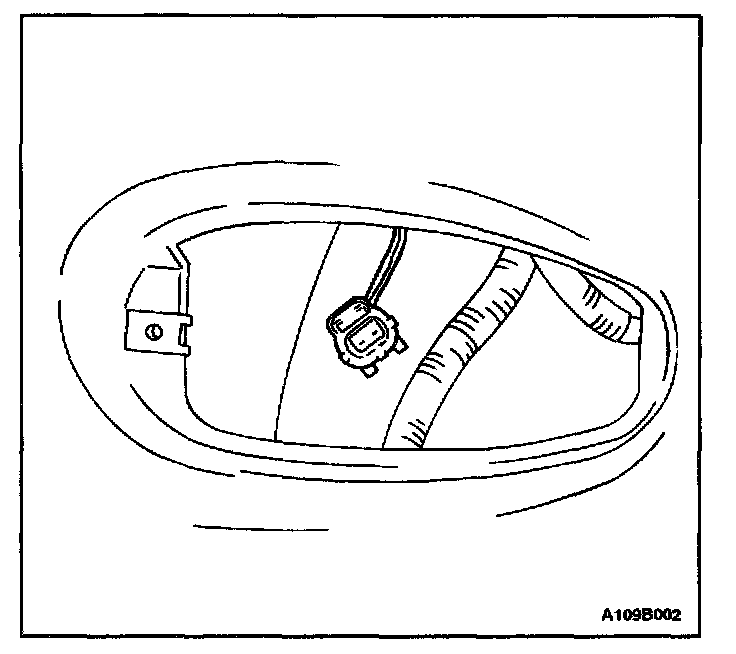

4. Disconnect the electrical connector.

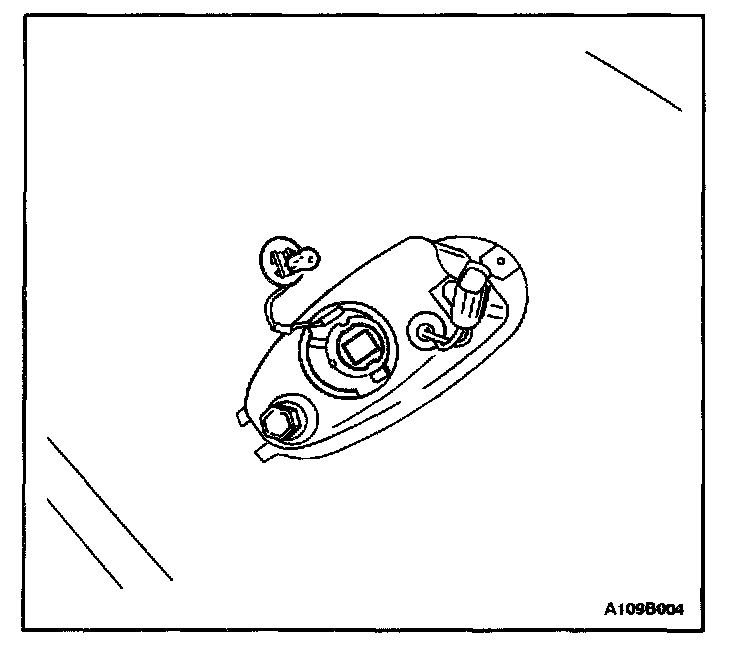

5. Remove the fog lamp access cover.
6. Remove the retaining wire.

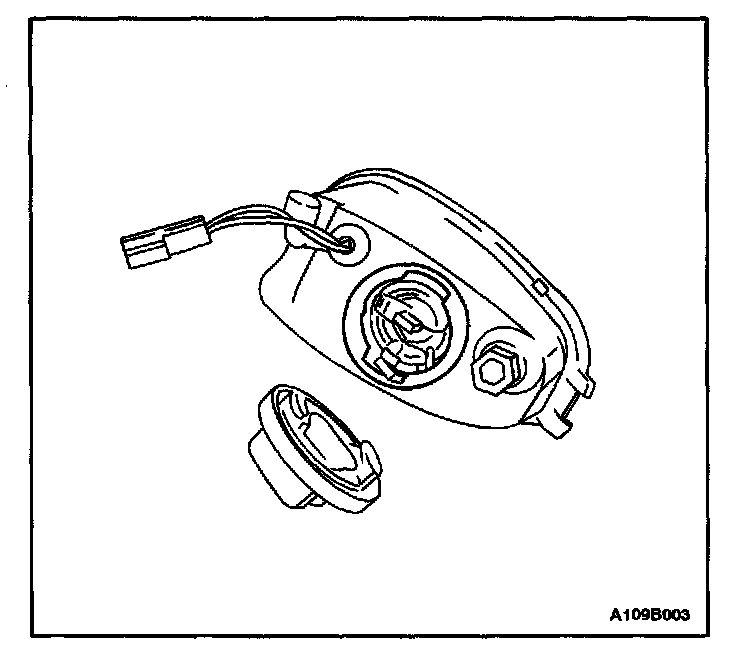

7. Remove the bulb.
INSTALLATION PROCEDURE
1. Install the bulb.
2. Install the retaining wire.
3. Install the fog lamp access cover.

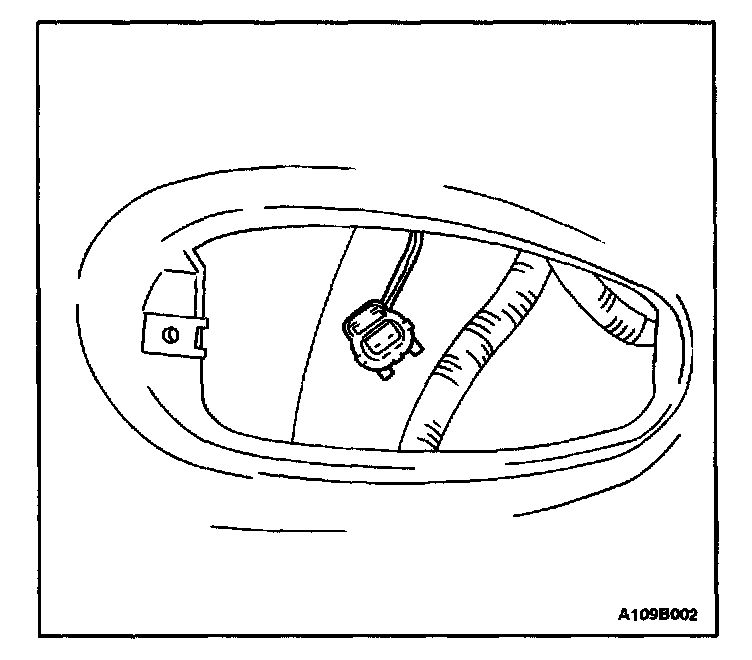

4. Connect the electrical connector.
5. Install the tog lamp assembly.
NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
6. Secure the fog lamp assembly with the screw.
Tighten
Tighten the front tog lamp assembly screw to 3 N.m (27 lb-in).
7. Connect the negative battery cable.
