Home >> Daewoo >> 2002 >> Lanos S Hatchback L4-1.6L DOHC D-TEC MFI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Connector Views >> Engine Malfunction Indicator Lamp, Engine Hot Warning & DLC CKT

Engine Malfunction Indicator Lamp, Engine Hot Warning & DLC CKT

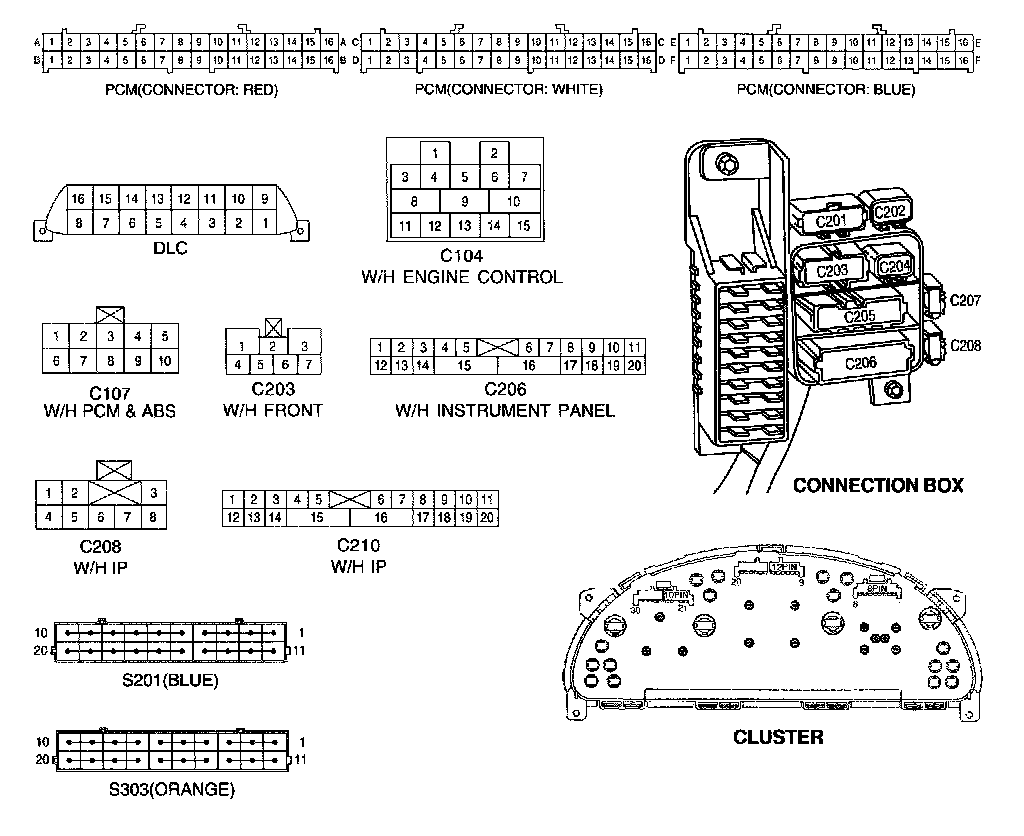

Connector Identification Symbol & Pin Number Position:

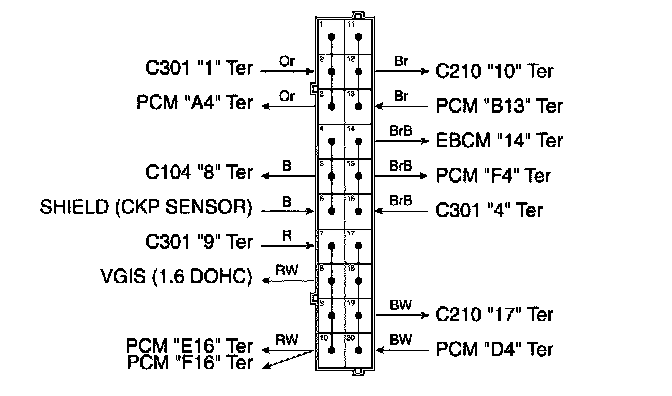

Splice Pack - S201 (Blue):

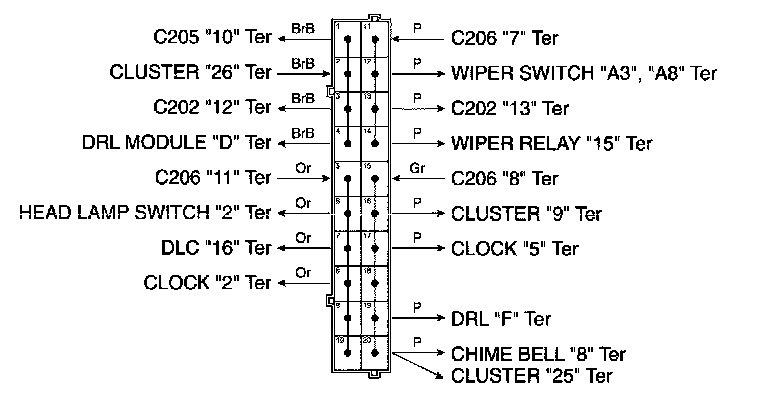

Splice Pack - S303 (Orange):
