Power Warning Lamp, Stop Lamp & DLC Circuits
Power Warning Lamp, Stop Lamp & DLC Circuits

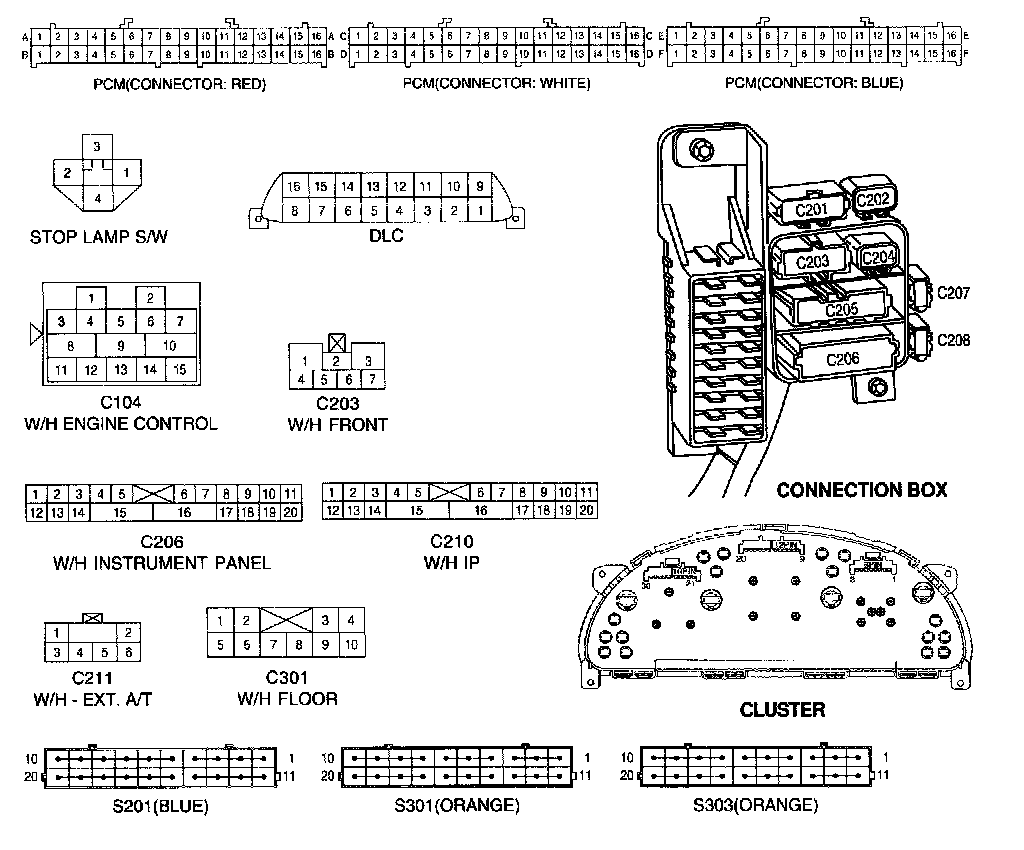

Connector Identification Symbol & Pin Number Position:

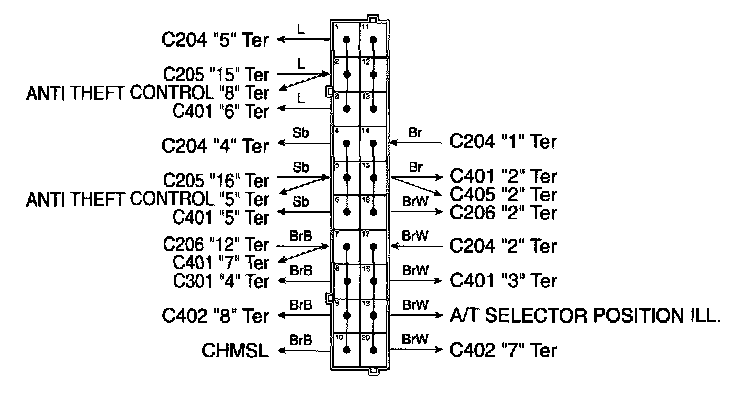

Splice Pack - S201 (Blue):
Splice Pack - S301 (Orange) - Notch Back:
Splice Pack - S303 (Orange):
