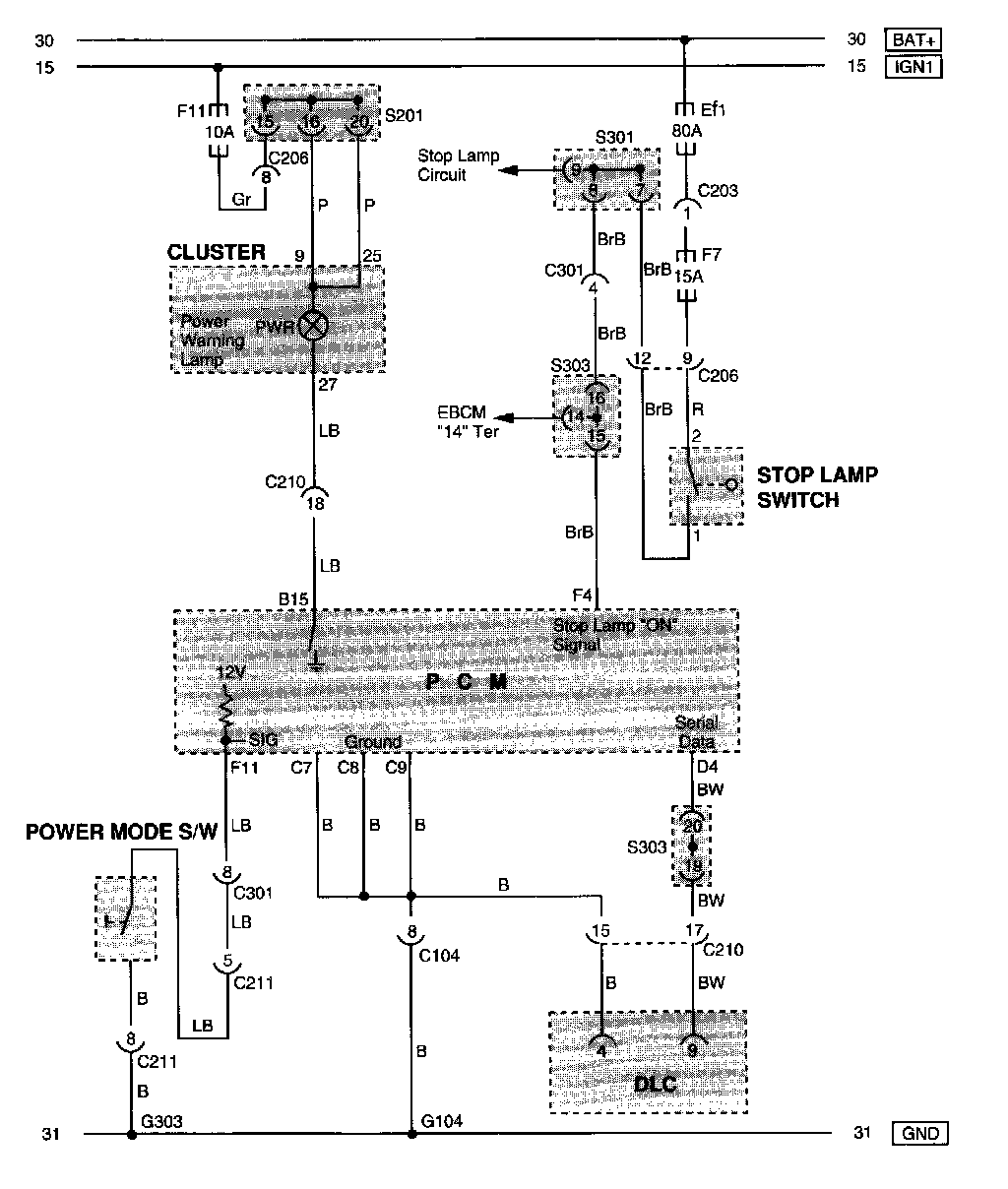

Power Warning Lamp, Stop Lamp & DLC Circuit
Power Warning Lamp, Stop Lamp & DLC Circuit
Electrical Wiring Diagram:
