Sensor (CMP, Heated O2, O2), VGIS (DOHC), ESDS & CCCP Circuit
Sensor (CMP, Heated O2, O2), VGIS (DOHC), ESDS & CCCP Circuit

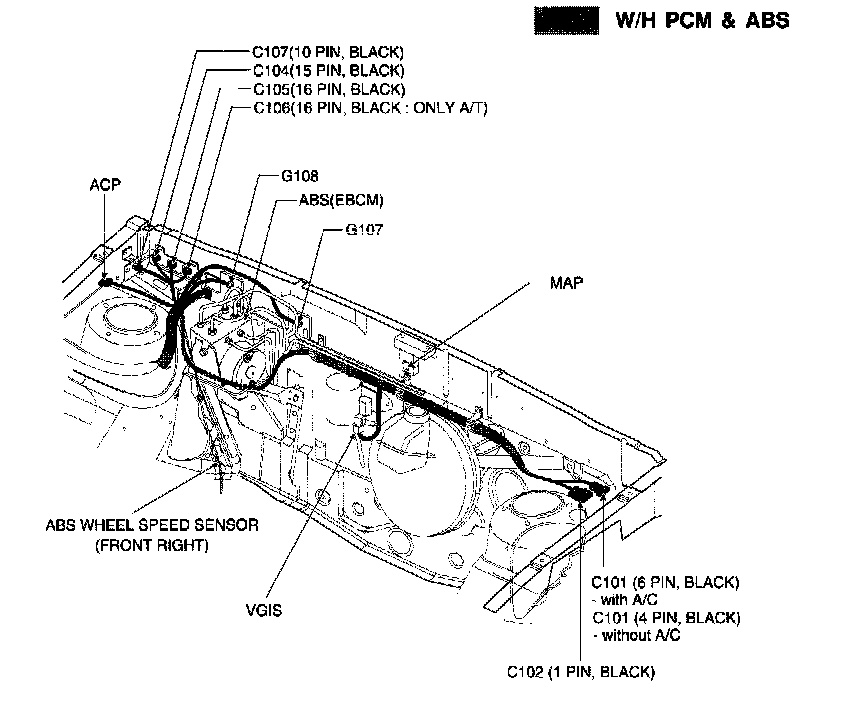

Position Of Connectors And Grounds - Engine Room Inside:

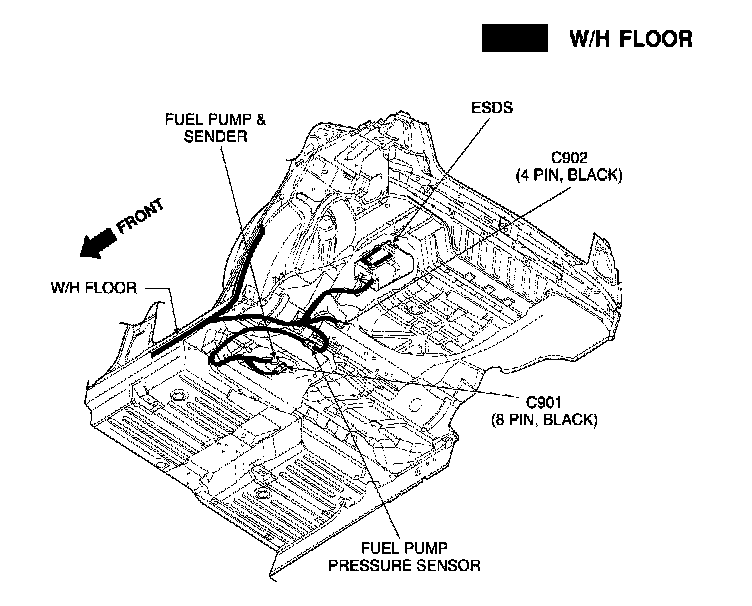

Position Of Connectors And Grounds - W/H Floor, Fuel Tank:

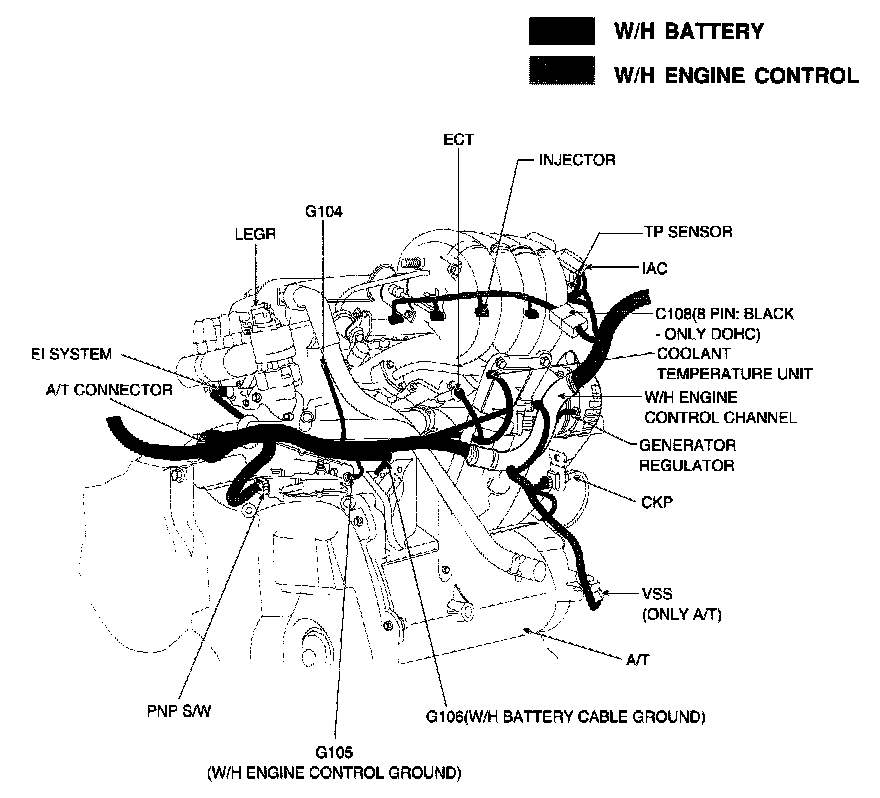

Position Of Connectors And Grounds - DOHC Engine:
