Connector Views

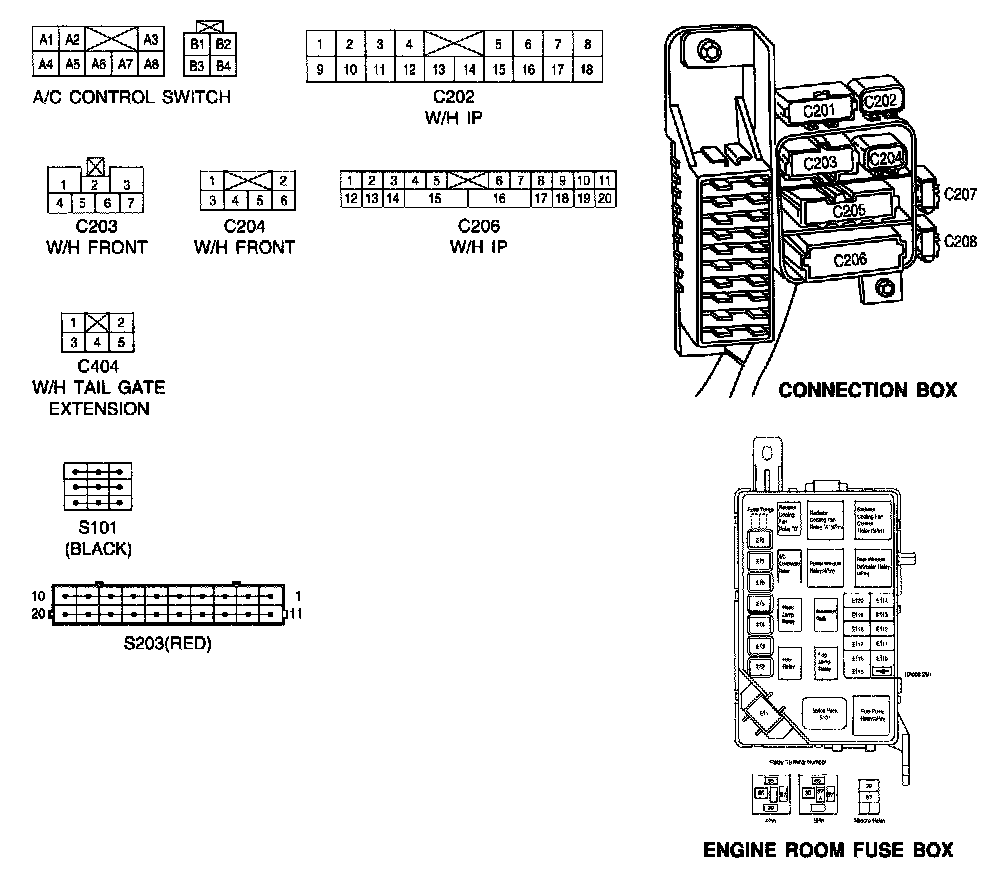

Connector Identification Symbol & Pin Number Position:

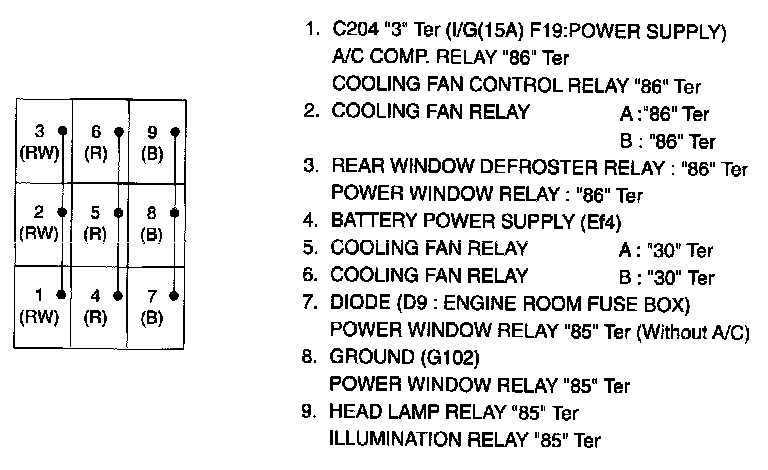

Splice Pack - S101 (Black):



Splice Pack - S203 (Red):
