Parking/Marker Lamp (LH) & Switch Position Illumination Circuit
Parking/Marker Lamp (LH) & Switch Position Illumination Circuit

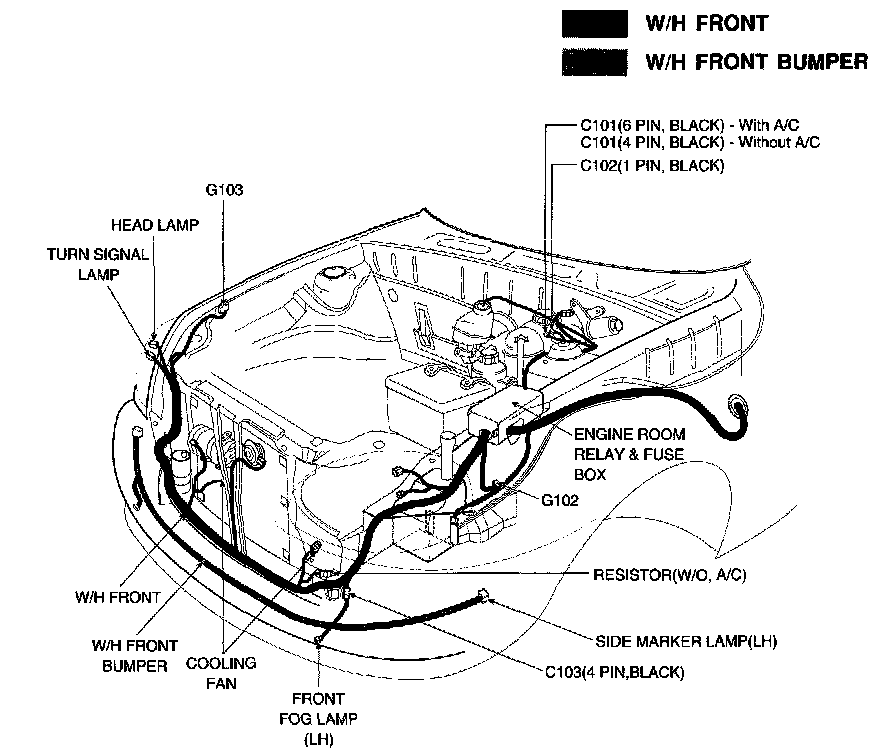

Position Of Connectors And Grounds - W/H Front, Front Bumper:
Position Of Connectors And Grounds - Rear Bumper:
