Hub and Bearing Assembly Without ABS
HUB AND BEARING ASSEMBLY WITHOUT ABSTools Required
- J-36791 Installer
- KM-266-A Installer
Removal Procedure
1. Raise and suitably support the vehicle.
2. Remove the wheel.
3. Loosen the parking brake cable.

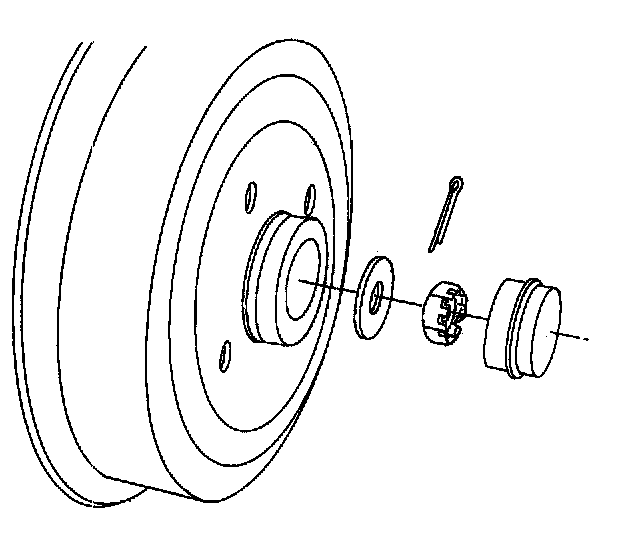

4. Remove the dust cap, the cotter pin, the spindle nut and the lock washer.

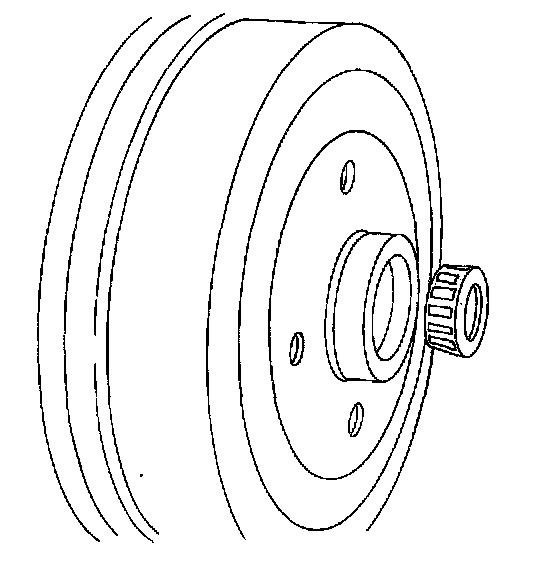

5. Remove the wheel hub and the outer tapered roller bearing.
6. Pry the seal ring from the inside of the wheel hub with a screwdriver.
7. Remove the inner tapered roller bearing from the wheel hub.

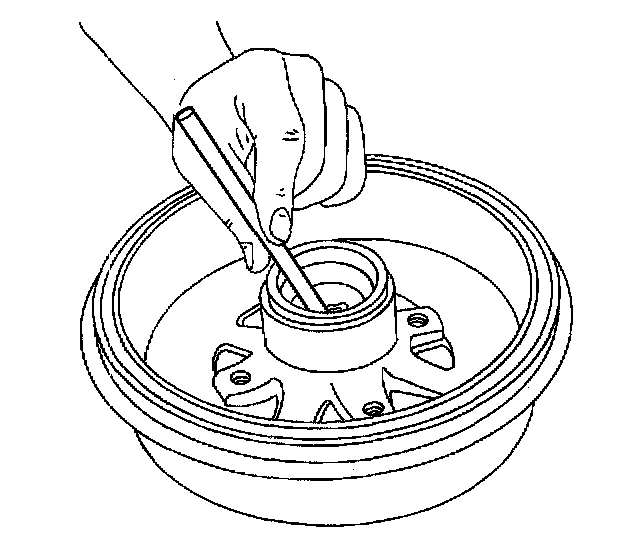

8. Remove the races of the inner and the outer bearings from the wheel hub using a drift.
9. Clean the spindle and check it for damage.
Installation Procedure

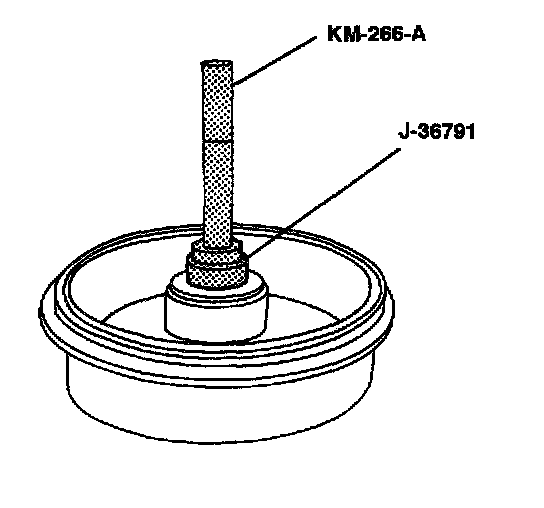

1. Press the outer race of the outer bearing into the wheel hub using installers J-36791 and KM-266-A.
2. Press the outer race of the inner bearing into the wheel hub using installers J-36791 and KM-266-A.

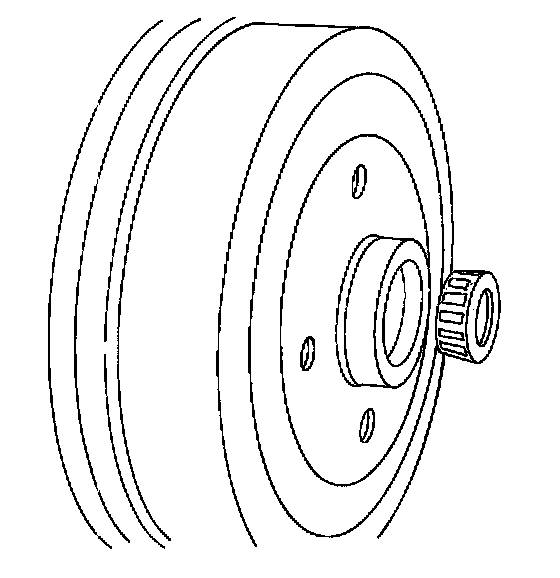

3. Install the inner tapered roller bearing.
4. Coat or fill all the hollow spaces of both wheel bearings, the ring seal lip, and the wheel hub with anti-friction grease. Press the seal into the hub.
5. Install the hub and bearing assembly onto the rear axle spindle.

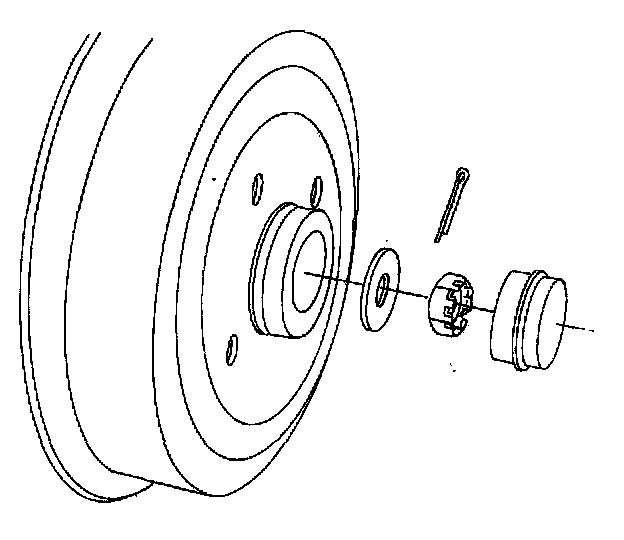

6. Install the lock washer and spindle nut. Hand tighten the spindle nut.
7. Install the brake drum detent screw.
8. Mount the rear wheel.
9. Adjust the wheel bearing.
10. Adjust the parking brake.
11. Install the dust cap.
12. Lower the vehicle.
