Home >> Daewoo >> 2002 >> Leganza SE L4-2.2L DOHC D-TEC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems

Antilock Brakes / Traction Control Systems

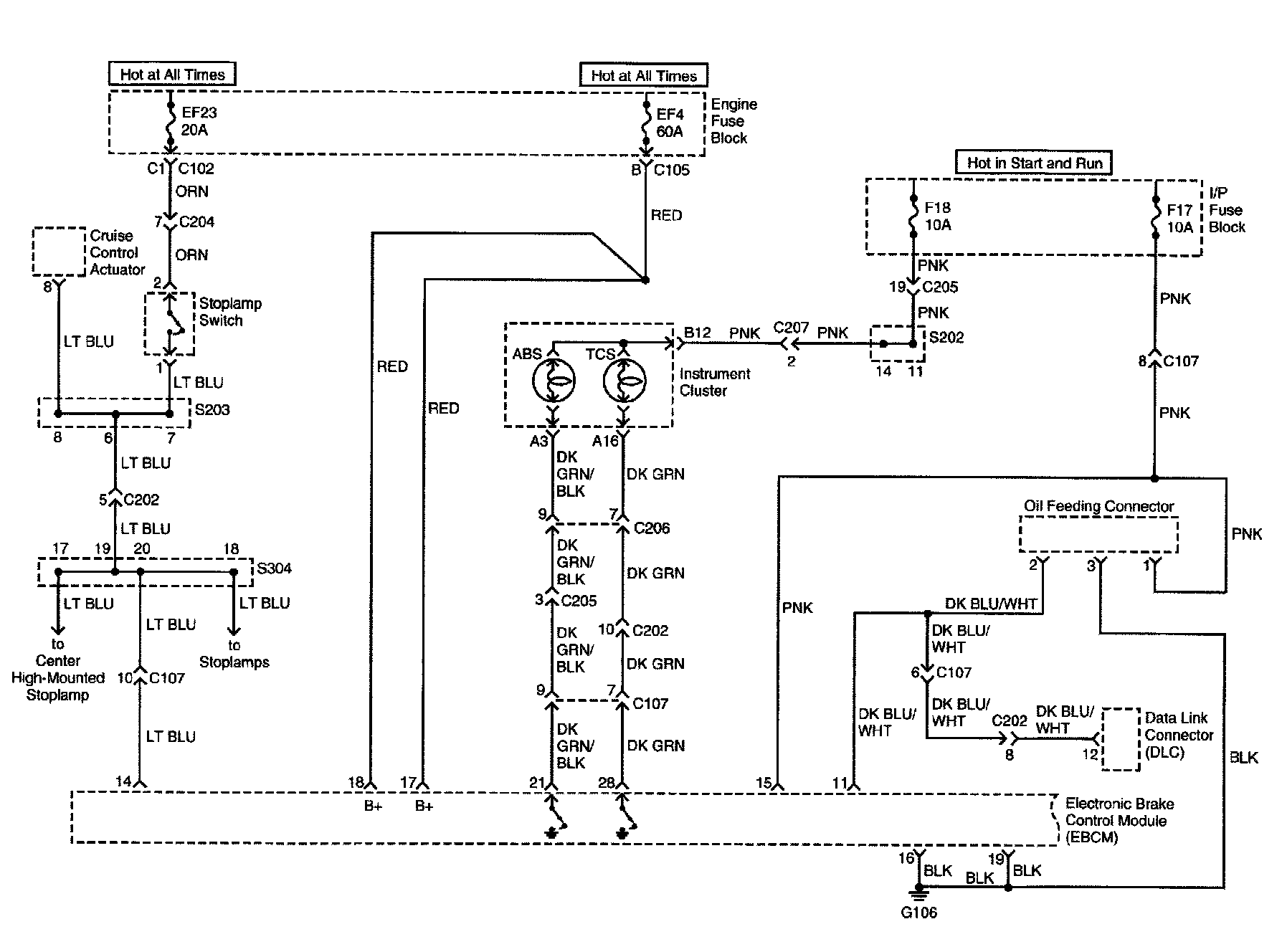

SCHEMATIC AND ROUTING DIAGRAMS





Part 1 of 2





Part 2 of 2
