Harness

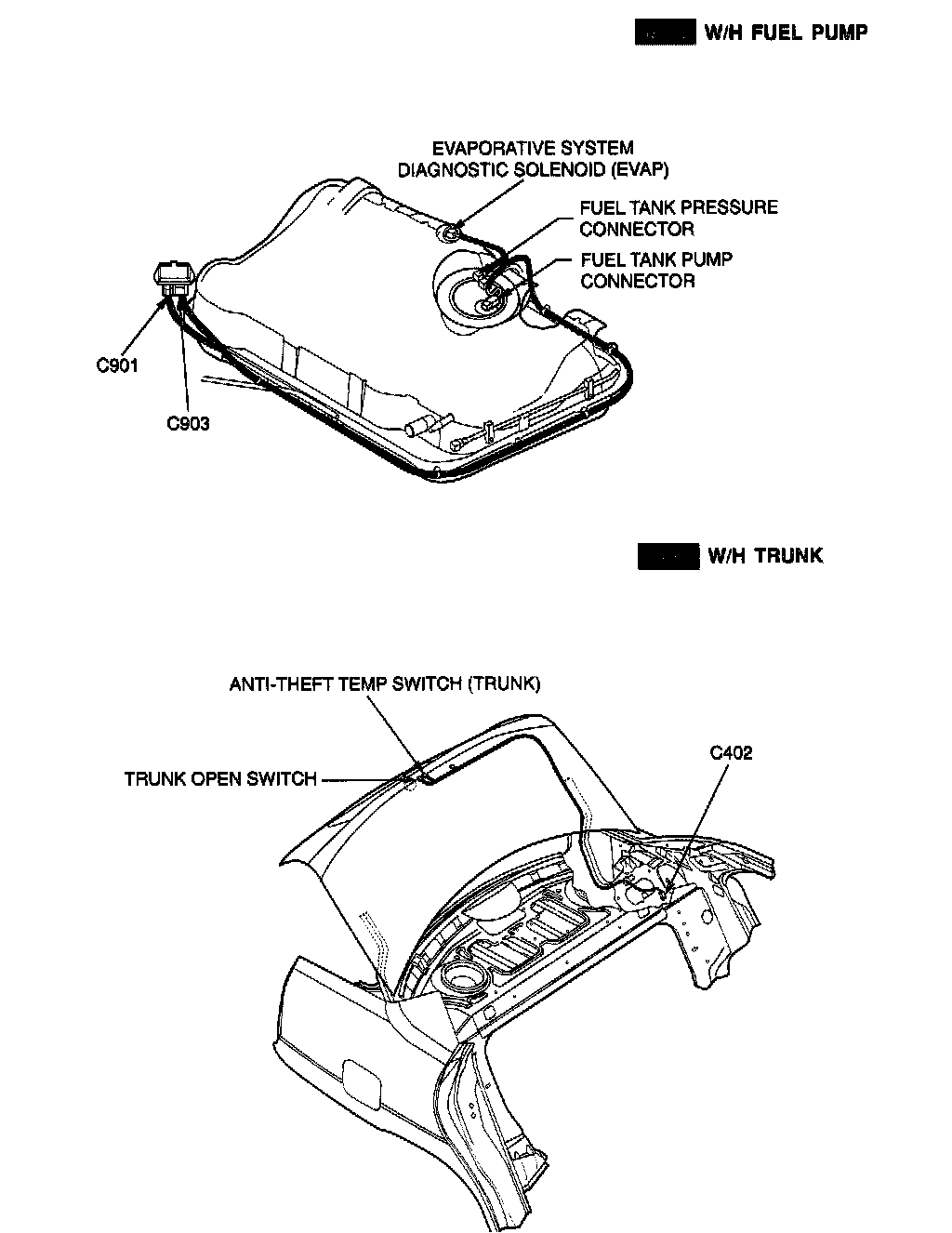

Fuel Tank, Trunk Lid:

Wiring Harness & Ground & Splice Pack Location:

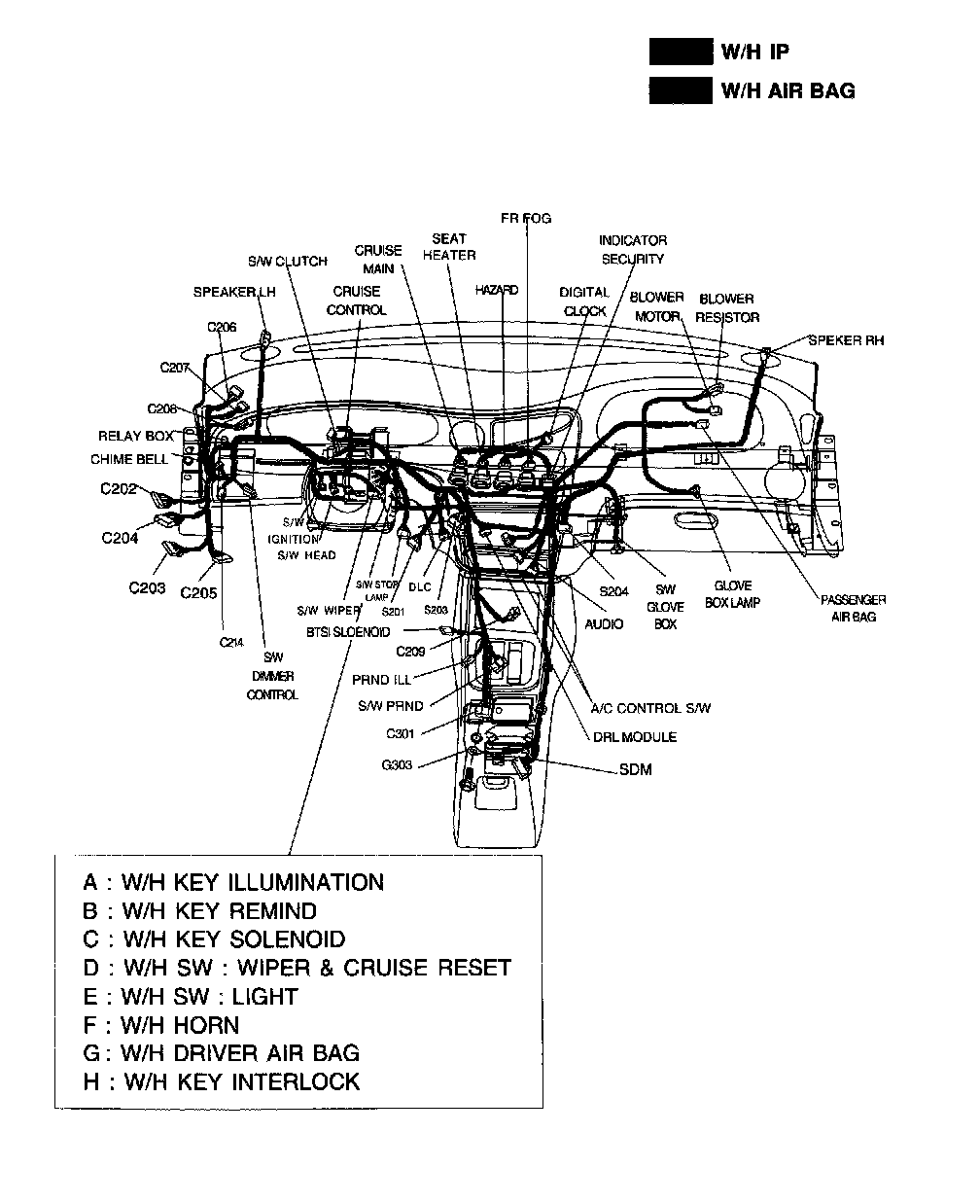

W/H Instrument Panel:

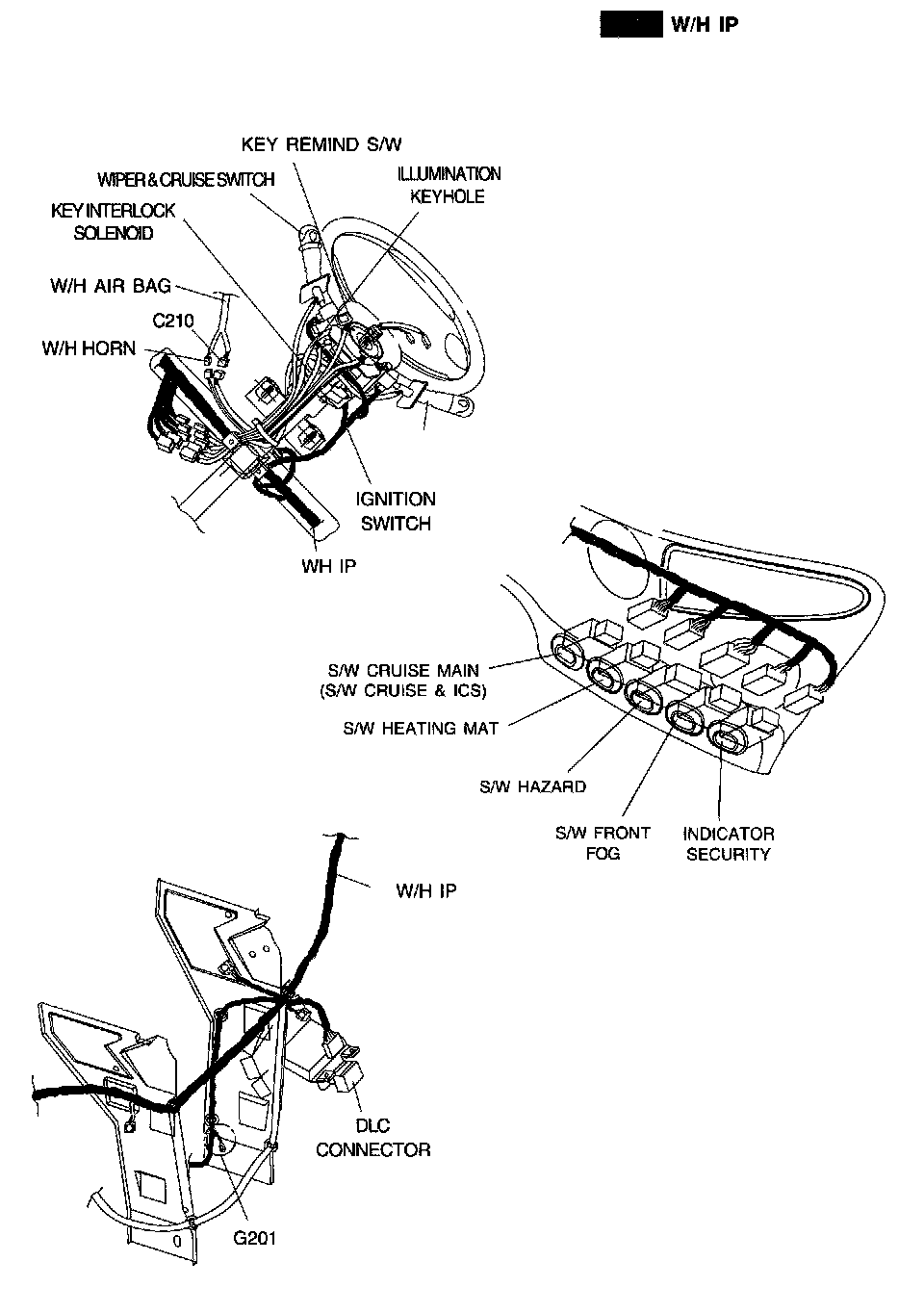

W/H Instrument In Detail - Part 1:

W/H Instrument In Detail - Part 2:

W/H Front:

W/H Battery:

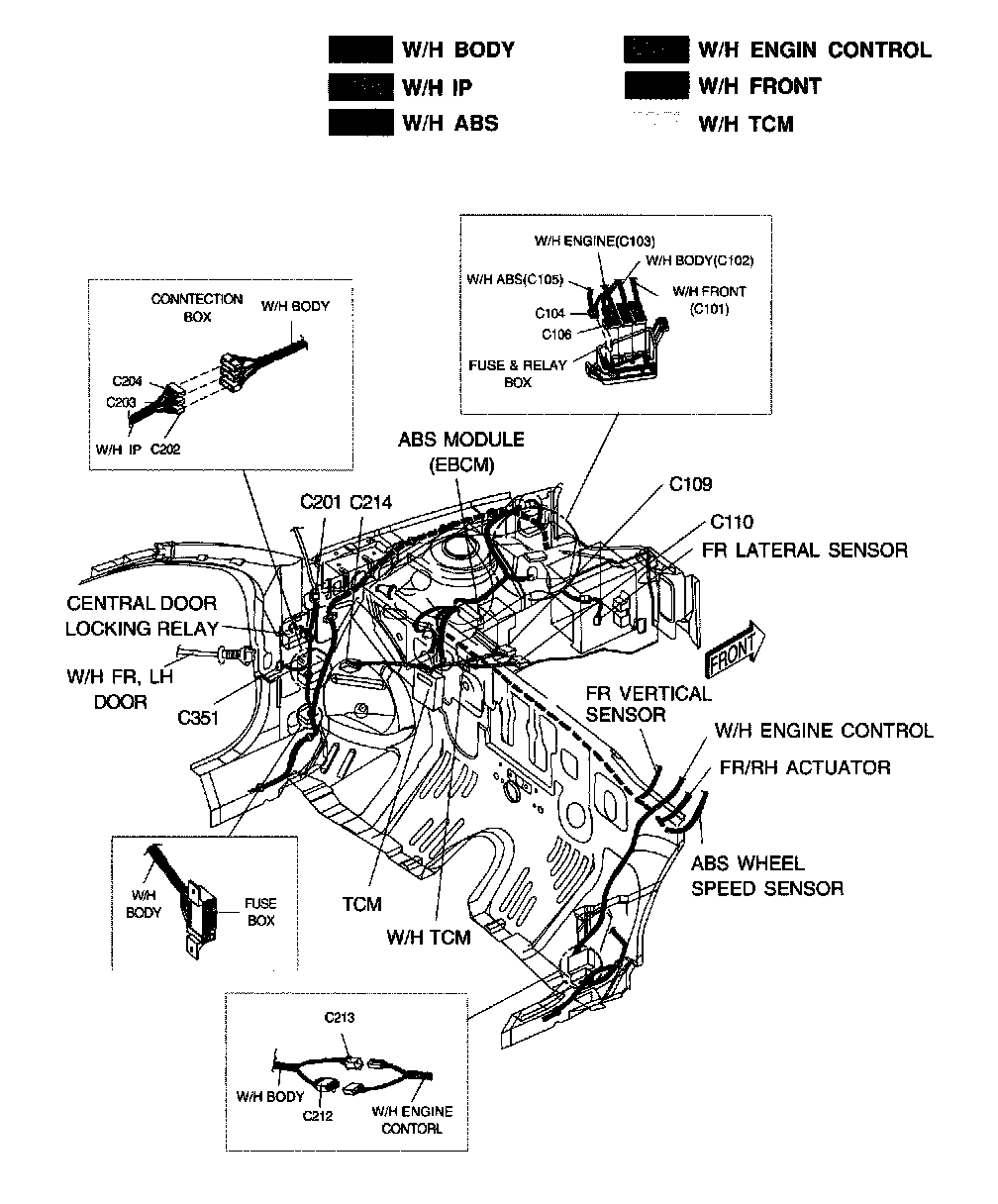

W/H Body, ABS & TCM:

W/H Engine Control (2.2 DOHC Engine):

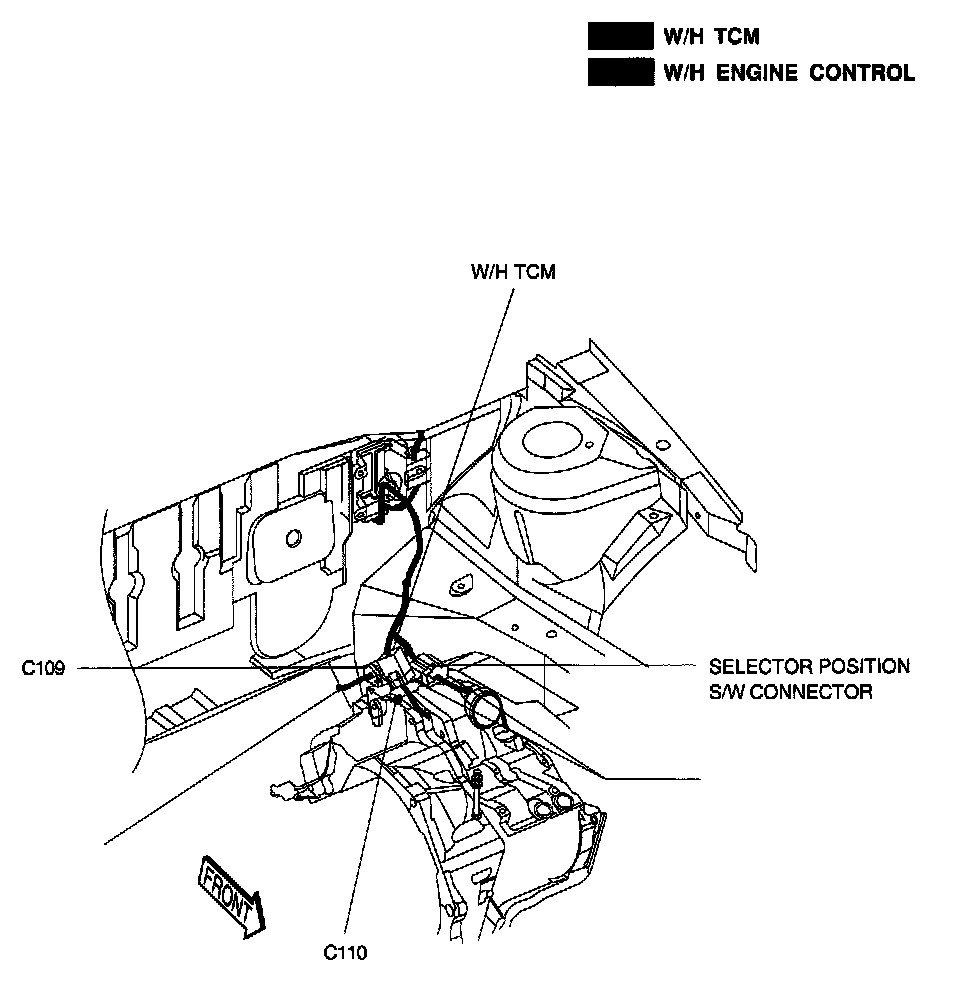

W/H Engine Control (W/H TCM):

W/H Engine Control (W/H Injector):

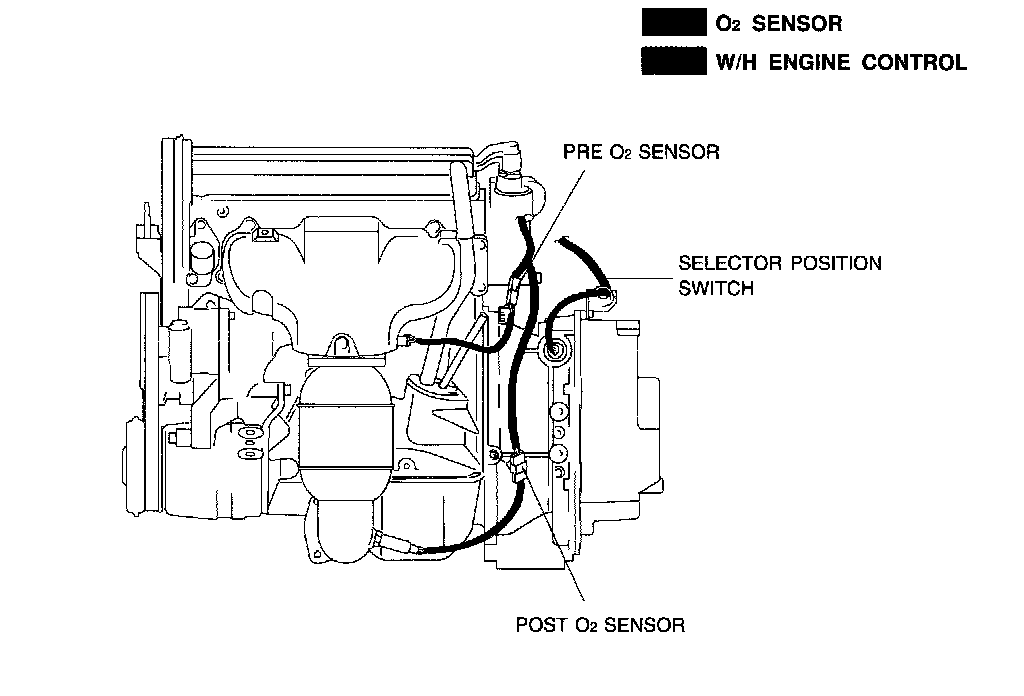

W/H Engine Control (W/H O2 Sensor):

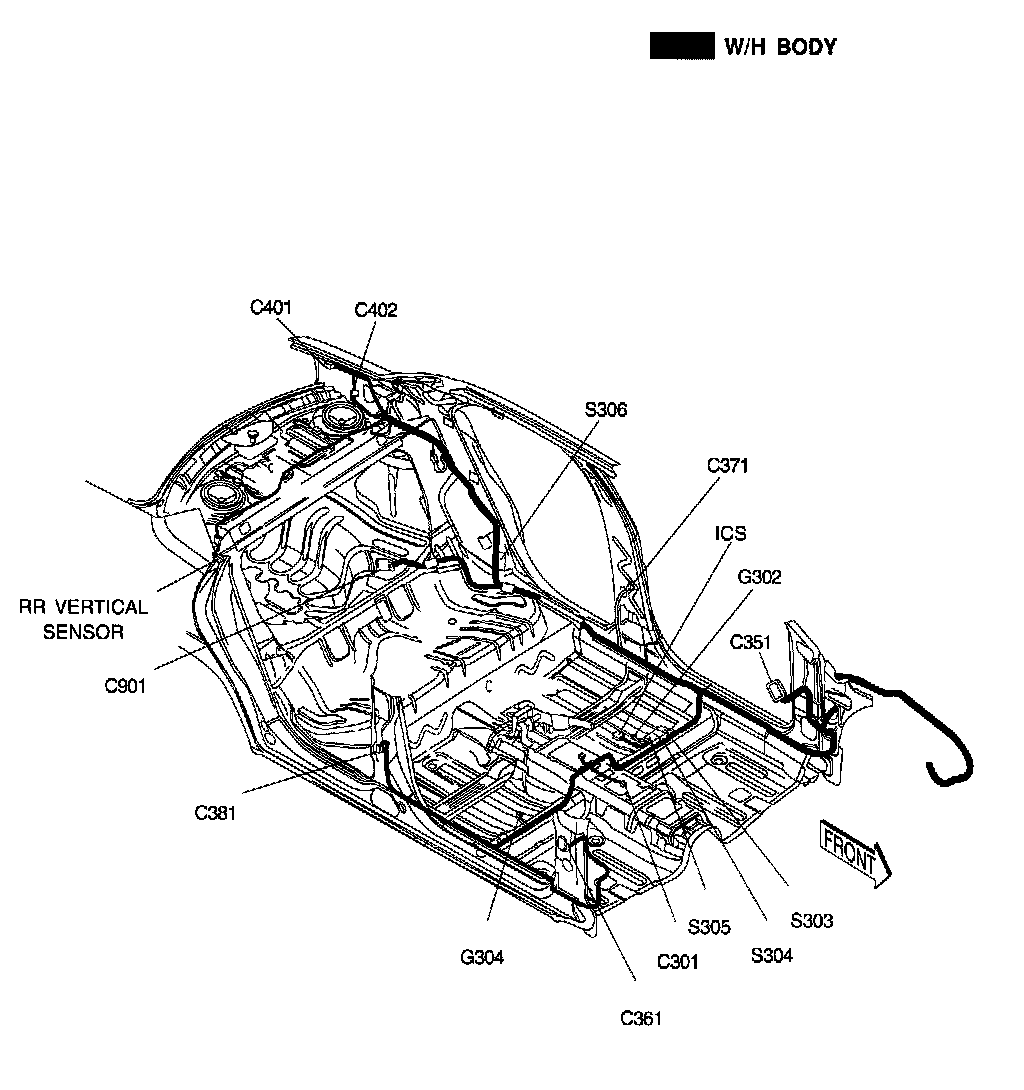

W/H Body:

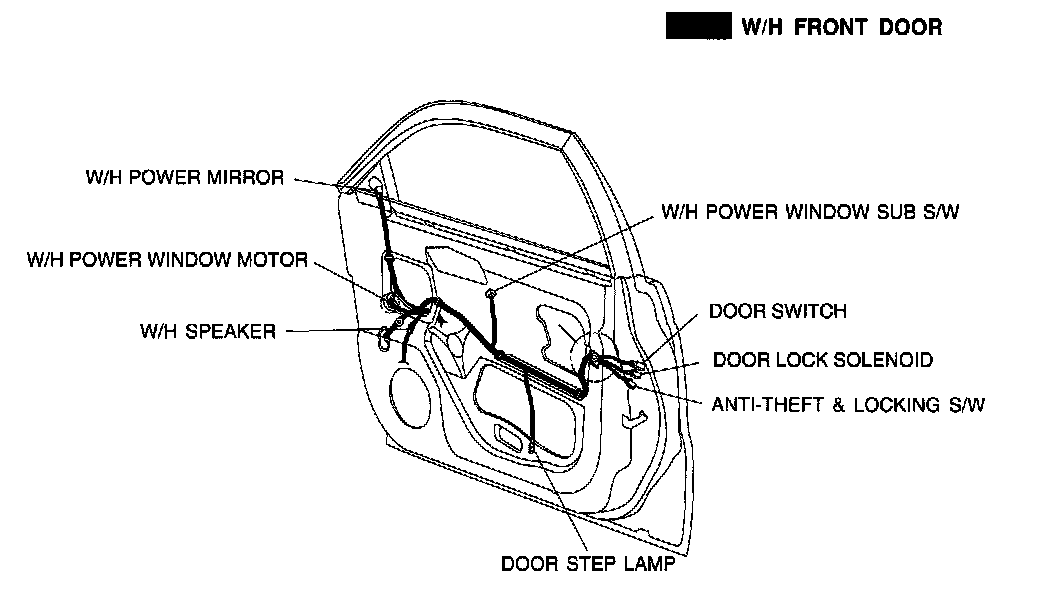

W/H Front Door (Right):

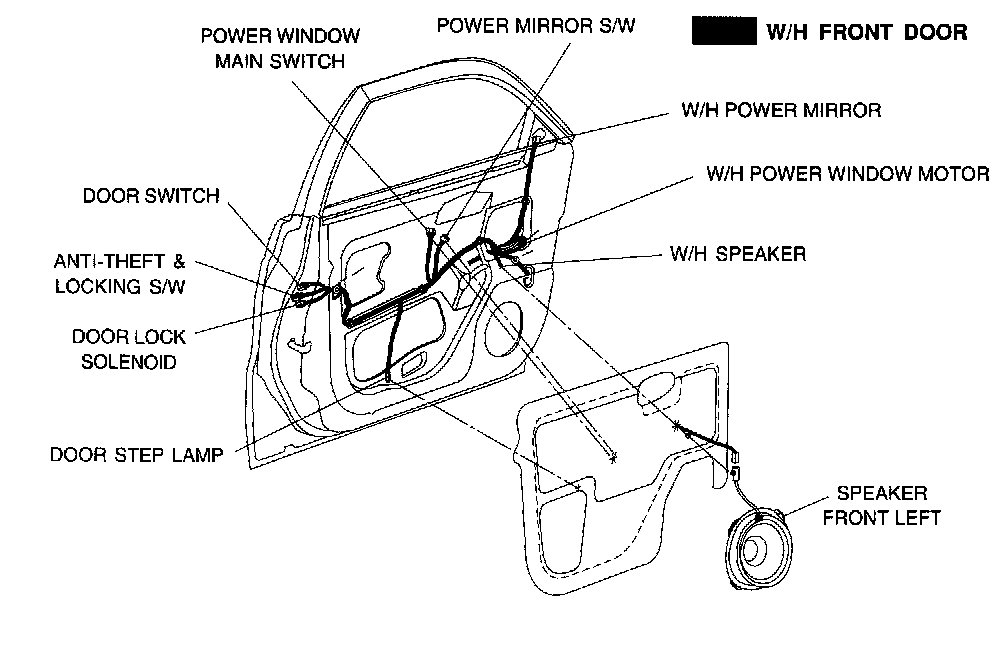

W/H Front Door (Left):

Rear Door (LH, RH):

W/H Roof:

Fuel Cut-off Switch Position:

W/H Front Bumper (Front):

W/H Front Bumper (Rear):

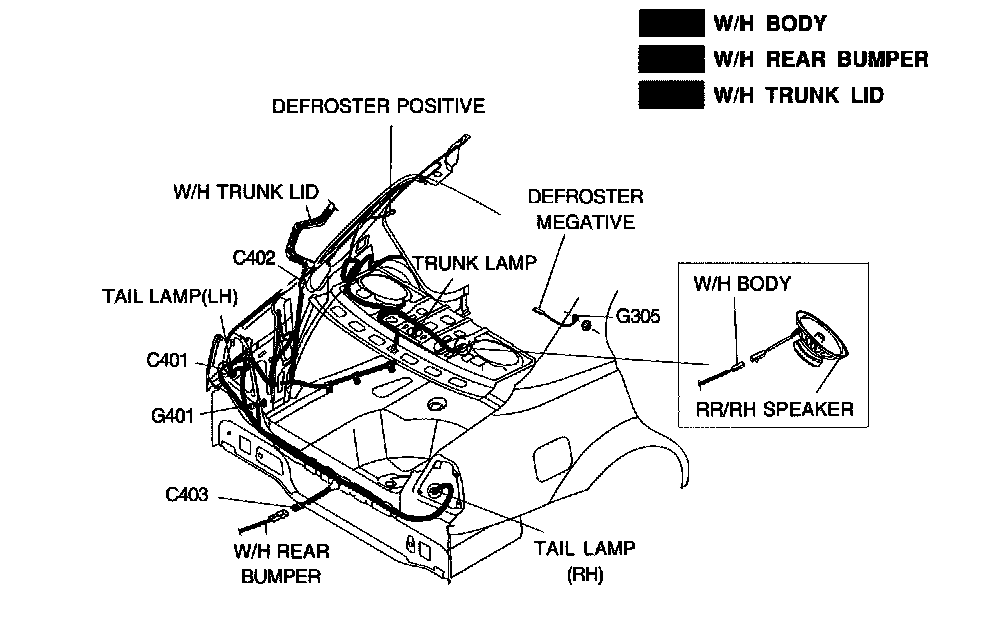

W/H Trunk (Trunk Compartment):

W/H Trunk (Trunk Lid):

W/H Fuel Tank:
