Air Conditioner Compressor Circuit

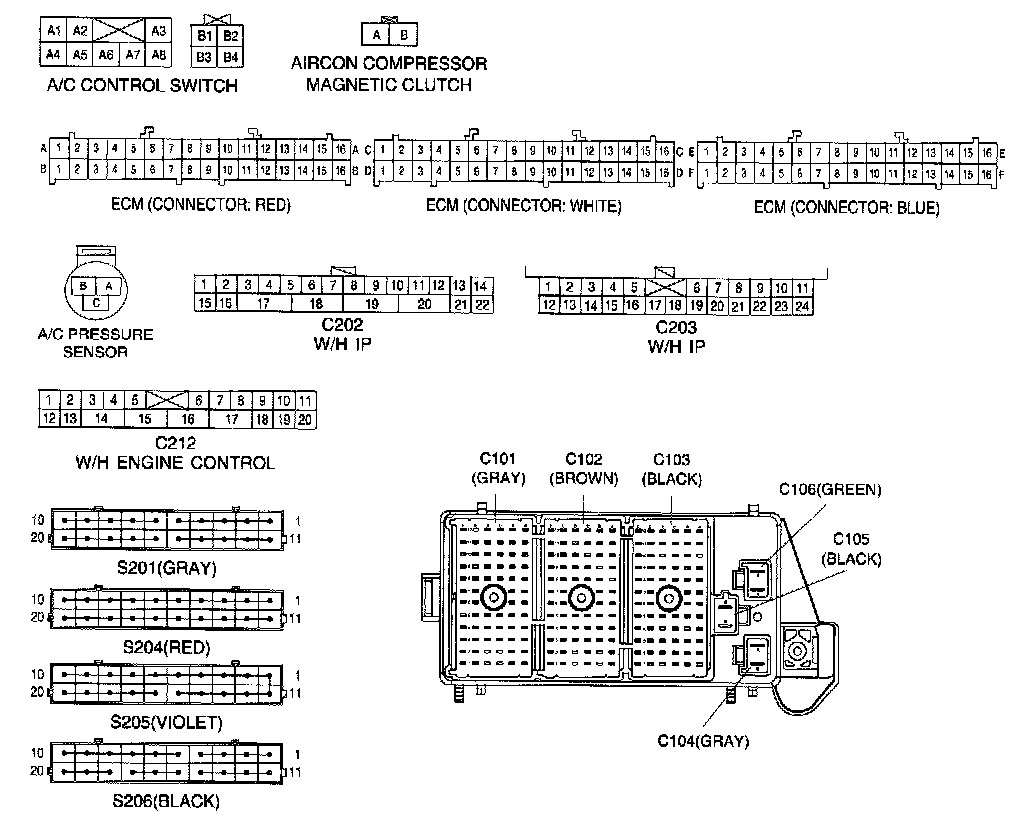

Connector Identification Symbol & Pin Number Position:

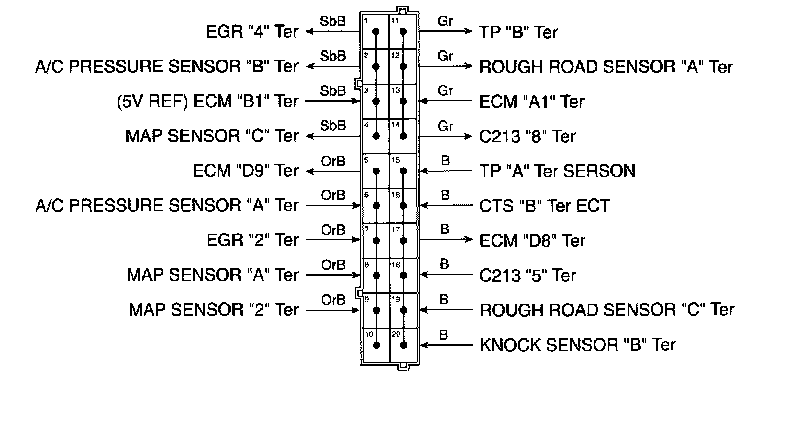

Splice Pack S201 (Gray):

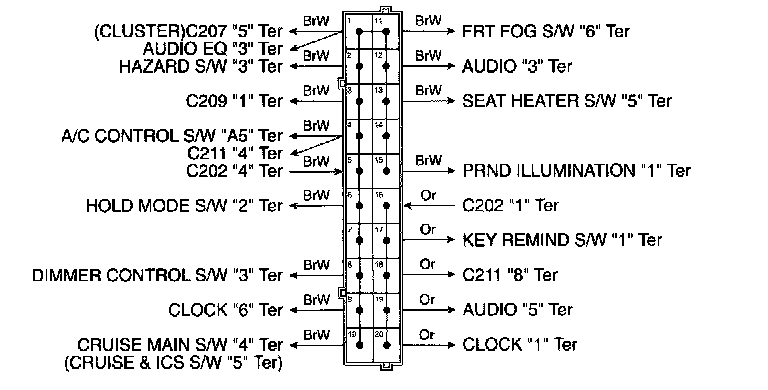

Splice Pack S204 (Red):

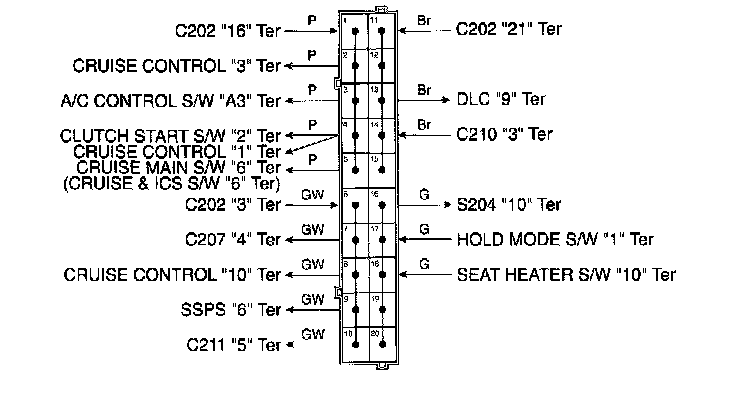

Splice Pack S205 (Violet):

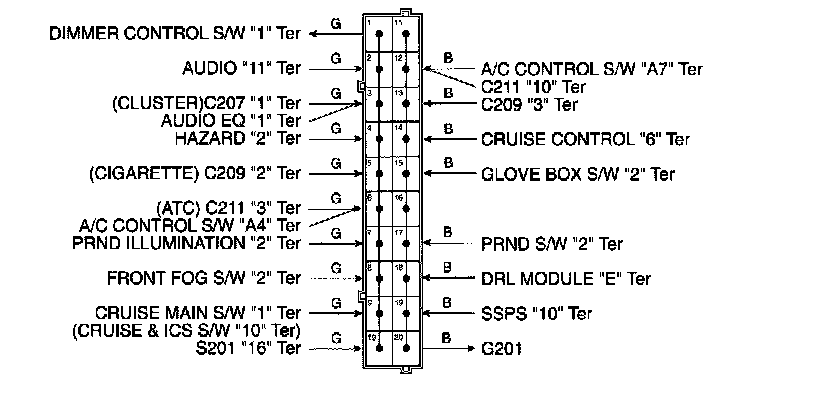

Splice Pack S206 (Black):
