Shift Indicator - A/T: Testing and Inspection

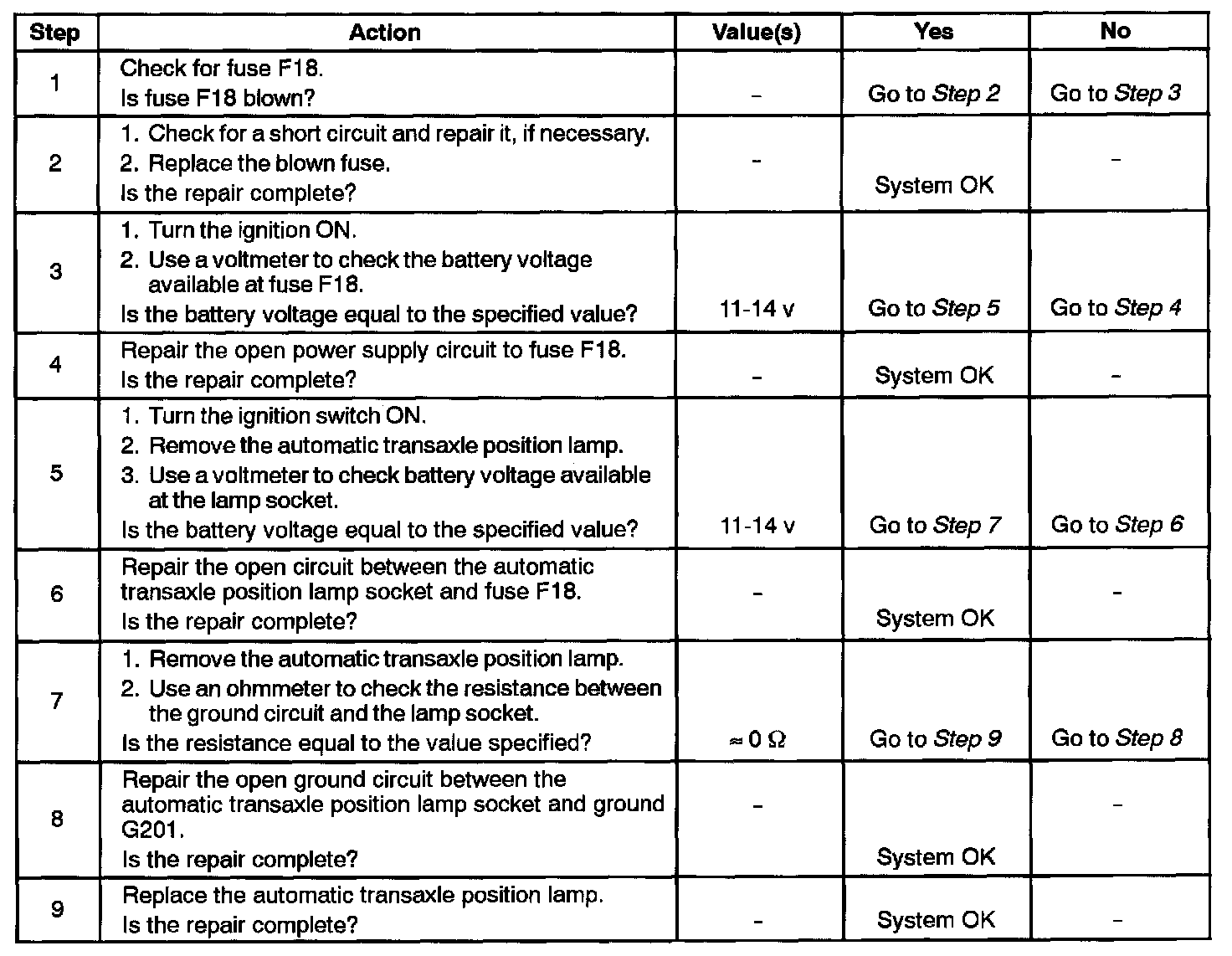

Automatic Transaxle Gear Position Illumination Lamp Inoperative, All Other Instrument Lamps OK Step 1 - 9:

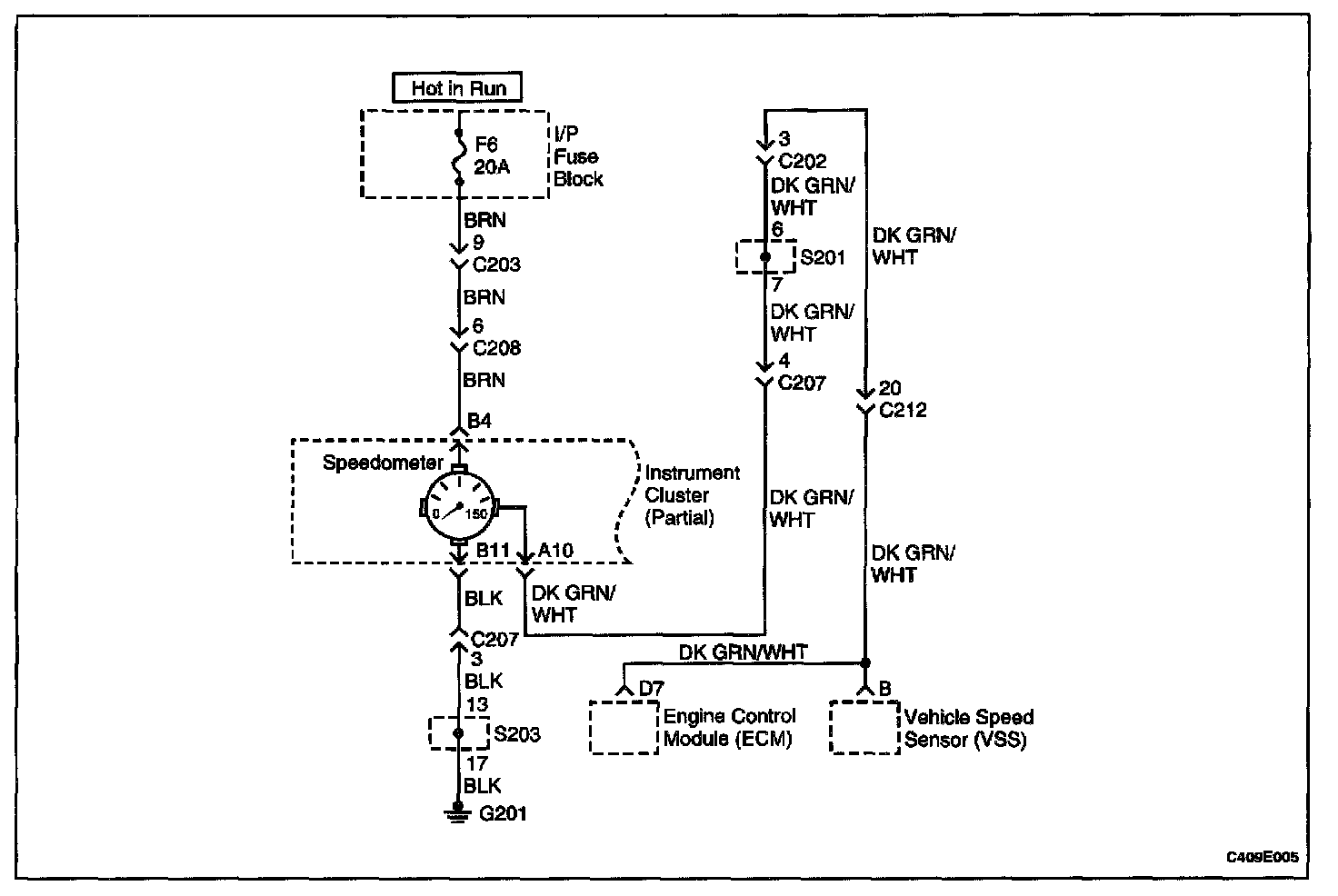

Wiring Diagram:
