License Plate, Parking, Marker & Tail Lamp Circuits
License Plate, Parking, Marker & Tail Lamp Circuits

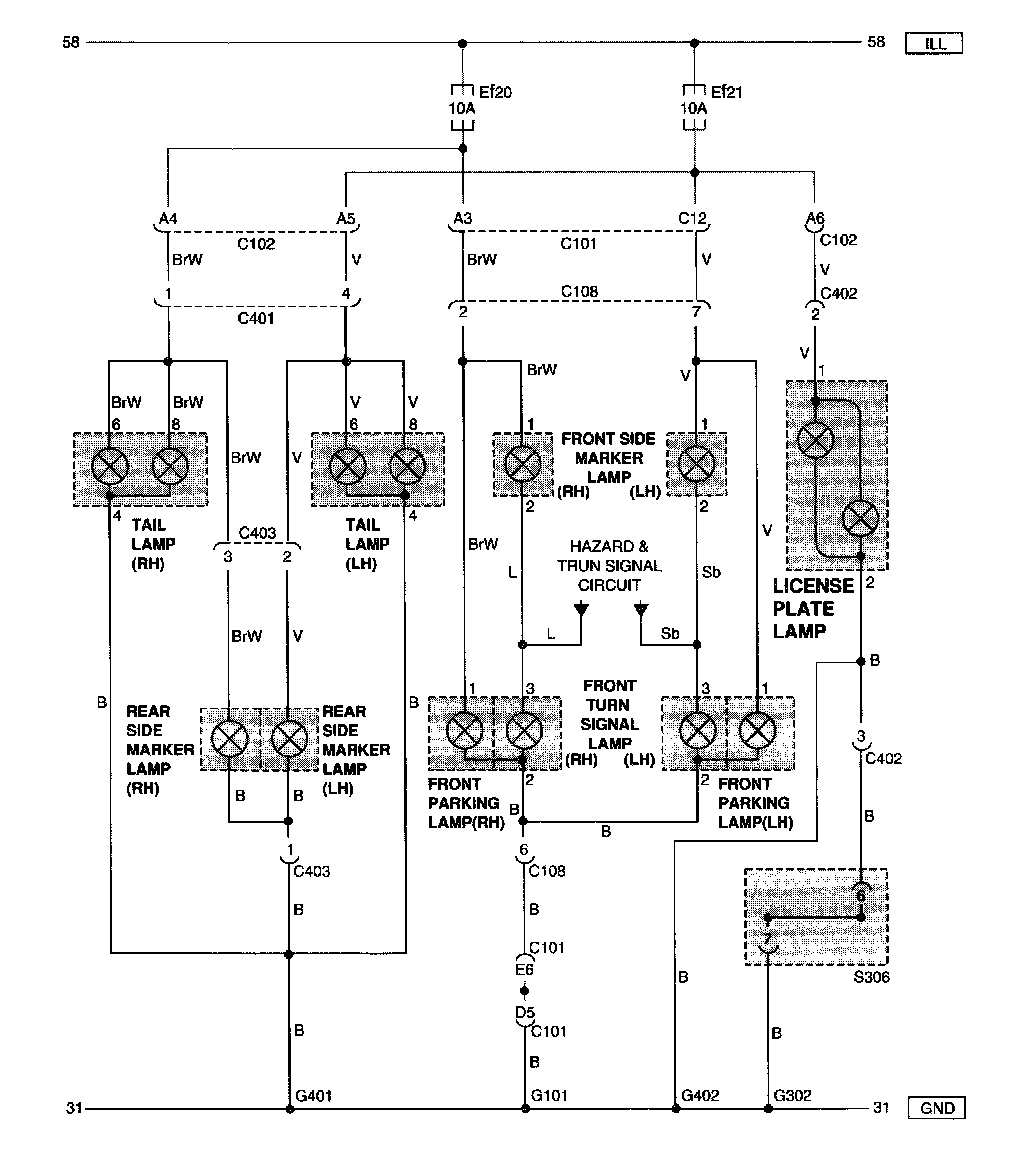

Wiring Diagram:
