Home >> Daewoo >> 2002 >> Leganza SE L4-2.2L DOHC D-TEC MFI >> Repair and Diagnosis >> Lighting and Horns >> Locations >> Splice Locations >> License Plate, Parking, Marker & Tail Lamp Circuits

License Plate, Parking, Marker & Tail Lamp Circuits

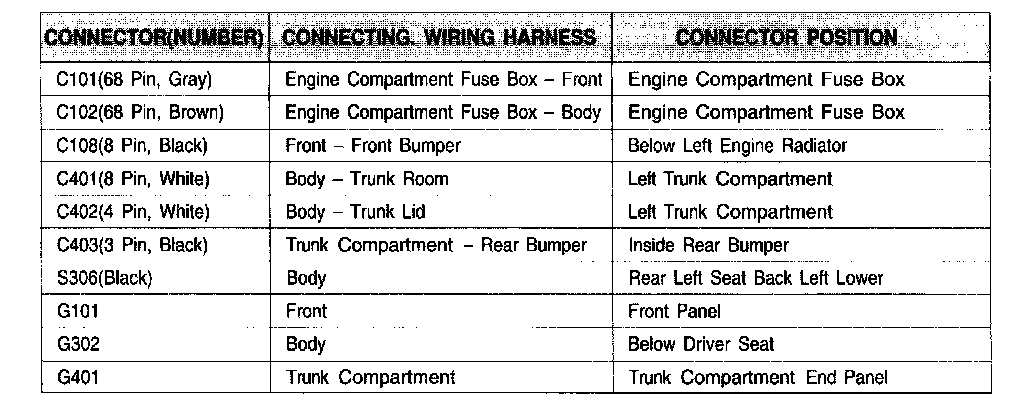

Connector Information Chart:
