Trunk Lamp: Service and Repair

Luggage Compartment Lamp




Removal Procedure

1. Disconnect the negative battery cable.

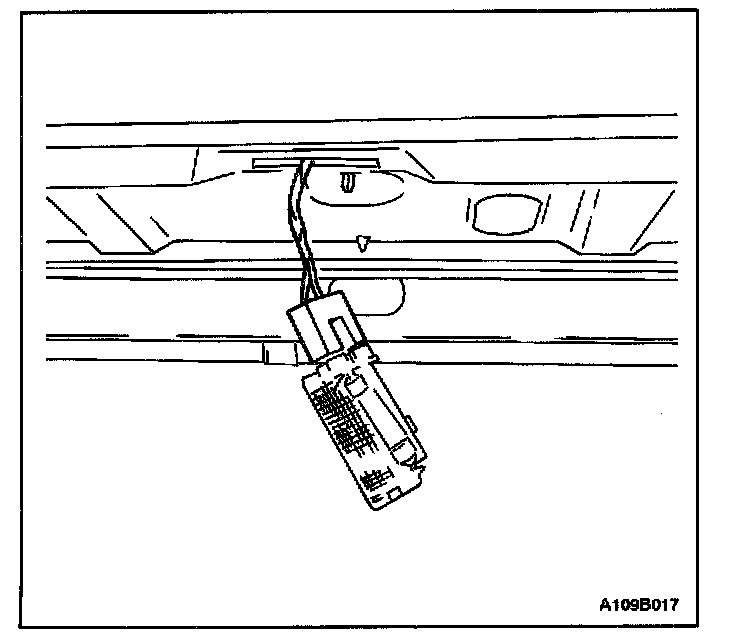

2. Remove the luggage compartment lamp.
3. Disconnect the electrical connector.
4. Remove the bulb.




Installation Procedure

1. Install the replacement bulb.
2. Connect the electrical connector.
3. Install the luggage compartment lamp.
4. Connect the negative battery cable.
