Battery Power Supply, Ground, EI, CMP Sensor & Circuits

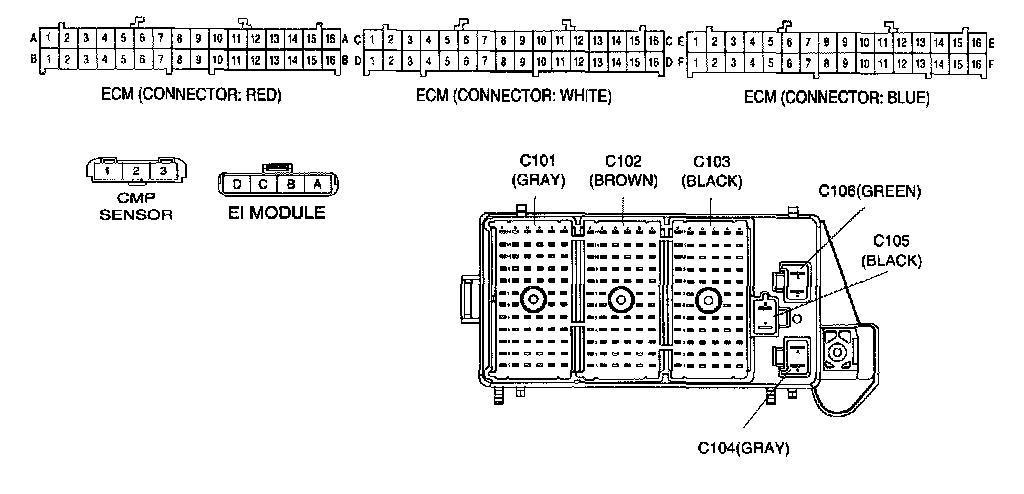

Connector Identification Symbol & Pin Number Position:
