MAP, A/C Pres,IAT,EGR,TP,ECT,Fuel Pres Sensors&Fuel Gauge Circ
MAP, A/C Pres,IAT,EGR,TP,ECT,Fuel Pres Sensors&Fuel Gauge Circ

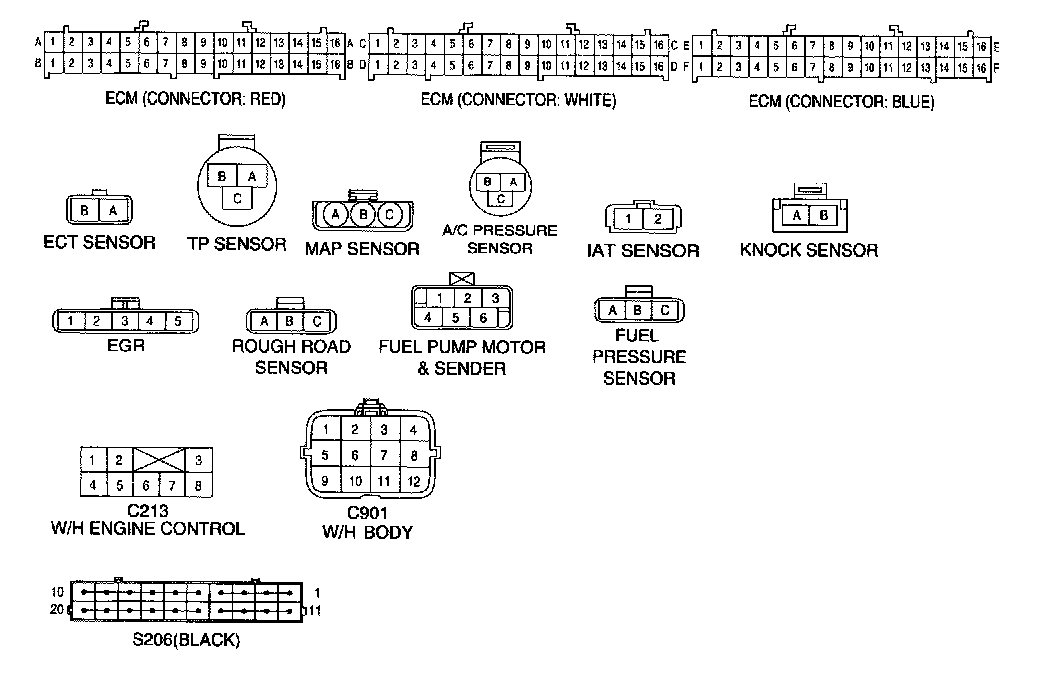

Connector Identification Symbol & Pin Number Position:

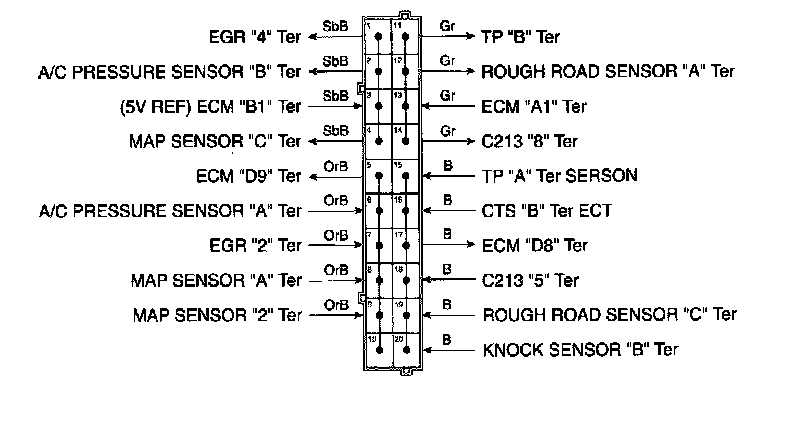

Splice Pack S206 (Black):
