Fuel Pump, Injector, IAC & Fuel Cut-Off Switch Circuits

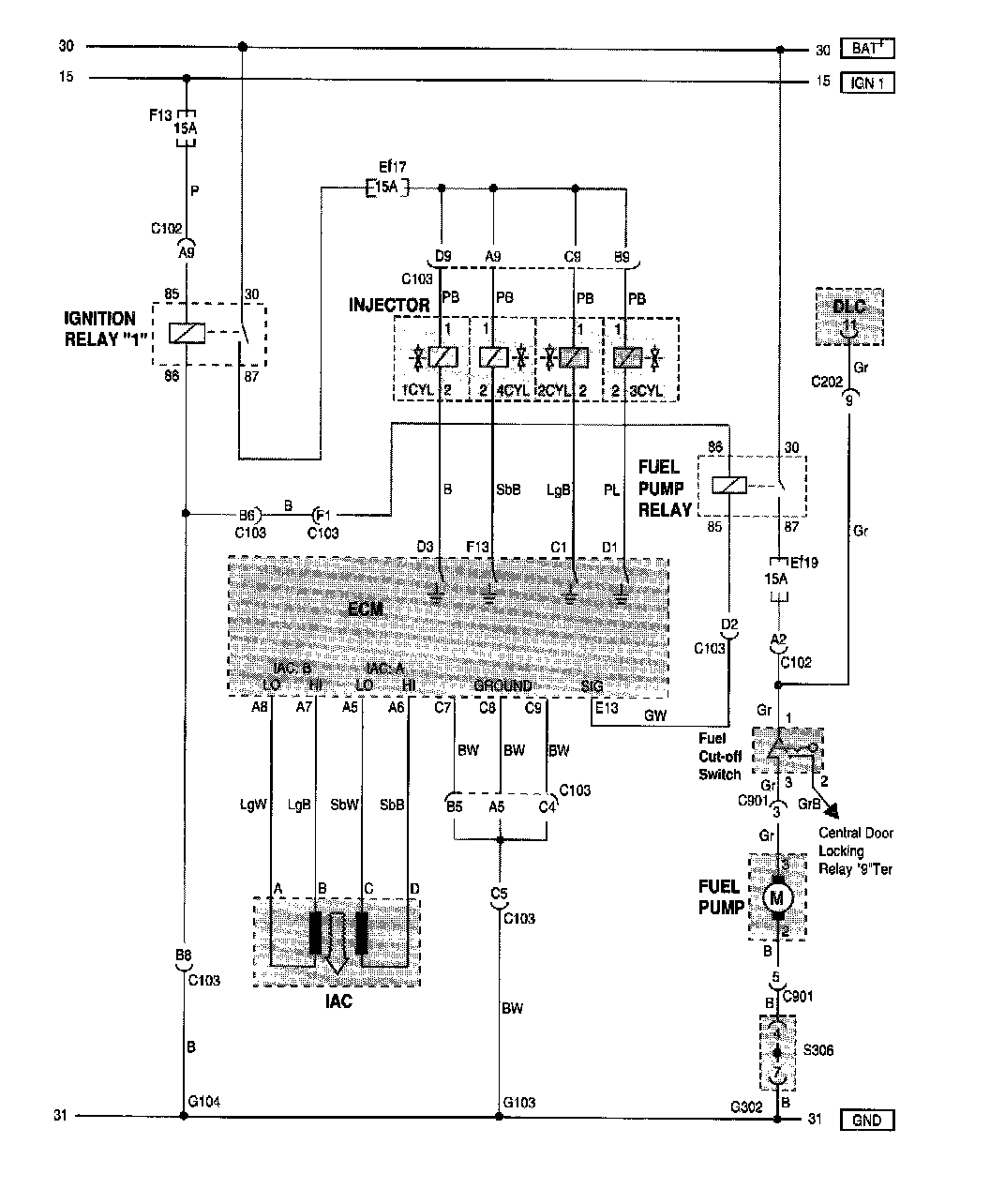

Fuel Pump, Injector, IAC & Fuel Cut-Off Switch Circuits
Wiring Diagram:
