Operation CHARM
: Car repair manuals for everyone.
Home
>>
Daewoo
>>
2002
>>
Leganza SE L4-2.2L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Locations
>>
Harness Locations
>>
MAP,A/C Pres Sens,IAT,EGR,TP,ECT,Fuel Pres Sens&Fuel Gauge Circ
MAP,A/C Pres Sens,IAT,EGR,TP,ECT,Fuel Pres Sens&Fuel Gauge Circ

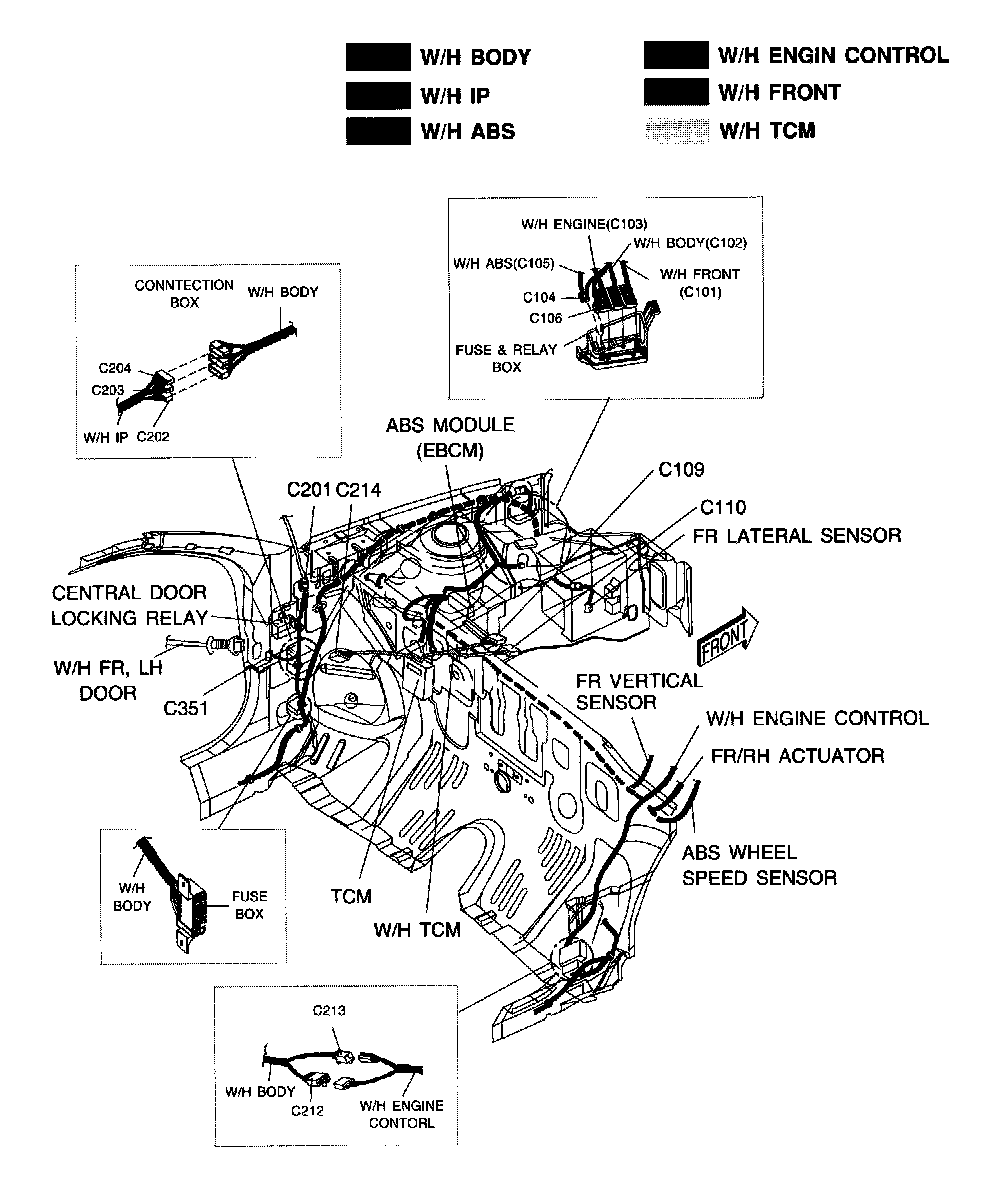

Position Of Connectors And Grounds (W/H Body, ABS & TCM):

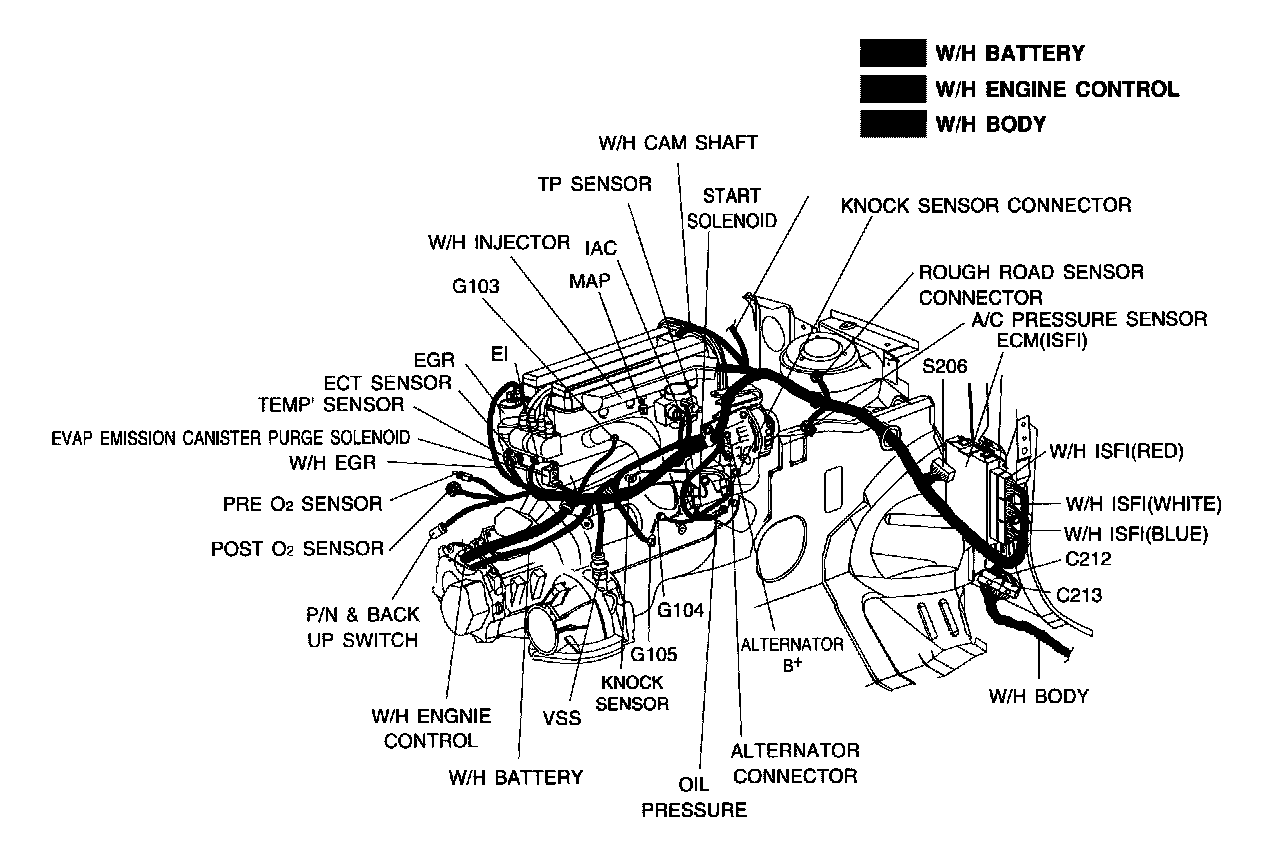

Position Of Connectors And Grounds (2.2 DOHC Engine):
