VSS, Meter (Speedo, Tacho) & Gauge (Fuel, Temperature) Circuit
Connector Identification Symbol & Pin Number Position:

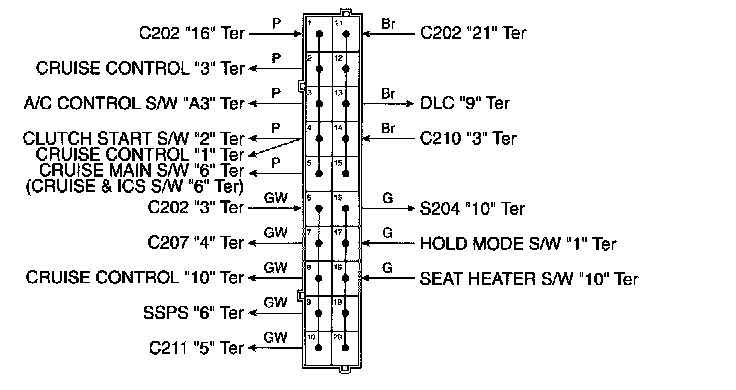

Splice Pack S201 (Gray):

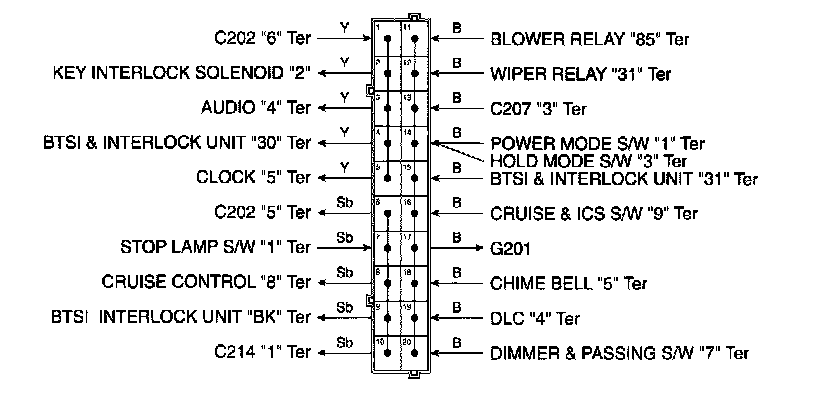

Splice Pack S202 (White):

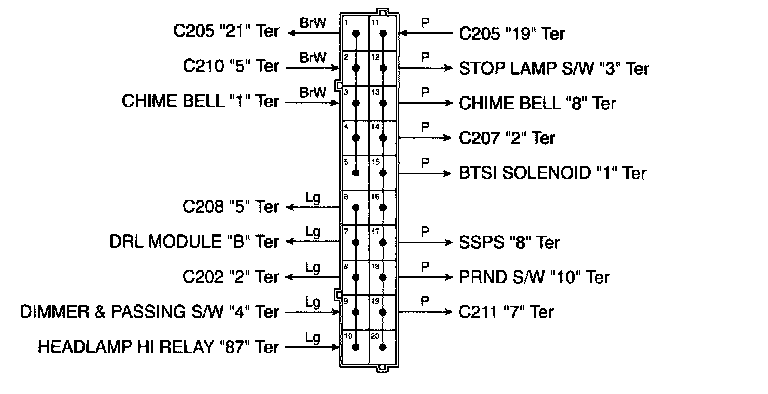

Splice Pack S203 (White):
