Radio, Stereo, and Compact Disc: Service and Repair

Stereo Cassette AM/FM Radio

Removal Procedure




1. Disconnect the negative battery cable.

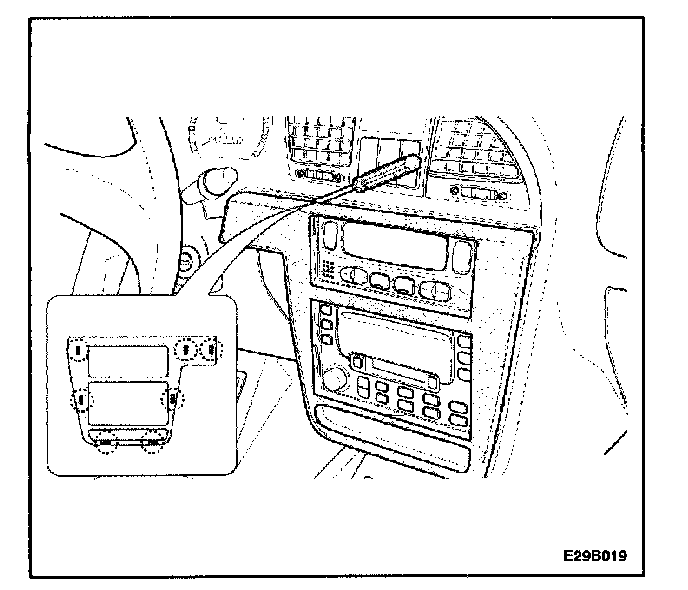

2. Remove the audio system trim plate.




3. Remove the screws and the audio system.

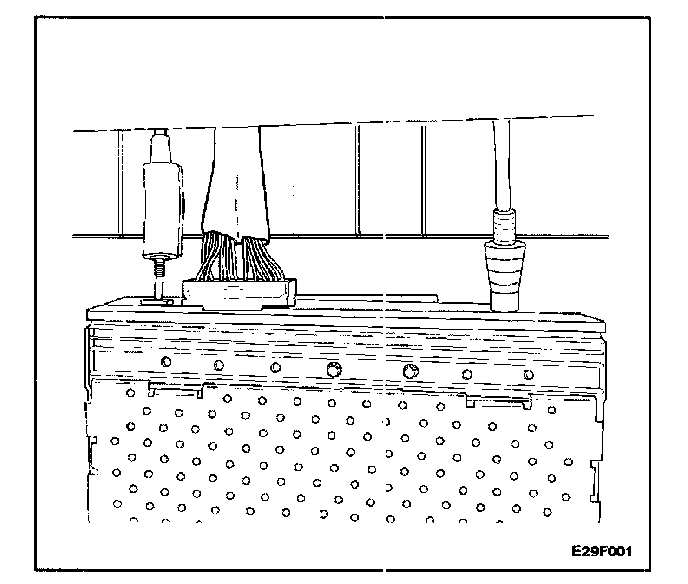

4. Disconnect the audio system electrical connector and the antenna cable.

Installation Procedure




1. Connect the audio system electrical connector and the antenna cable.




2. Install the audio system with the screws.

Tighten
Tighten the audio system screws to 4 N.m (35 lb-in).

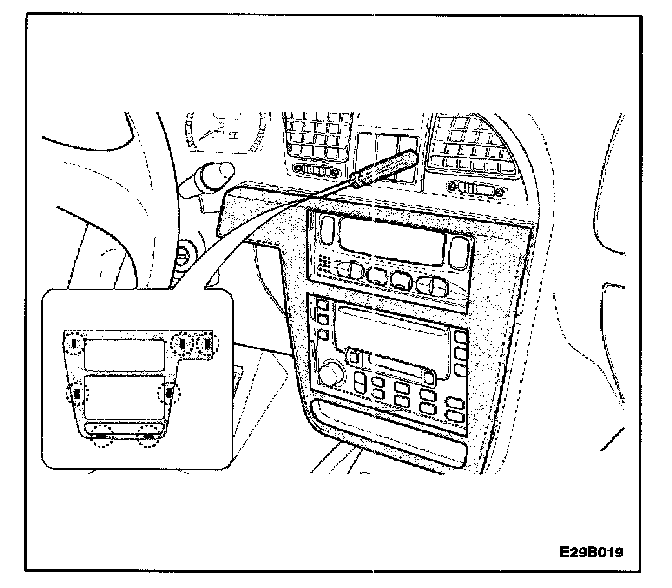

3. Install the audio system trim plate.
4. Connect the negative battery cable.
5. Enter the security code. Refer to "Audio Security System".
